Lincoln
›
2013
›
MKT Base, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Audio System/Navigation
›
Notes
Audio System/Navigation: Notes

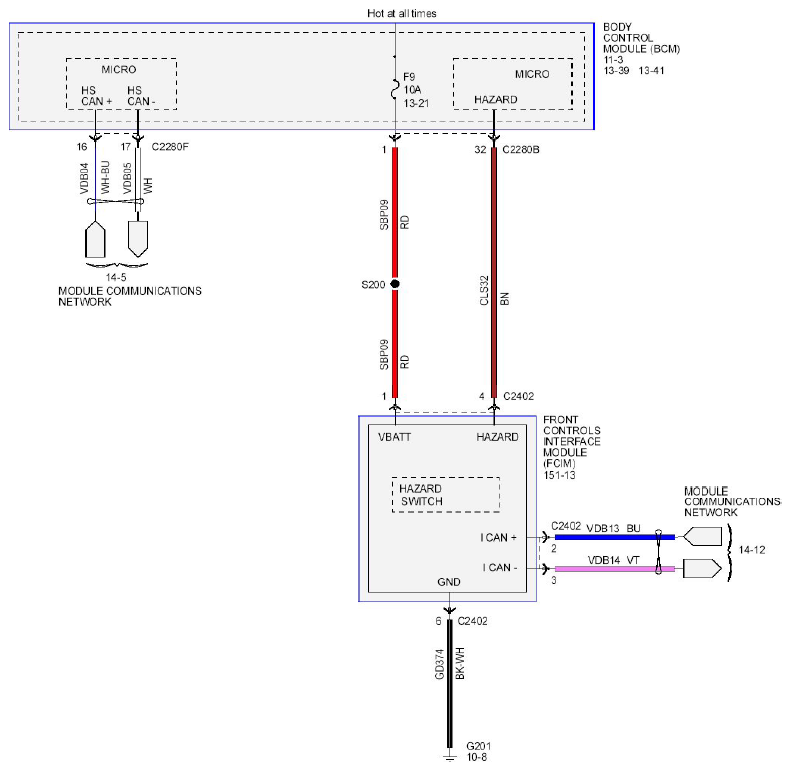

Fig 1: Audio System/Navigation - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

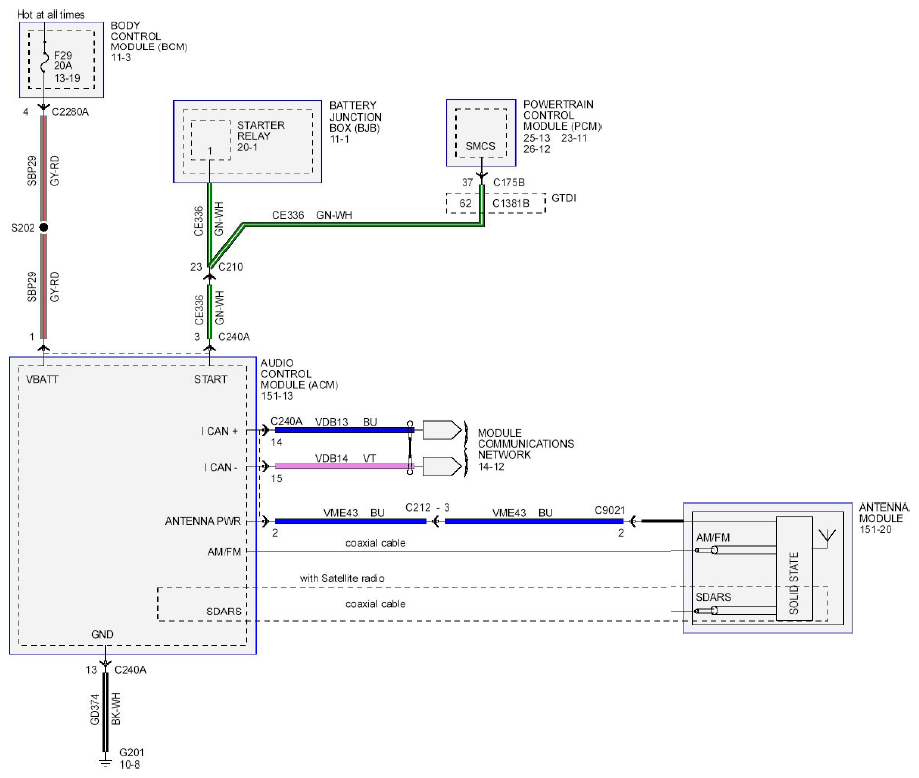

Fig 2: Audio System/Navigation - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

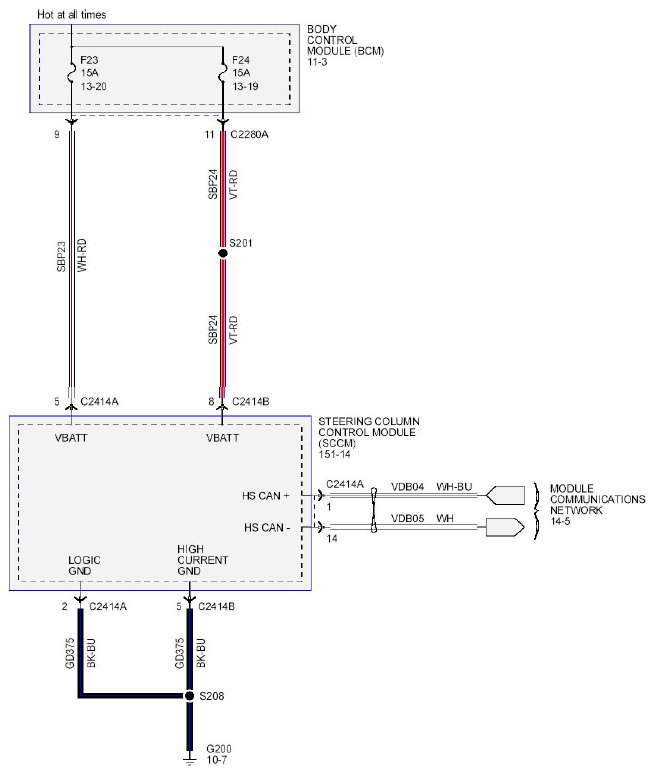

Fig 3: Audio System/Navigation - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

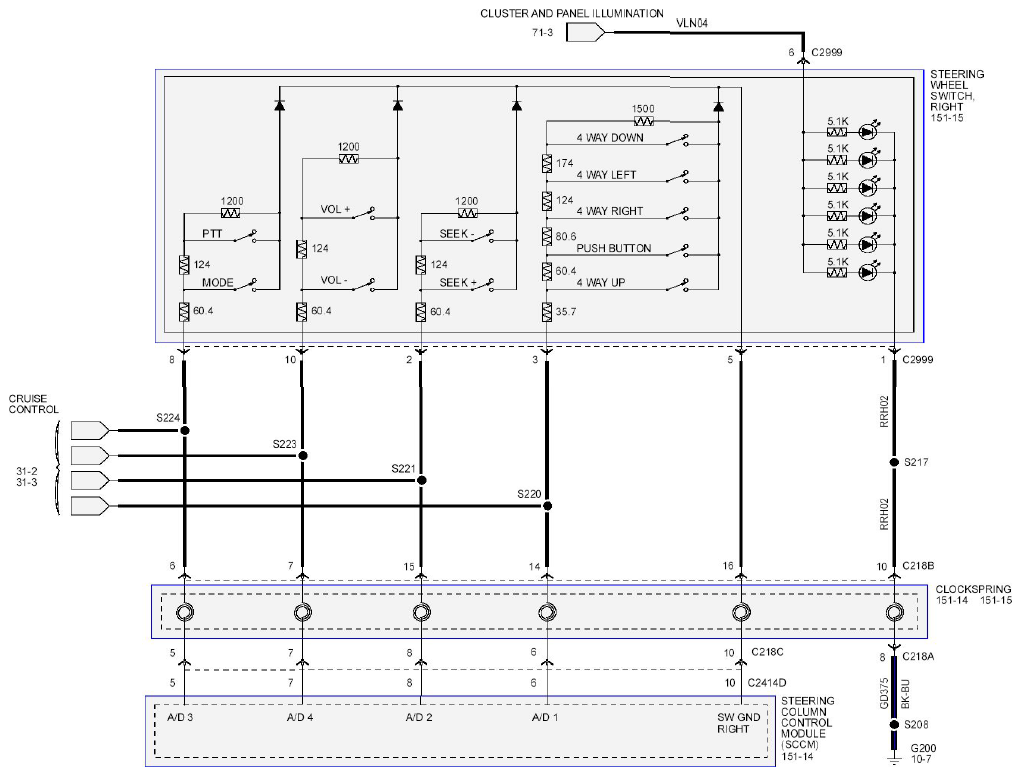

Fig 4: Audio System/Navigation - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
