Cruise Control
›
Notes
Cruise Control: Notes

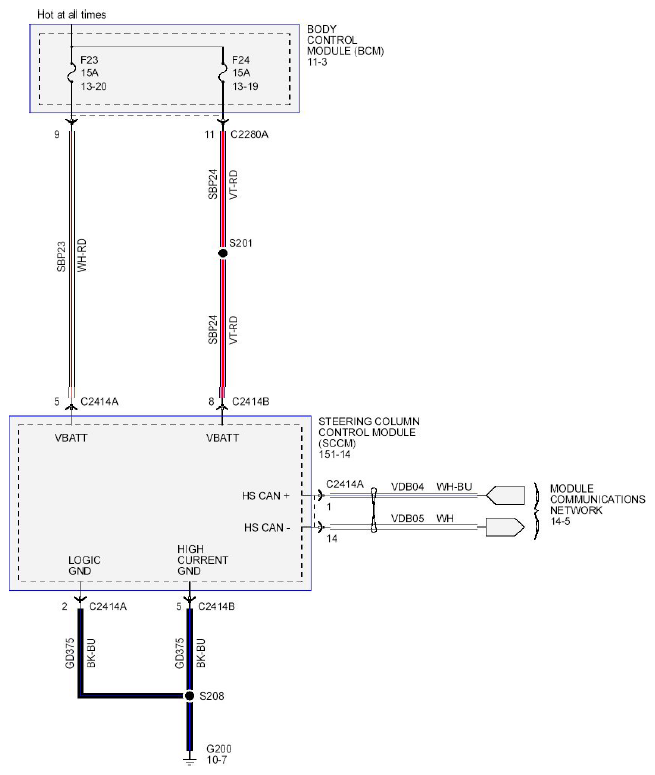

Fig 1: Cruise Control - Wiring Diagram(1 Of 2)
Courtesy of FORD MOTOR CO.

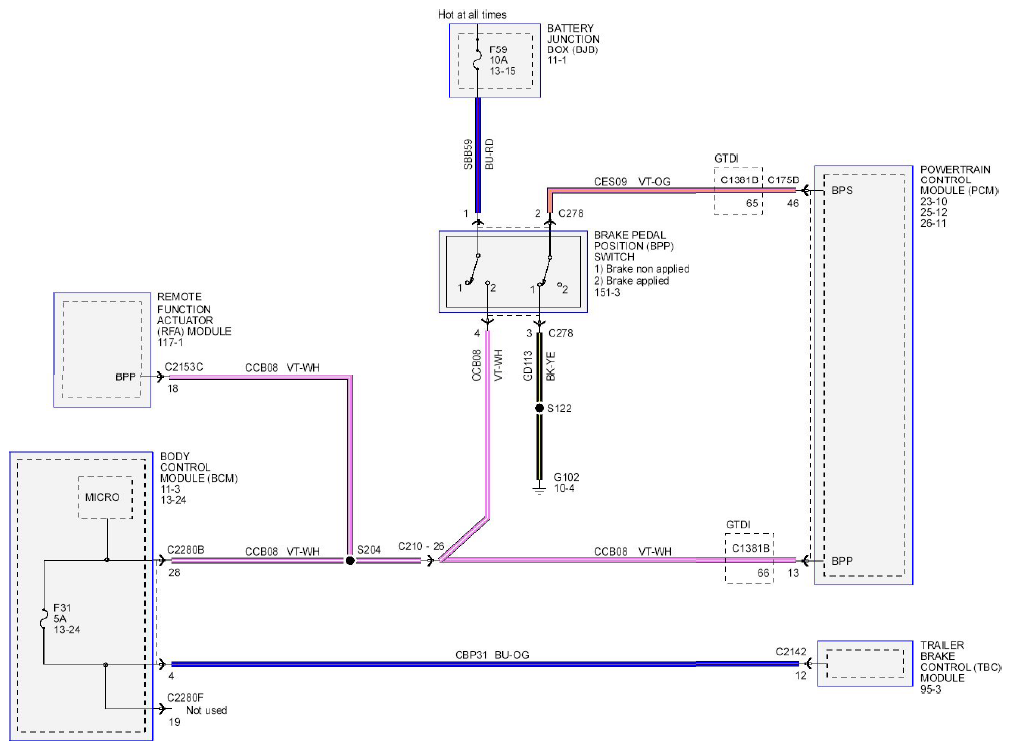

Fig 2: Cruise Control - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
