Power Distribution: Notes

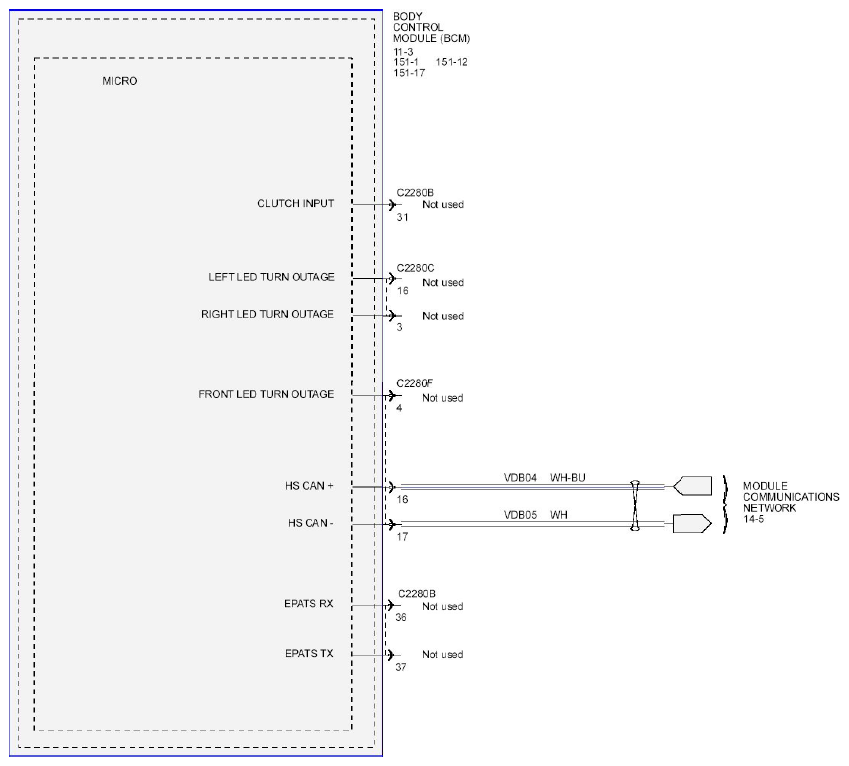

Fig 1: Power Distribution - Wiring Diagram (1 Of 7)

Courtesy of FORD MOTOR CO.

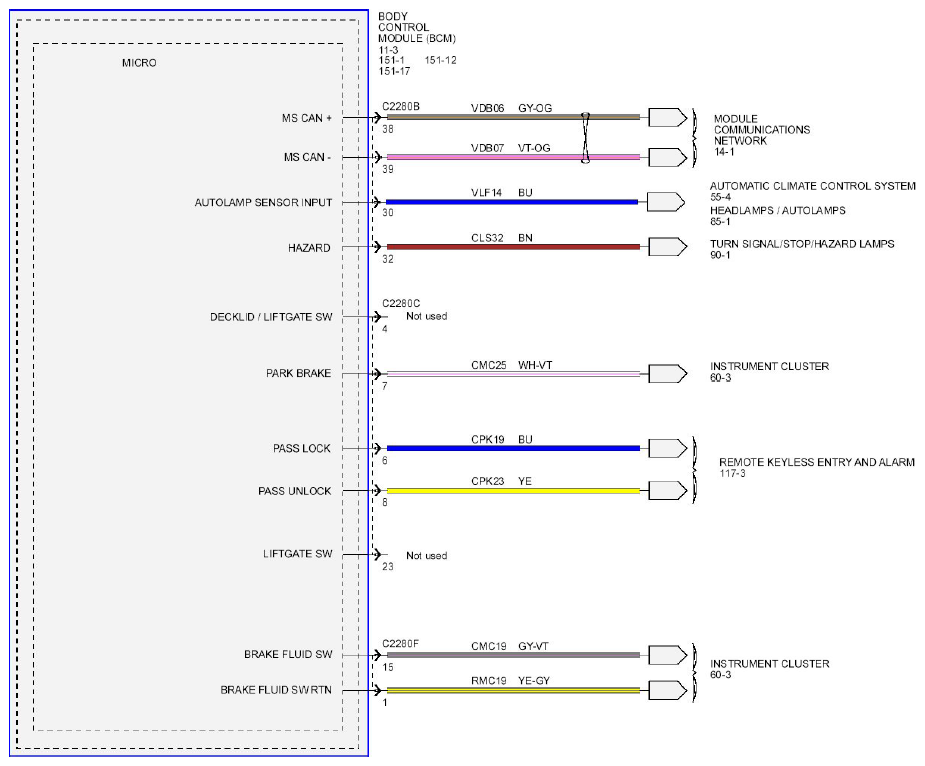

Fig 2: Power Distribution - Wiring Diagram (2 Of 7)

Courtesy of FORD MOTOR CO.

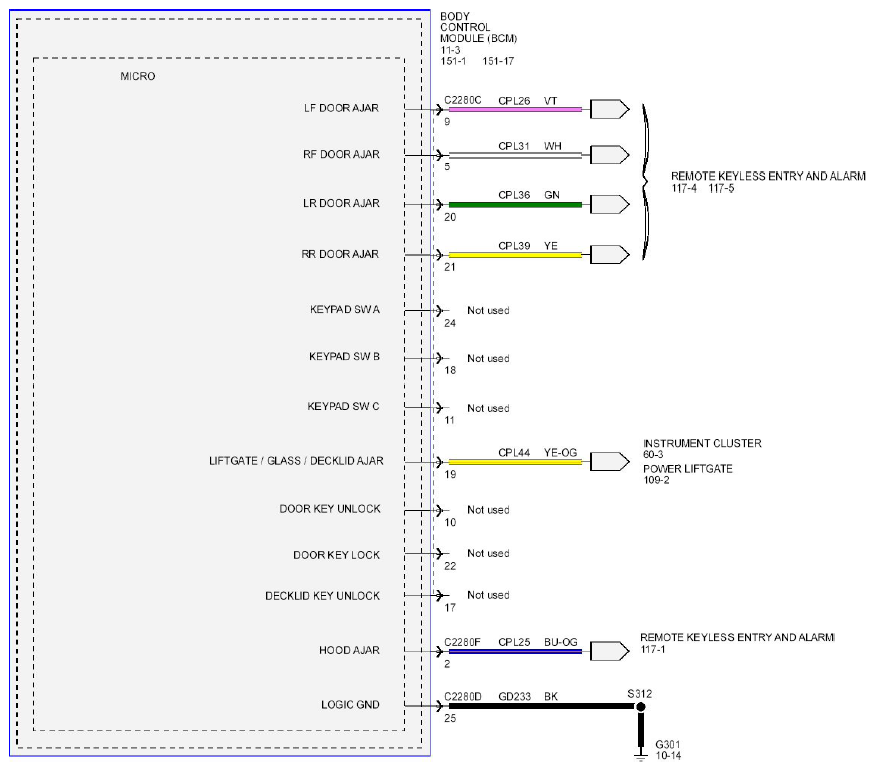

Fig 3: Power Distribution - Wiring Diagram (3 Of 7)

Courtesy of FORD MOTOR CO.

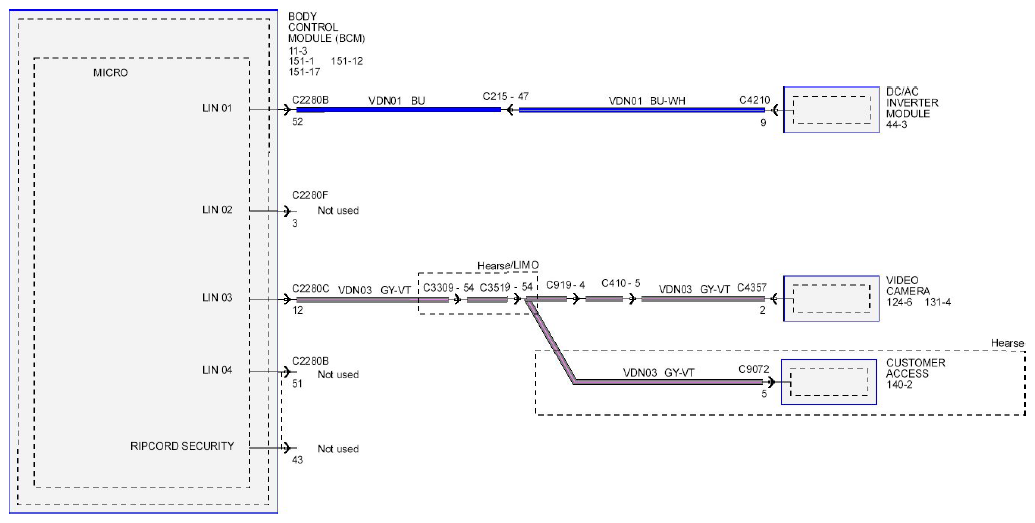

Fig 4: Power Distribution - Wiring Diagram (4 Of 7)

Courtesy of FORD MOTOR CO.

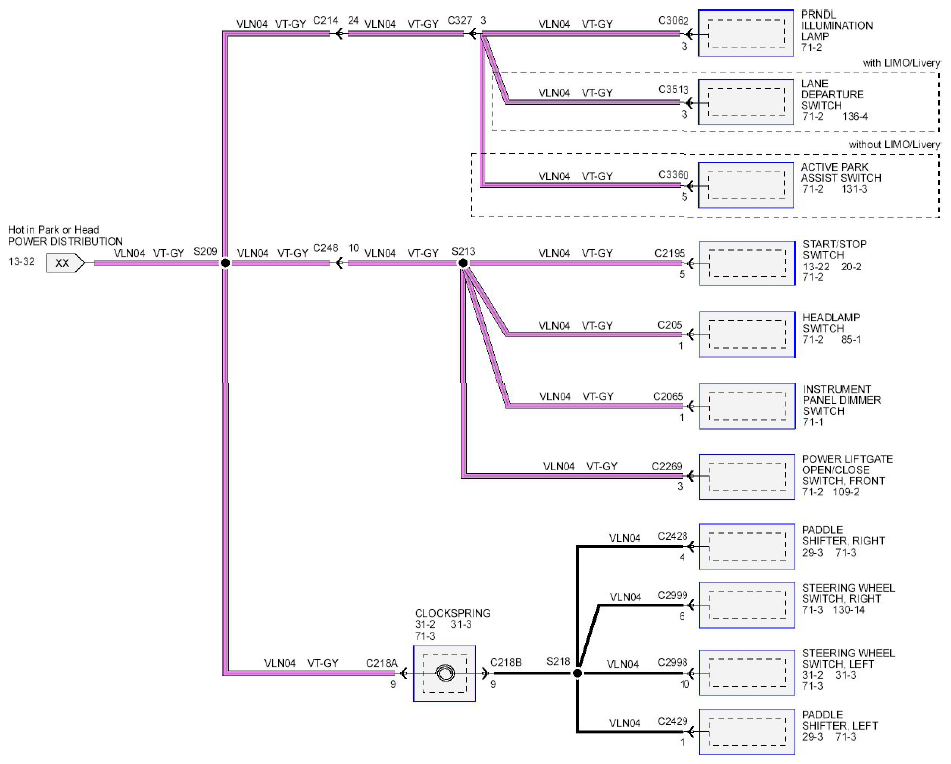

Fig 5: Power Distribution - Wiring Diagram (5 Of 7)

Courtesy of FORD MOTOR CO.

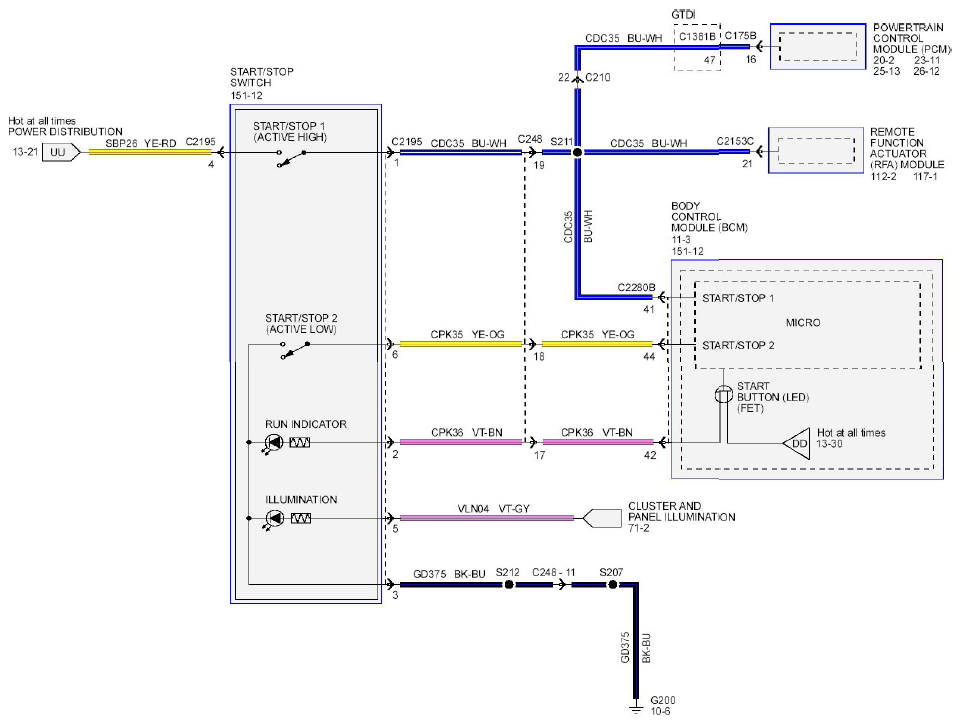

Fig 6: Power Distribution - Wiring Diagram (6 Of 7)

Courtesy of FORD MOTOR CO.

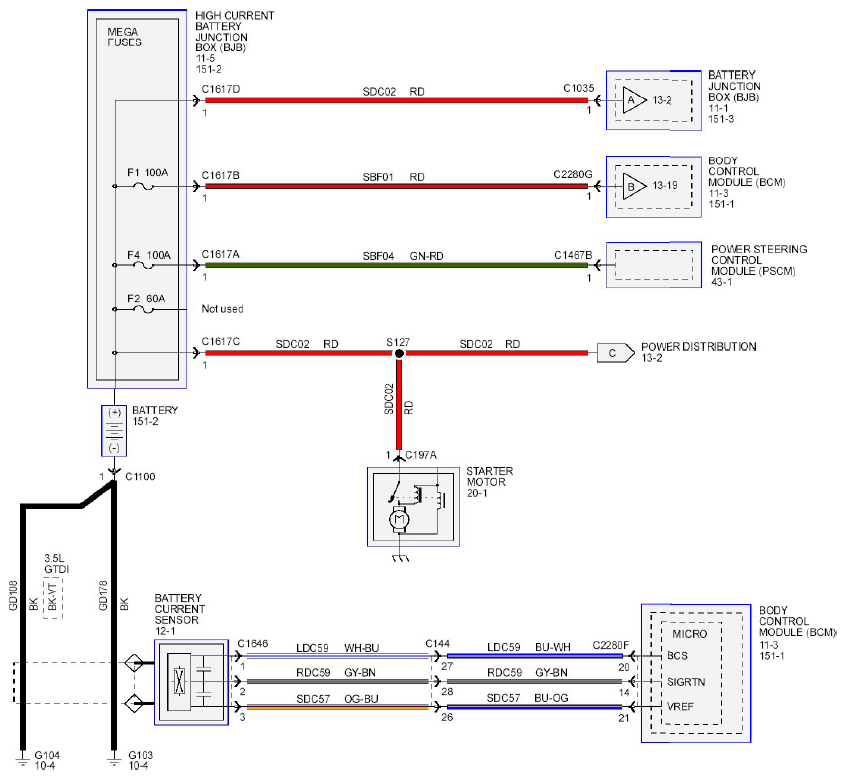

Fig 7: Power Distribution - Wiring Diagram (7 Of 7)

Courtesy of FORD MOTOR CO.
