Vehicle Dynamic Systems: Notes

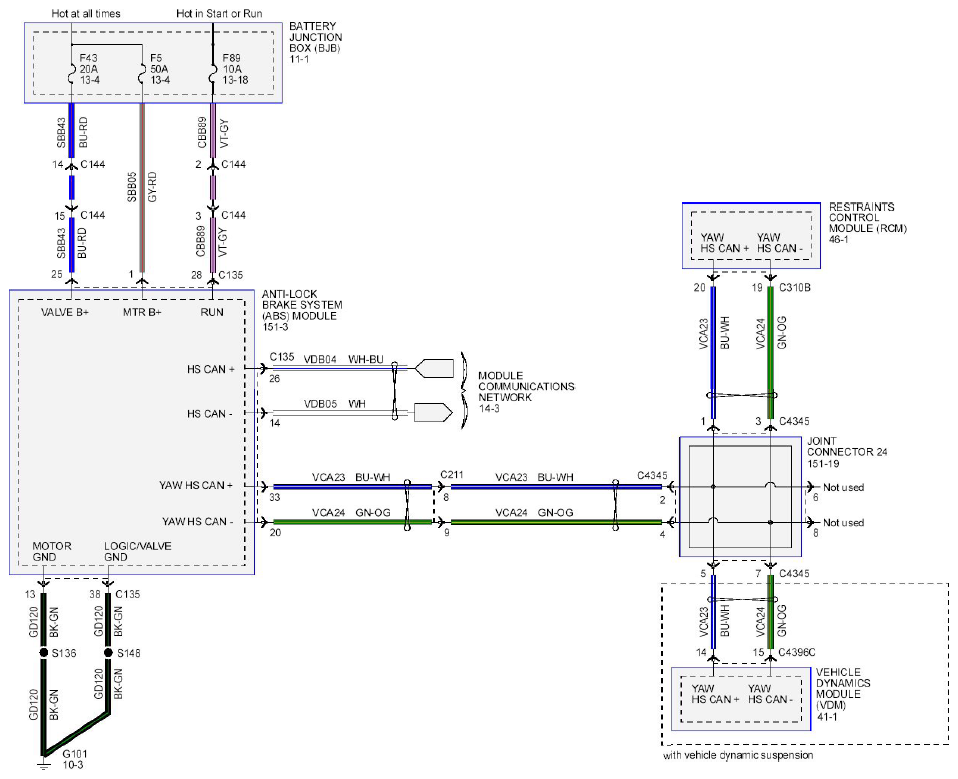

Fig 1: Vehicle Dynamic Systems - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

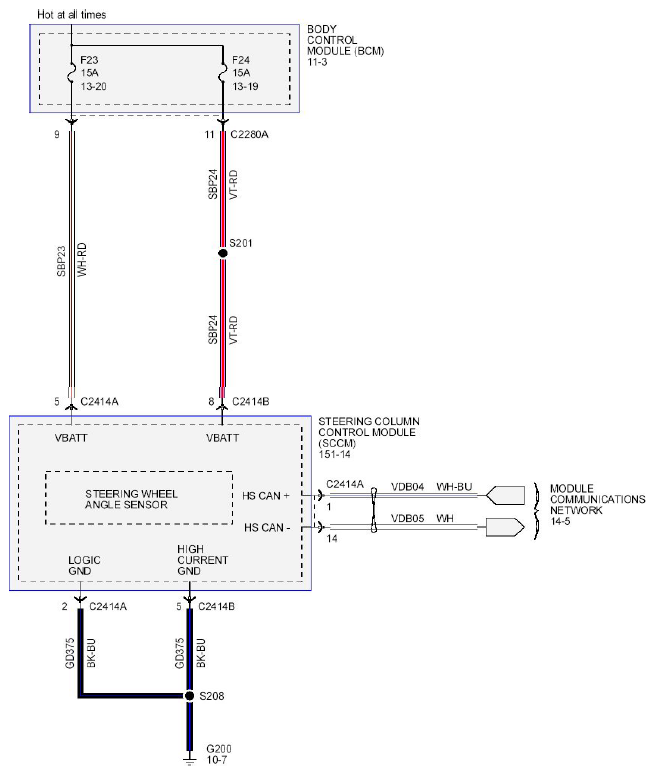

Fig 2: Vehicle Dynamic Systems - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

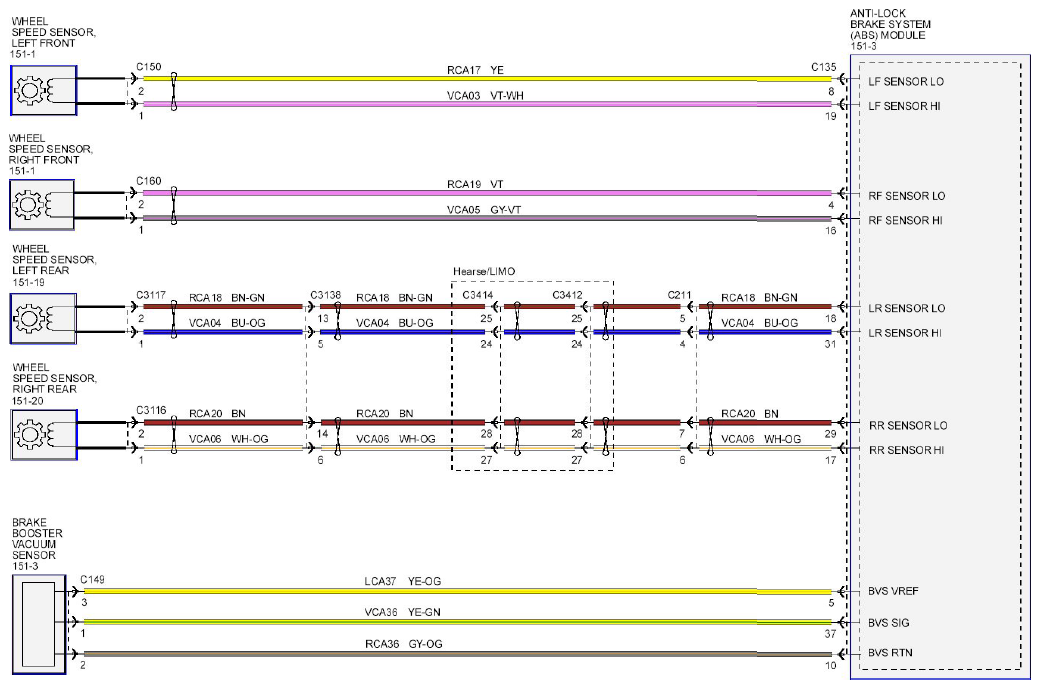

Fig 3: Vehicle Dynamic Systems - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
