OEM Ground Distribution: Grounds: G201

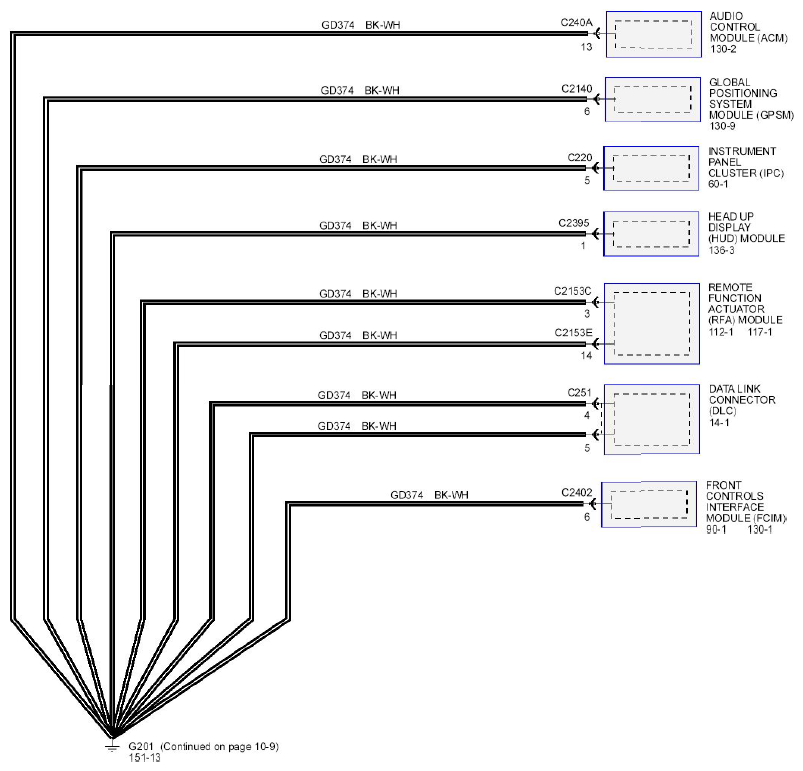

Fig 1: Ground System Wiring Diagram - G201 (1 Of 2)
G09081644Courtesy of FORD MOTOR CO.

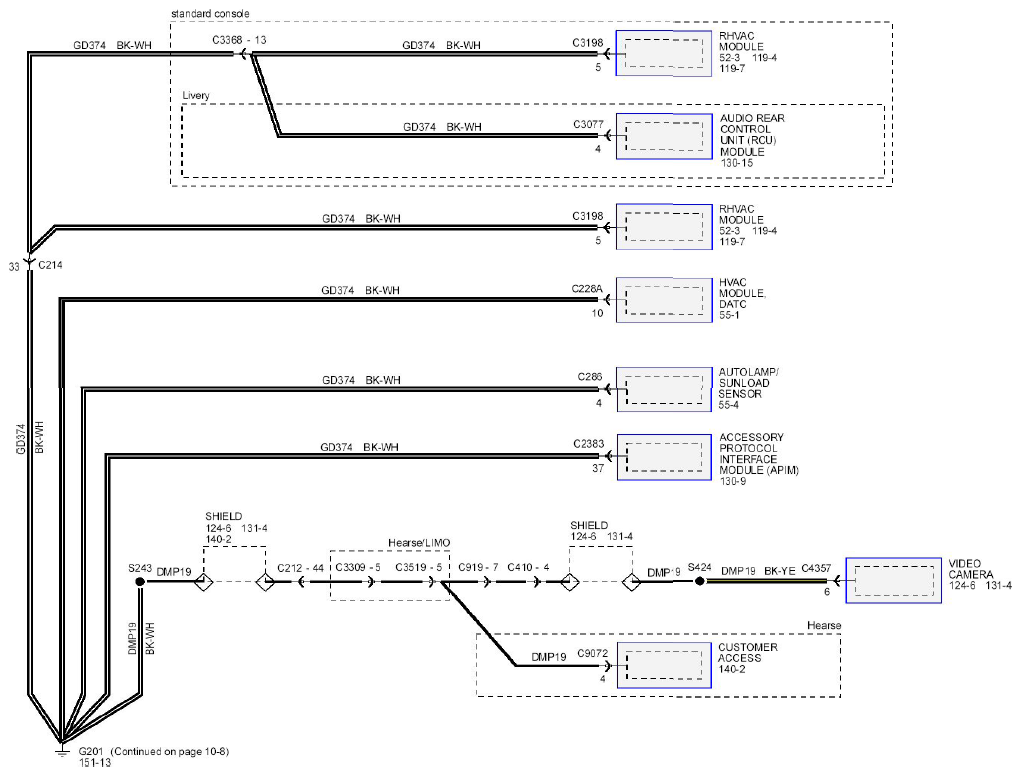

Fig 2: Ground System Wiring Diagram - G201 (2 Of 2)
G09081645Courtesy of FORD MOTOR CO.
