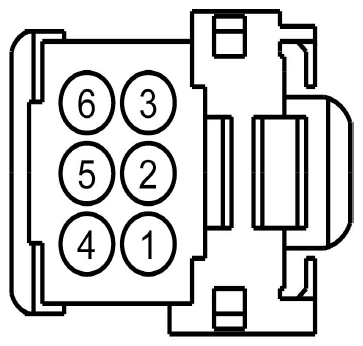

Start/Stop Switch Connector End View (C2195)

Fig 1: Identifying Start/Stop Switch Connector (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK34 (BN-VT)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1
2	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
3	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT
4	SBP28 (GN-RD)	20	FUSE - 28 OR CIRCUIT BREAKER
5	VLN04 (VT-GY)	20	CTRL MOD. - IP/SWITCH ILLUMINATION
6	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2

Available Pigtail Kits

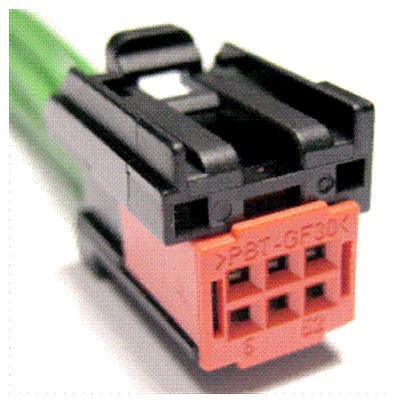

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

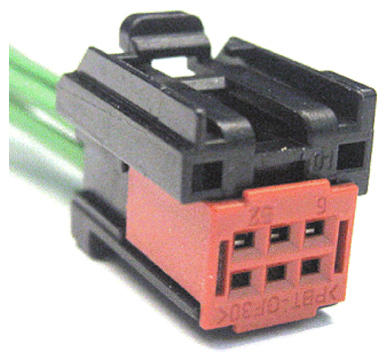

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
