Starter Motor - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission shift cable adjustment lock (part of 7E395) |
| 2 | 7H181 | Transmission shift cable rotating slide snap |
| 3 | W711892 | Transmission manual control lever nut |
| 4 | 7A256 | Transmission manual control lever |

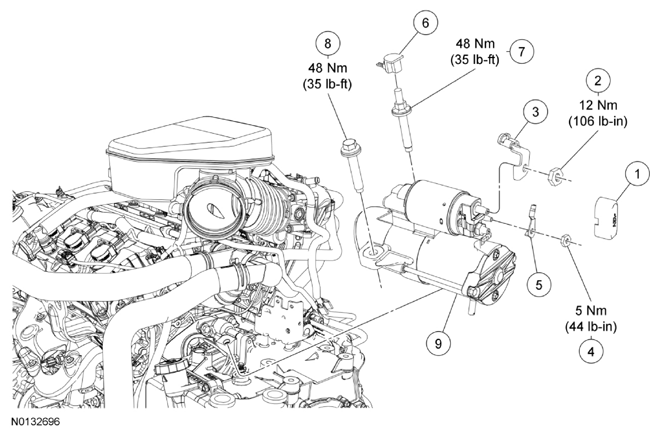

| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Starter motor solenoid battery cable terminal cover |
| 2 | W706414 | Starter motor solenoid battery cable nut |
| 3 | - | Starter motor solenoid battery cable terminal (part of 14300) |
| 4 | W705790 | Starter motor solenoid wire nut |
| 5 | - | Starter motor solenoid wire terminal (part of 14300) |
| 6 | - | Wire harness retainer (part of 14300) |
| 7 | W711515 | Starter motor stud bolt |
| 8 | W503320 | Starter motor bolt |
| 9 | 11002 | Starter motor |
