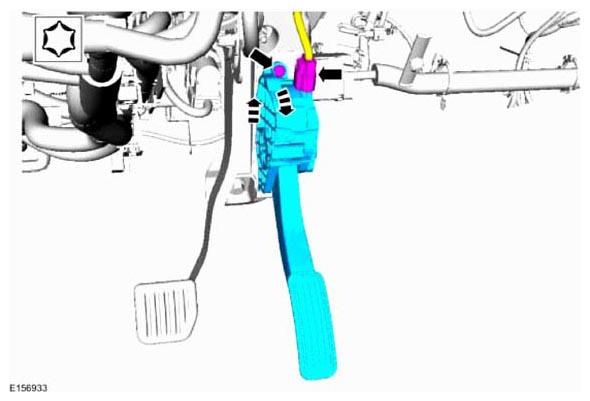

Accelerator Pedal: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS (100-00 General Information, Description and Operation).
Torque : 7 Nm
