Seat Track Position Sensor, Driver Connector End View (C356)

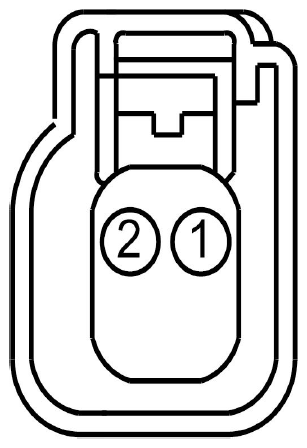

Fig 1: Identifying Seat Track Position Sensor, Driver Connector (C356)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD133 (BK)	18	GROUND - PILLAR A LEFT
2	VR215 (YE-VT)	18	SENSOR - SEAT TRACK POSITION DRIVER

Available Pigtail Kits

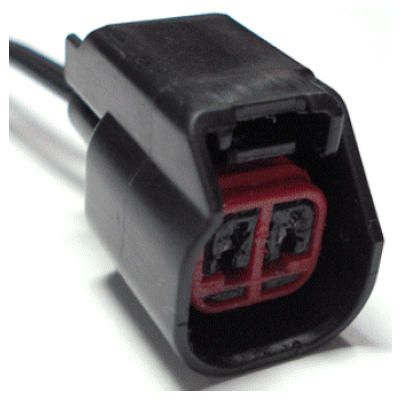

Pigtail Kit Part Number WPT-1243	Service Part Number: 3U2Z-14S411-RPC  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Handle - Decklid Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - License Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Sensor - Turbine Shaft Speed Sensor - Water in Fuel Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management

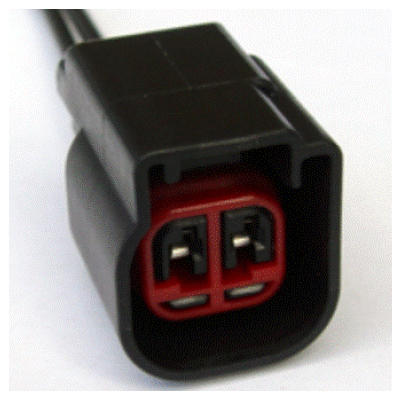

Pigtail Kit Part Number WPT-489	Service Part Number: 3U2Z-14S411-RPA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Lamp - Headlamp - Low Beam Lamp - Rear Turn Lamp - Side Marker Sensor - Input Shaft Speed Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Valve - Vapor Management

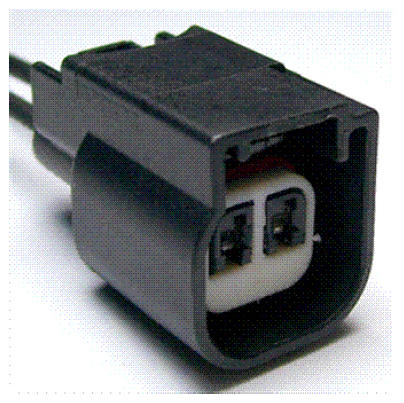

Pigtail Kit Part Number WPT-490	Service Part Number: 3U2Z-14S411-RVA  Gauge: 18  Pin material: Gold  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Knock Sensor - Memory Seat Track Position Sensor - Throttle Position

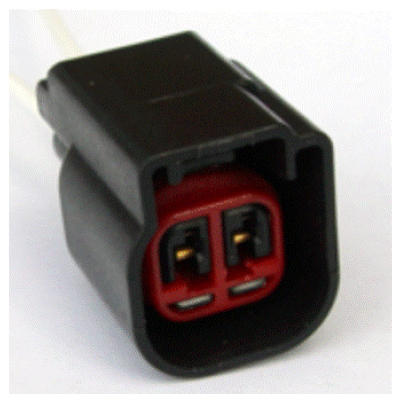

Pigtail Kit Part Number WPT-972	Service Part Number: 3U2Z-14S411-RPB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management
