Power Distribution/SJB: Notes

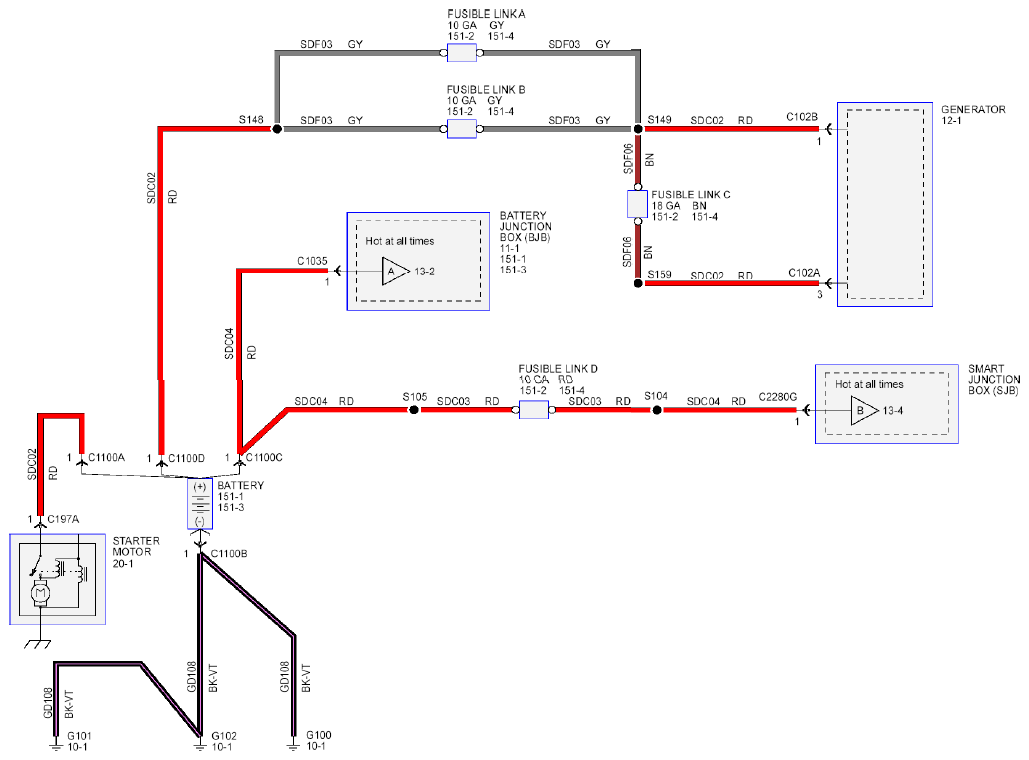

Fig 1: Power Distribution Wiring Diagram
G08734532Courtesy of FORD MOTOR CO.
