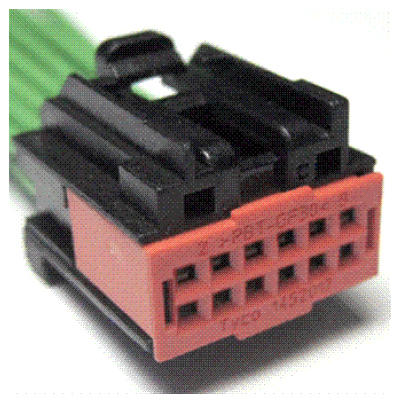

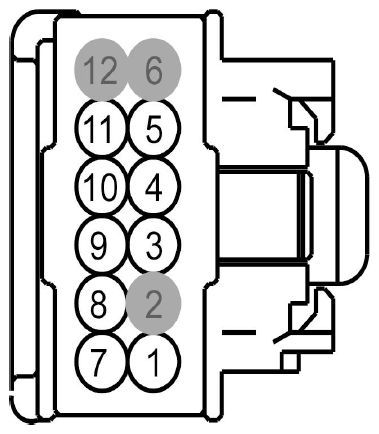

CLOCKSPRING Connector End View (C218B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CRH02 (*) | * | SWITCH - HORN | |
| 2 | * | * | Not Used | |
| 3 | * (*) | * | SYNC SIGNAL | with SYNC |
| 4 | * (*) | * | GROUND | |
| 5 | * (*) | * | SYNC RETURN | with SYNC |
| 6 | * | * | Not Used | |
| 7 | VLN18 (*) | * | DIMMER - IP/SWITCH ILLUMINATION | |
| 8 | VES10 (*) | * | SWITCH - SPEED CONTROL COMMAND (SCCS) | |
| 9 | RSE08 (*) | * | CTRL MOD. - POWERTRAIN # SPEED CONTROL COMMAND RETURN (SCCSRTN) | |
| 10 | VME14 (*) | * | SWITCH - REDUNDANT AUDIO | |
| 11 | RME24 (*) | * | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | |
| 12 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1166 | Service Part Number: BU2Z-14S411-UA Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses
|
