In-Vehicle Temperature Sensor Connector End View (C233)

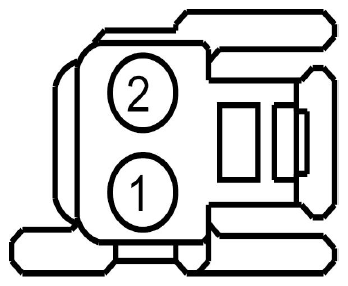

Fig 1: Identifying In-Vehicle Temperature Sensor Connector (C233)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH414 (GN-BU)	20	SENSOR - INCAR TEMP.
2	RH111 (GY-BU)	20	CTRL MOD. - GENERIC VREF RETURN

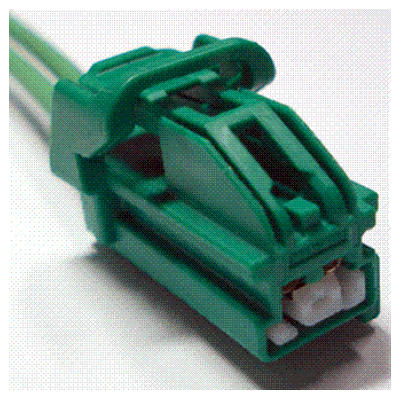

Available Pigtail Kits
Pigtail Kit Part Number WPT-1163	Service Part Number: 3U2Z-14S411-JYB  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Headlamp Switch Sensor - EATC In Car Temperature Solenoid - Brake Shift Park Interlock Switch - Brake Pressure Switch - Headlamp Switch - Neutral Tow Switch - Stop Lamp
