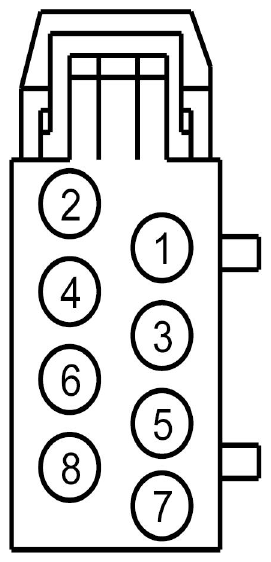

Liftgate Latch/Unlatch Assembly Connector End View (C4339)

Fig 1: Identifying Liftgate Latch/Unlatch Assembly Connector (C4339)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPR64 (VT-OG)	18	LATCH - LIFTGATE # LATCH FORKBOLT SECONDARY SWITCH HALF
2	CPR66 (GY-YE)	18	LATCH - LIFTGATE # RATCHET SWITCH
3	CPR65 (BU-GN)	18	LATCH - LIFTGATE # LATCH FORKBOLT PRIMARY SWITCH FULL
4	CPR67 (VT)	18	LATCH - LIFTGATE # SECTOR GEAR SWITCH 1
5	CPR61 (BN)	16	CTRL MOD. - POWER LIFTGATE # CINCH
6	CPR68 (YE)	18	LATCH - LIFTGATE # SECTOR GEAR SWITCH 2
7	CPR62 (WH-BU)	16	CTRL MOD. - POWER LIFTGATE # UNCINCH
8	GD149 (BK-GY)	18	GROUND - PILLAR D LEFT

Available Pigtail Kits

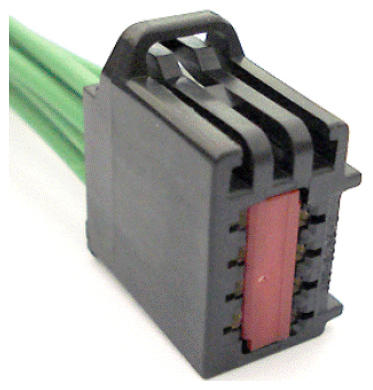

Pigtail Kit Part Number WPT-961	Service Part Number: 3U2Z-14S411-RHB Gauge: 14 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat

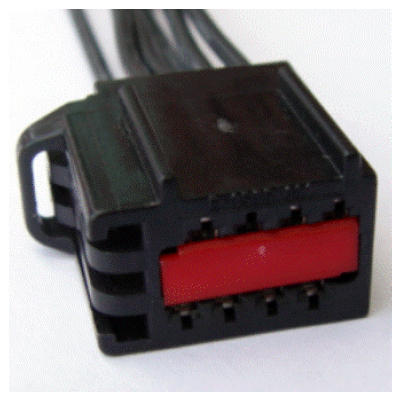

Pigtail Kit Part Number WPT-500	Service Part Number: 3U2Z-14S411-RHA Gauge: 16 Pin material: Tin Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Mirror - Sideview Module - Heated Seat (driver) Switch - Heated Seat Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Multifunction
