Antenna Module Connector End View (C9021)

Fig 1: Identifying Antenna Module Connector (C9021)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CME13 (YE-OG)	20	CTRL MOD. - POWER ANTENNA MOTOR

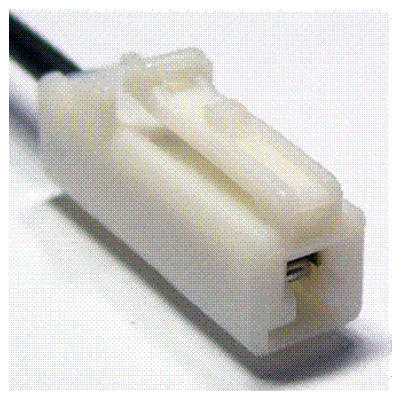

Available Pigtail Kits
Pigtail Kit Part Number WPT-1106	Service Part Number: AU2Z-14S411-AUA  Gauge: 16  Pin material: Tin  Cavities: 1  Vehicle Uses Module - Radio Power Antenna
