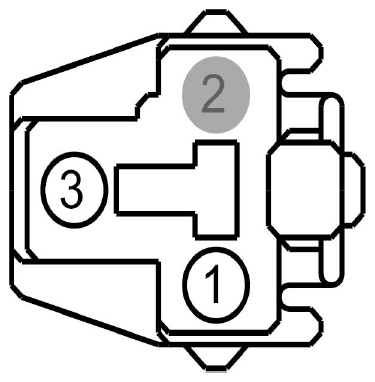

Power Point, Console 1 Connector End View (C3063)

Fig 1: Identifying Power Point, Console 1 Connector (C3063)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB66 (YE-RD)	14	FUSE - 66 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD143 (BK-VT)	14	GROUND - PILLAR B LEFT

Available Pigtail Kits

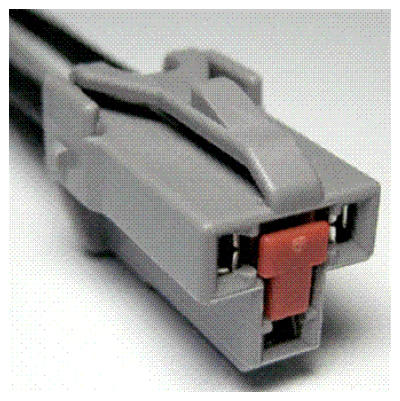

Pigtail Kit Part Number WPT-1160	Service Part Number: 3U2Z-14S411-SJB  Gauge: 12  Pin material: Tin  Cavities: 3  Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point

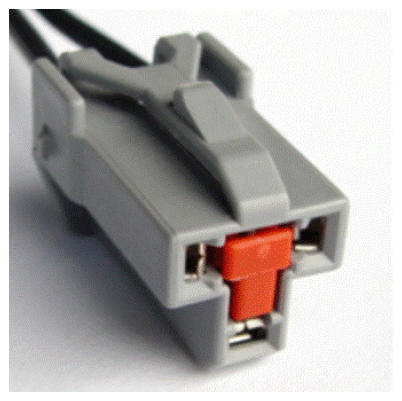

Pigtail Kit Part Number WPT-682	Service Part Number: 3U2Z-14S411-SJA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Motor - Engine Cooling Fan
