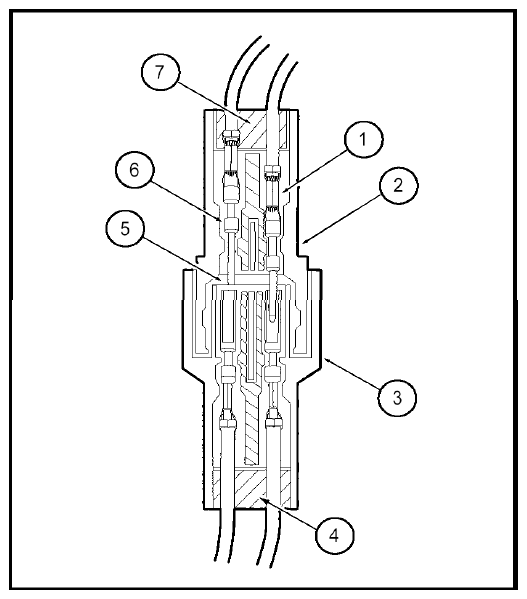

Terminal Not Properly Seated

1. = Locked terminal
2. = Male half
3. = Female half
4. = Seal
5. = Intermittent contact
6. = Unlocked terminal (Hidden by wire seal)
7. = Seal

Check for unlocked terminals by pulling each wire at the end of the connector.

Fig 1: Cross Section View Of Connector

Courtesy of FORD MOTOR CO.
