Component Location Views

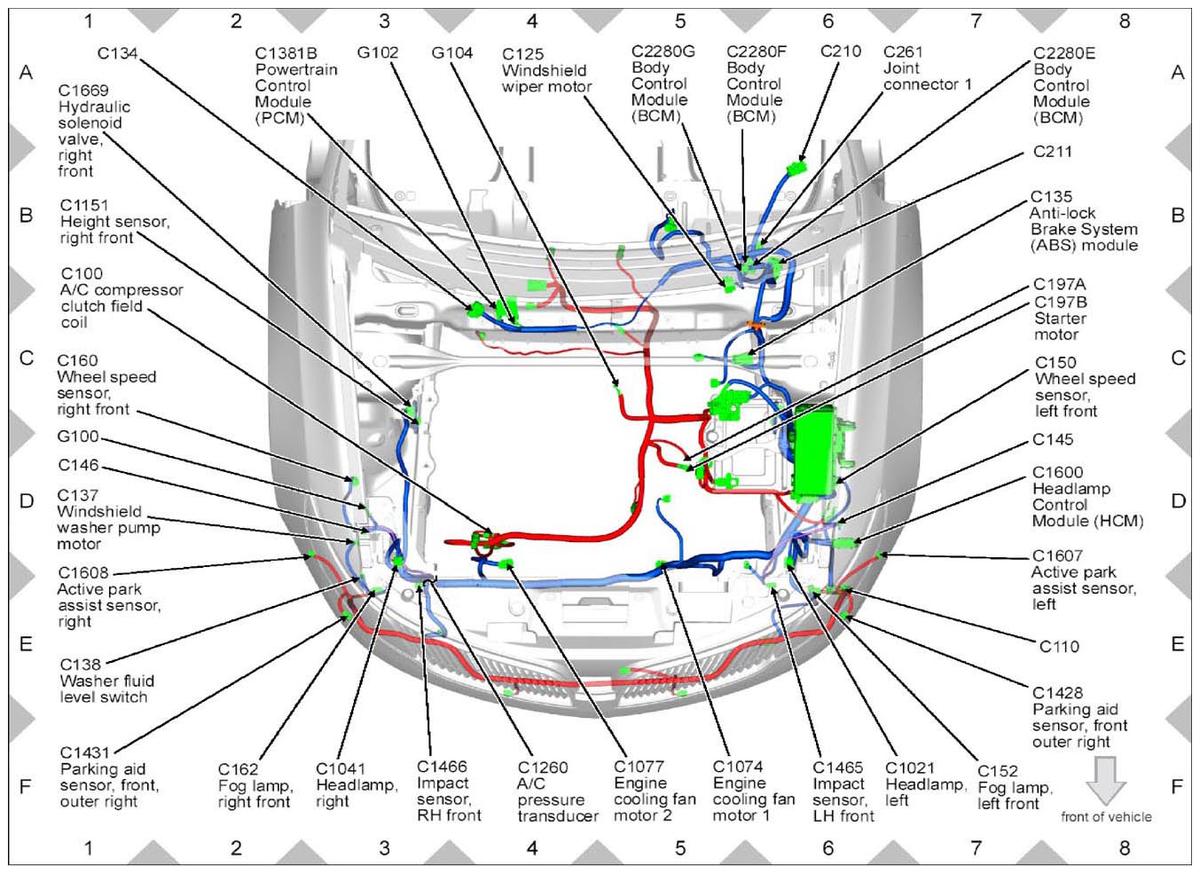

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)

G09280192

Courtesy of FORD MOTOR CO.

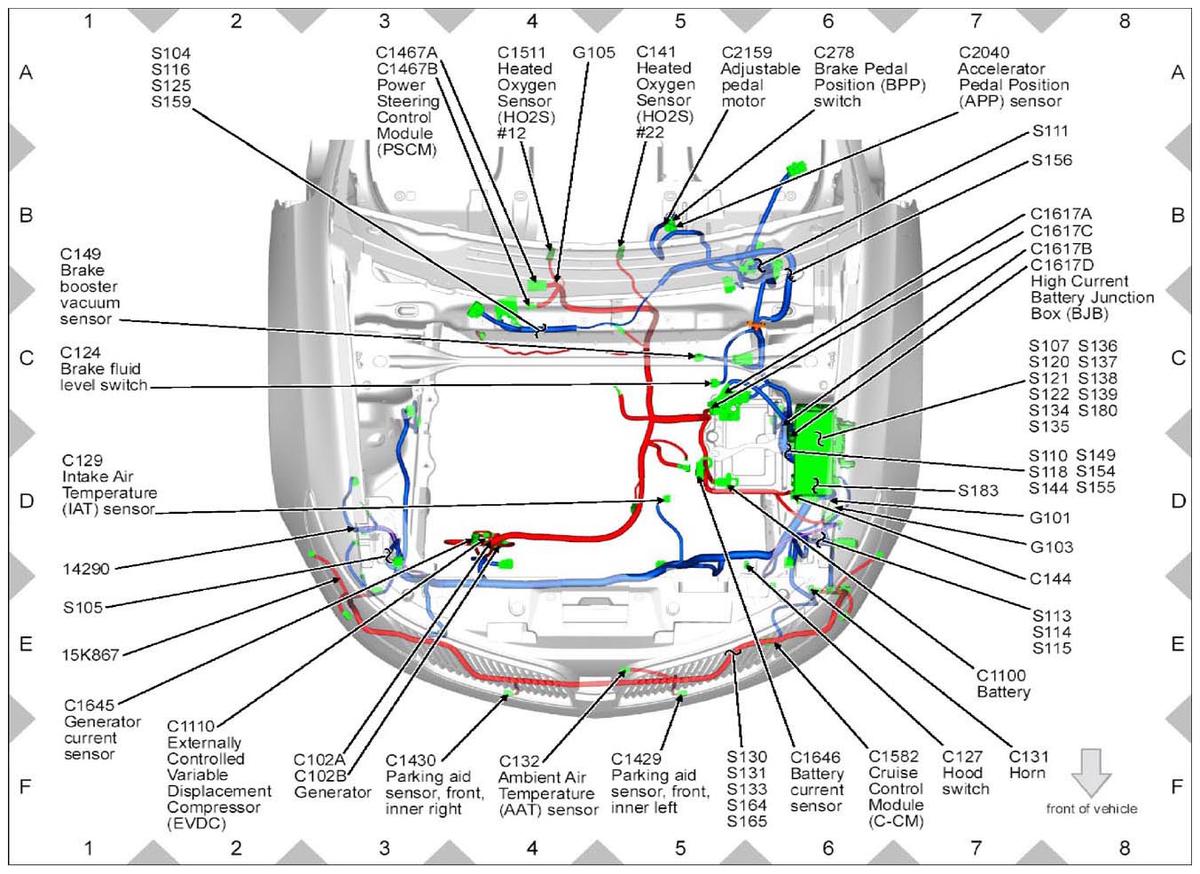

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)

G09280193

Courtesy of FORD MOTOR CO.

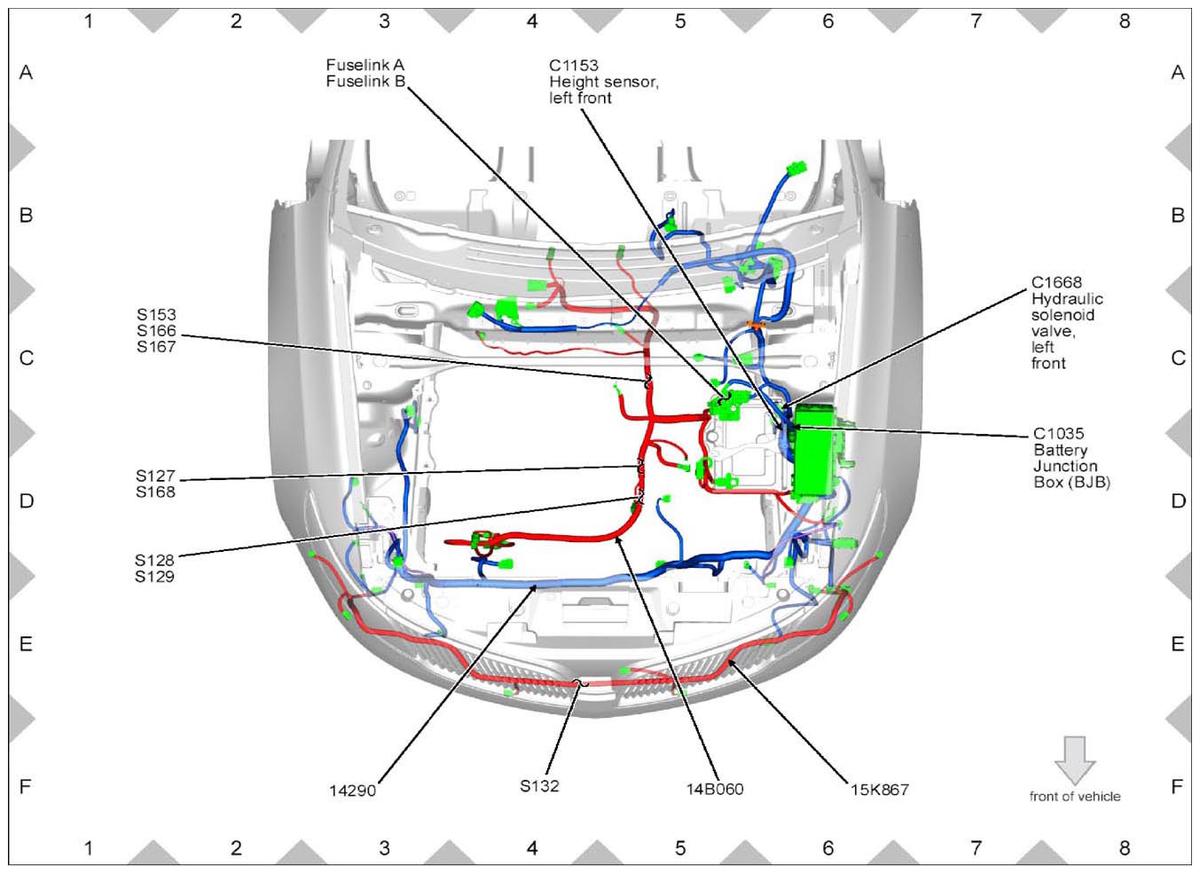

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)

G09280194

Courtesy of FORD MOTOR CO.

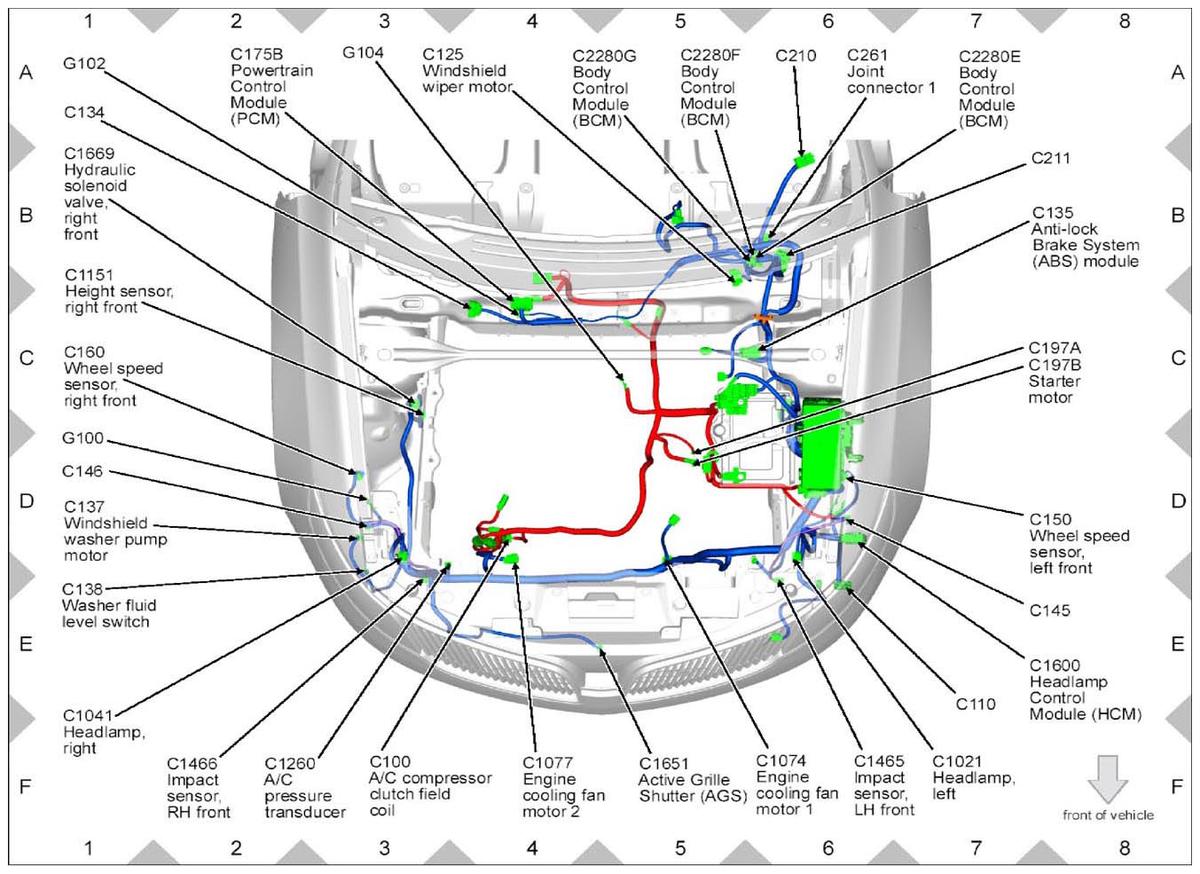

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)

G09280195

Courtesy of FORD MOTOR CO.

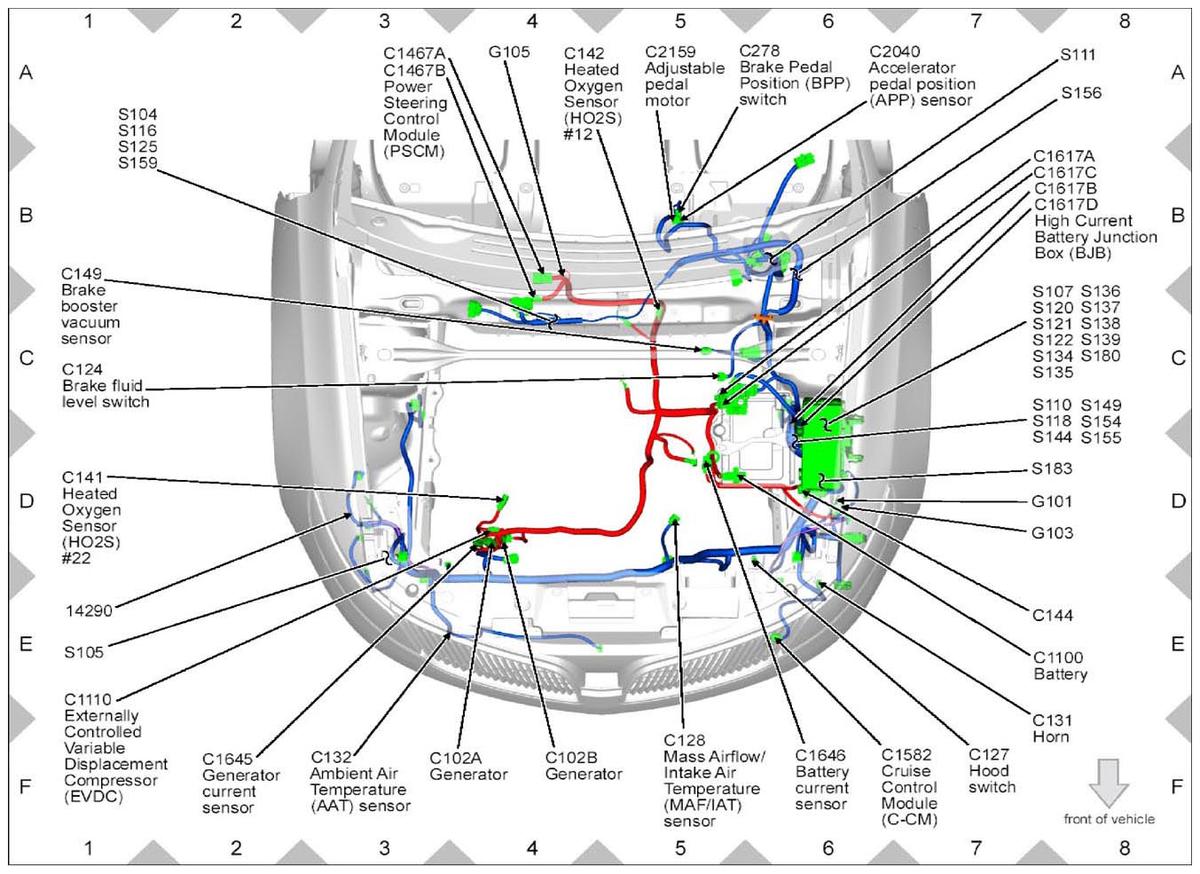

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)

G09280196

Courtesy of FORD MOTOR CO.

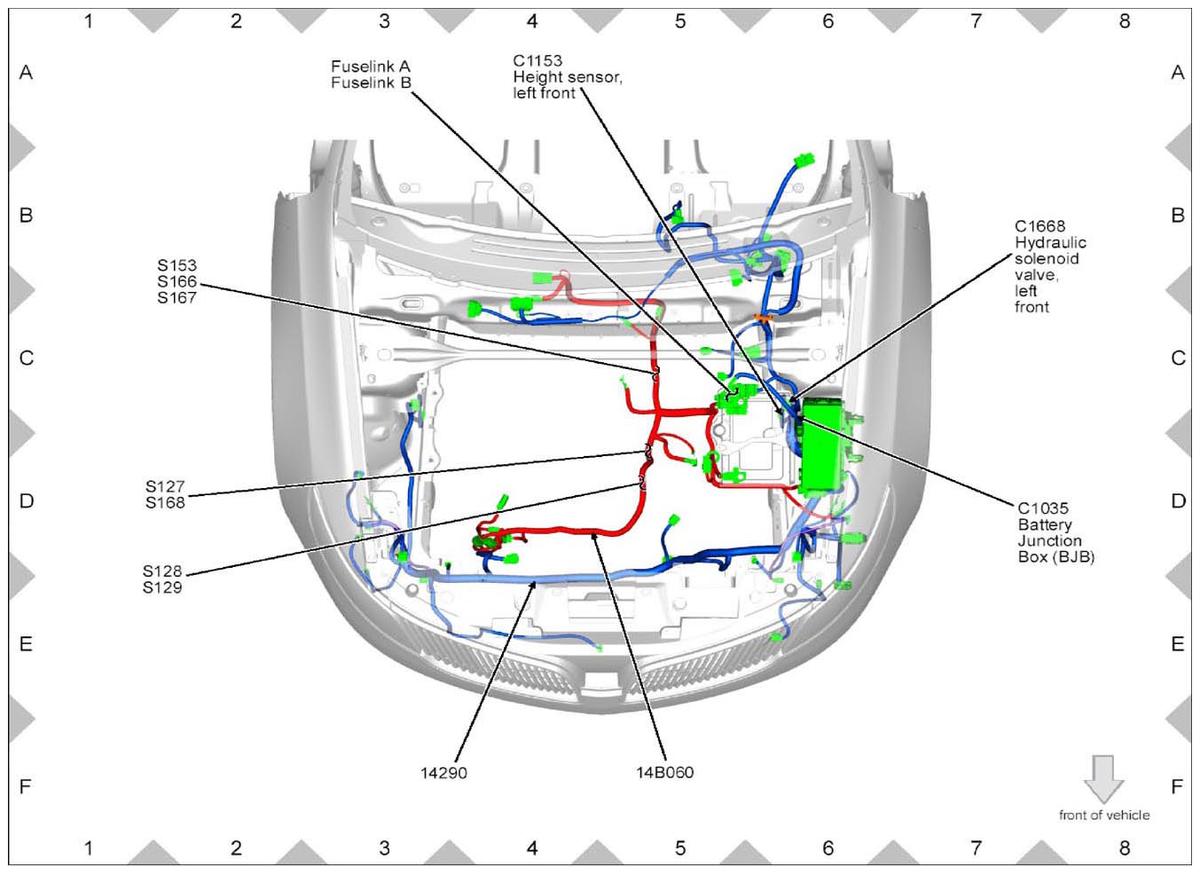

Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)

G09280197

Courtesy of FORD MOTOR CO.

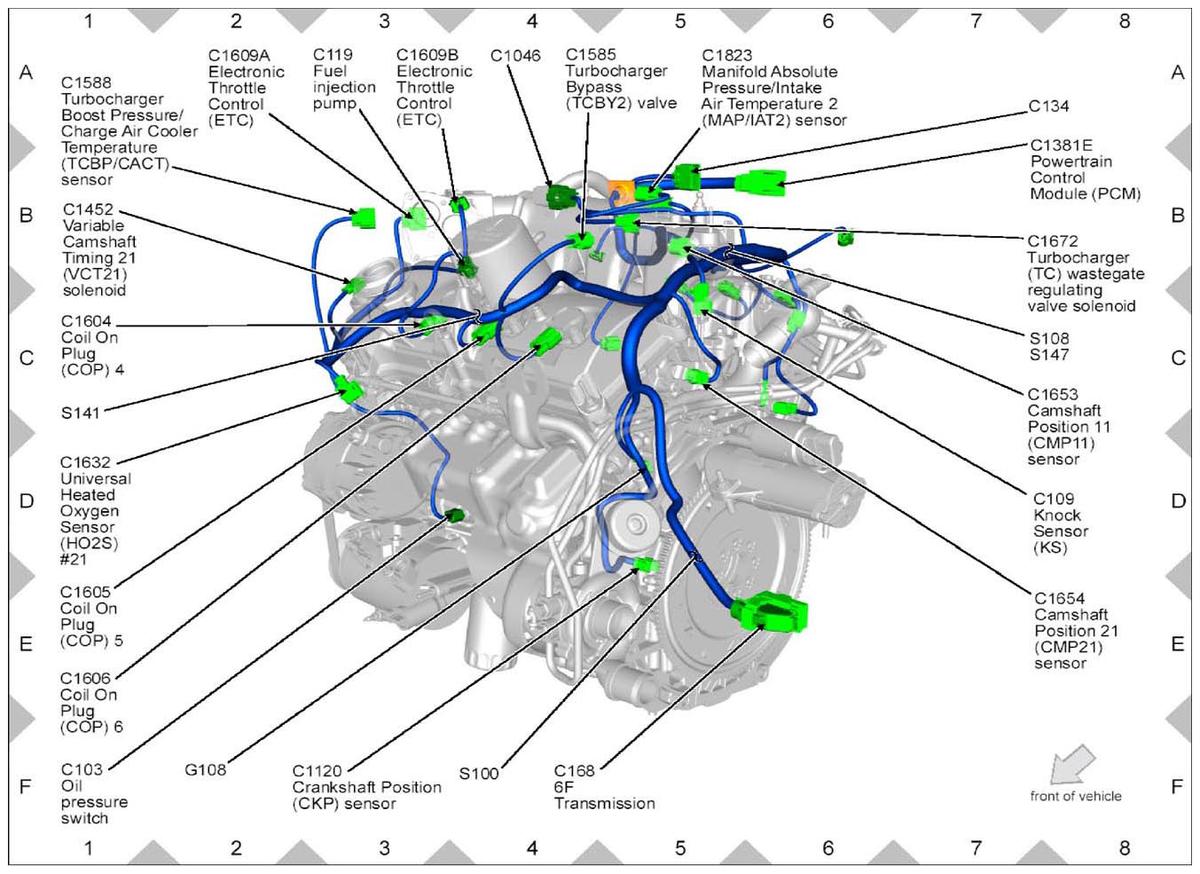

Fig 7: Engine Wiring Harness Connectors Location (1 Of 4)

G09280198

Courtesy of FORD MOTOR CO.

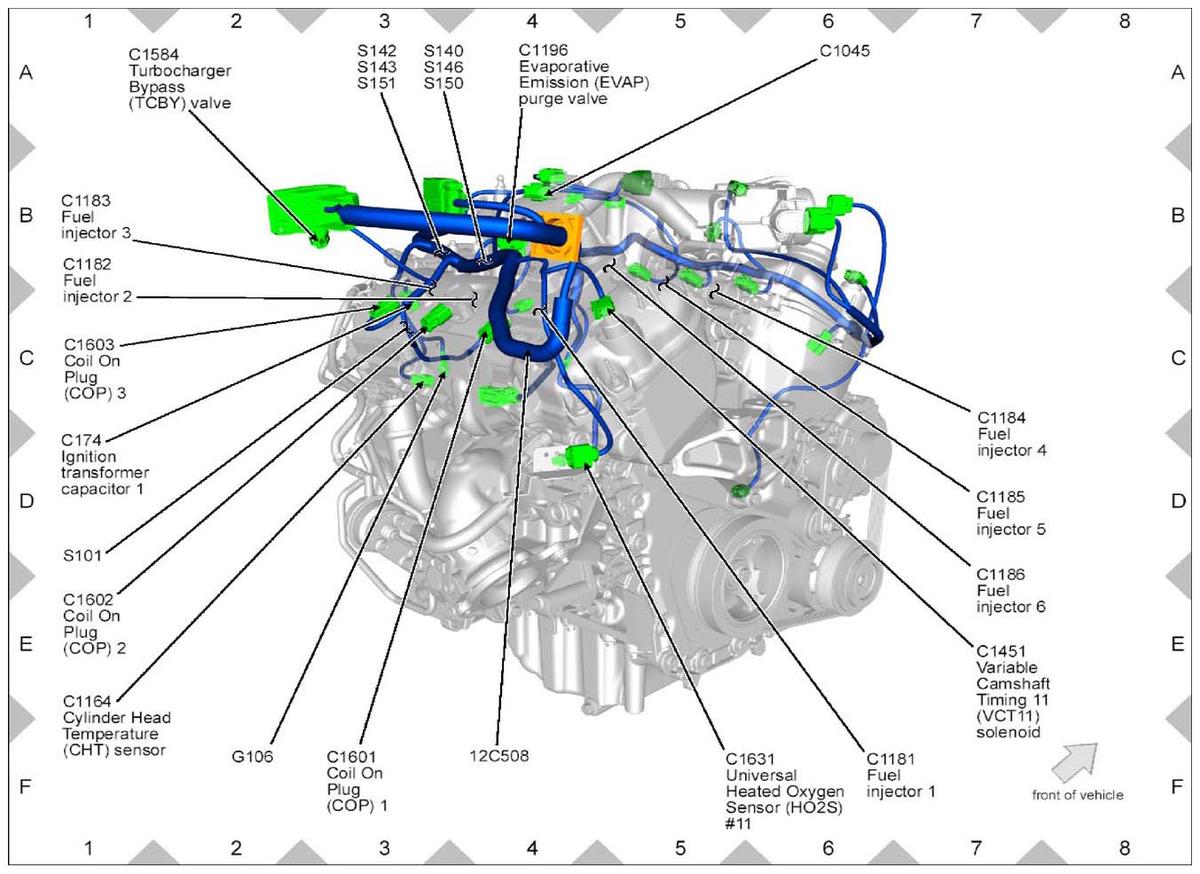

Fig 8: Engine Wiring Harness Connectors Location (2 Of 4)

G09280199

Courtesy of FORD MOTOR CO.

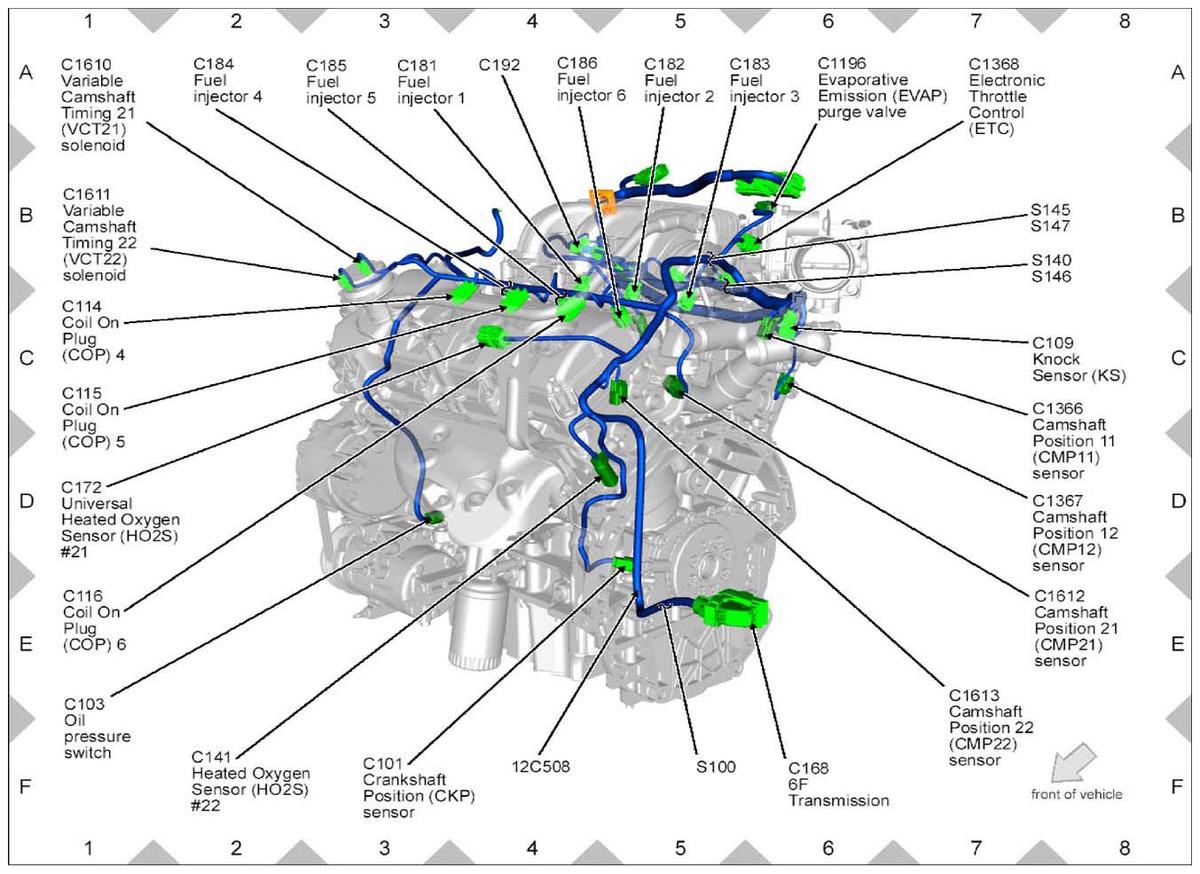

Fig 9: Engine Wiring Harness Connectors Location (3 Of 4)

G09280200

Courtesy of FORD MOTOR CO.

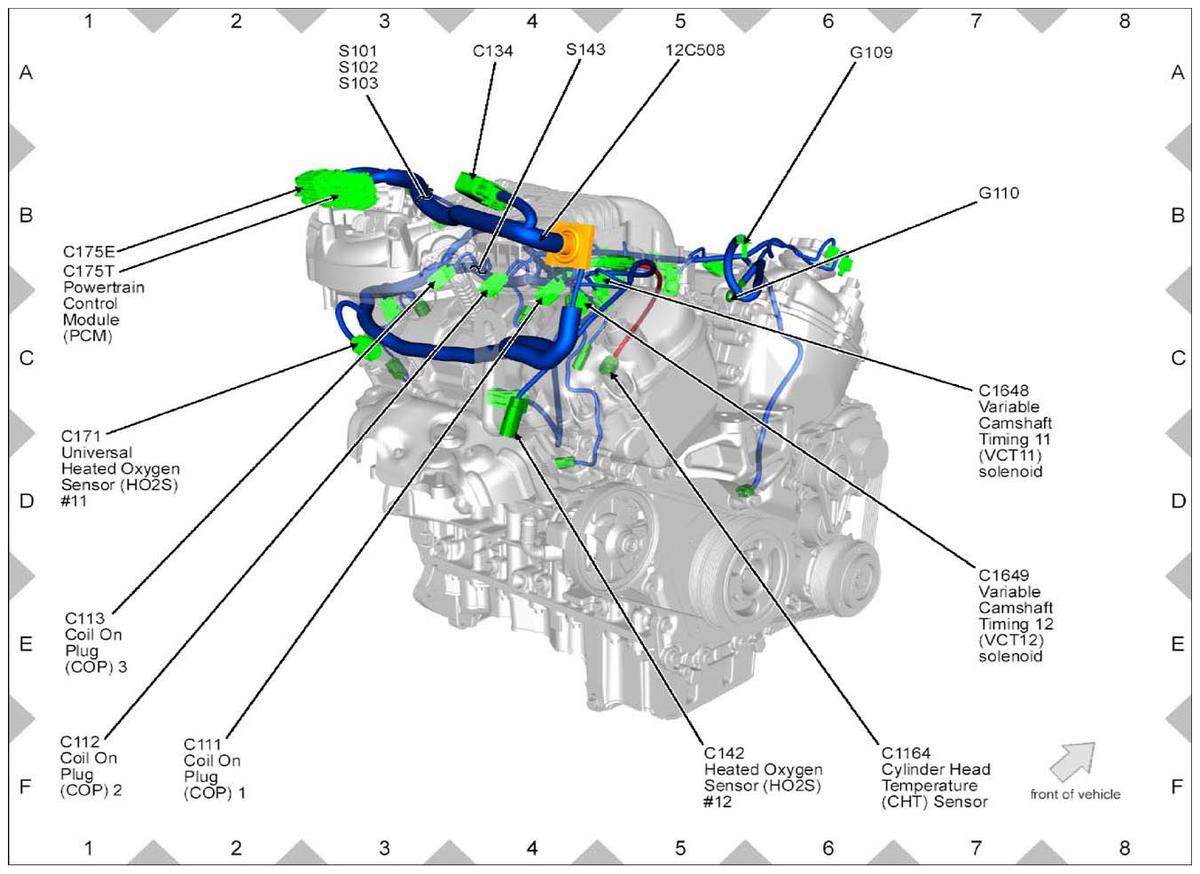

Fig 10: Engine Wiring Harness Connectors Location (4 Of 4)

G09280201

Courtesy of FORD MOTOR CO.

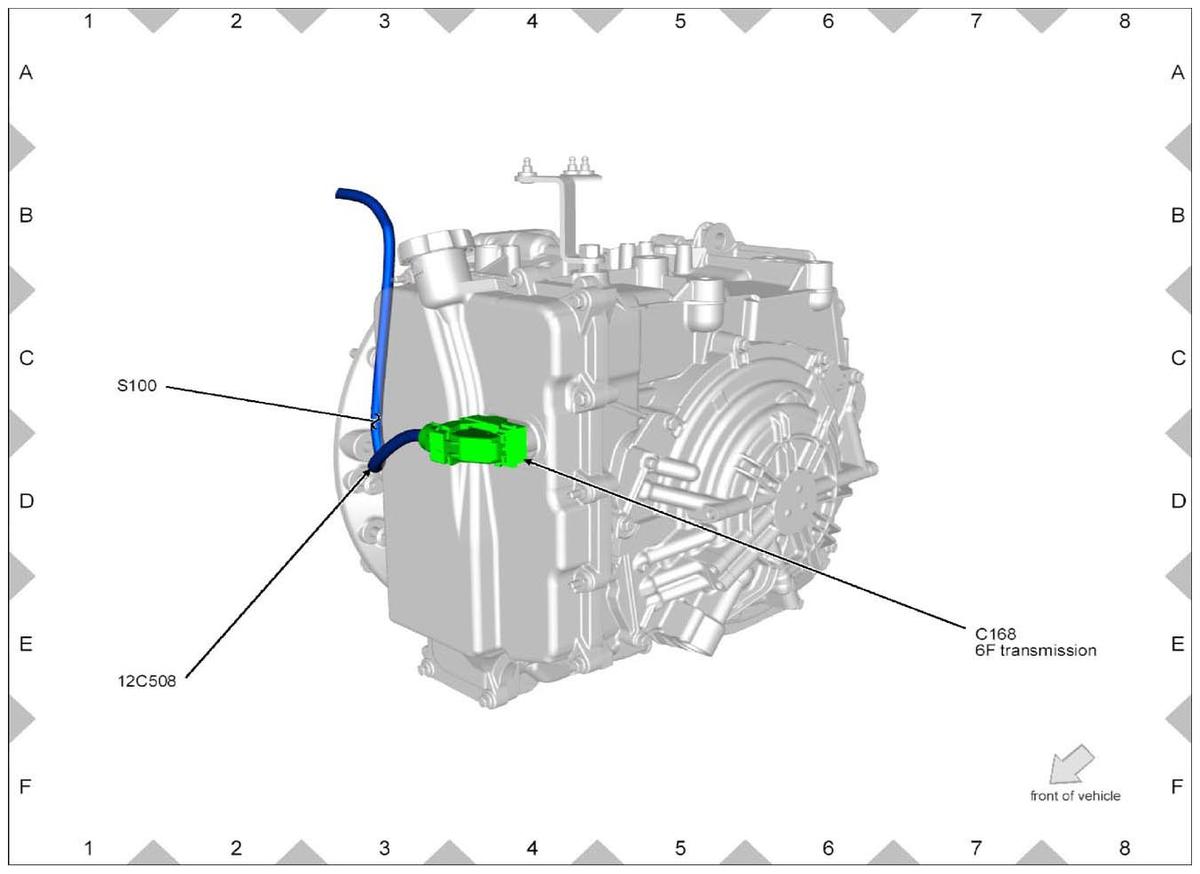

Fig 11: Transmission Wiring Harness Connectors Location

G09280202

Courtesy of FORD MOTOR CO.

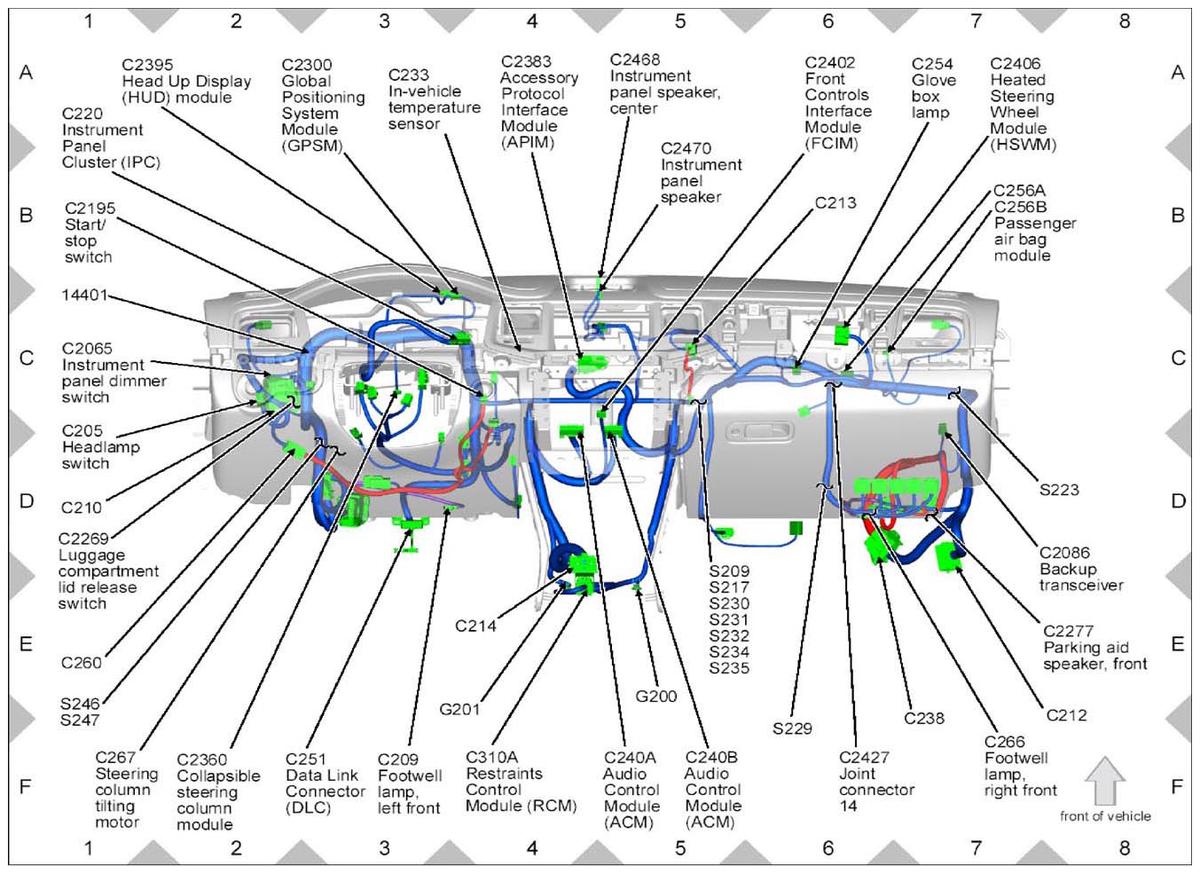

Fig 12: Dashboard Wiring Harness Connectors Location (1 Of 2)

G09280203

Courtesy of FORD MOTOR CO.

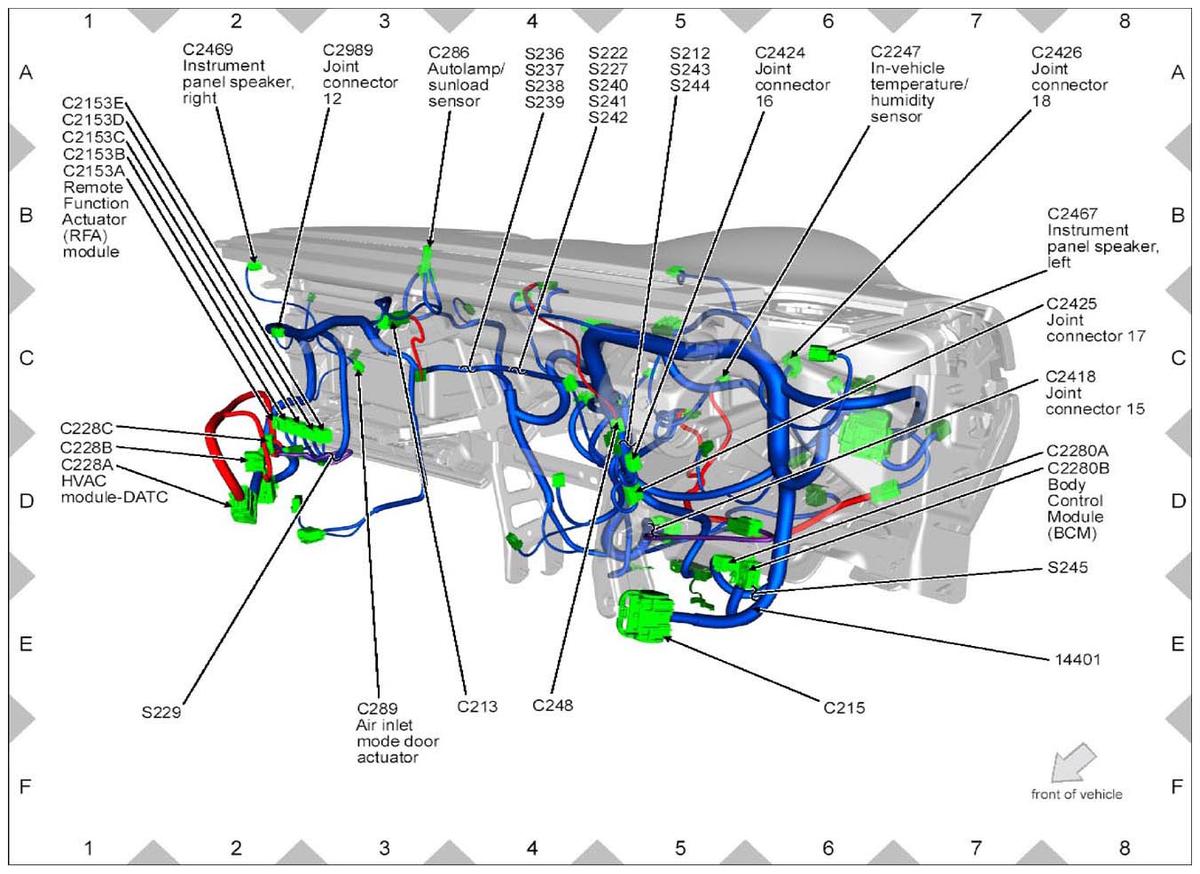

Fig 13: Dashboard Wiring Harness Connectors Location (2 Of 2)

G09280204

Courtesy of FORD MOTOR CO.

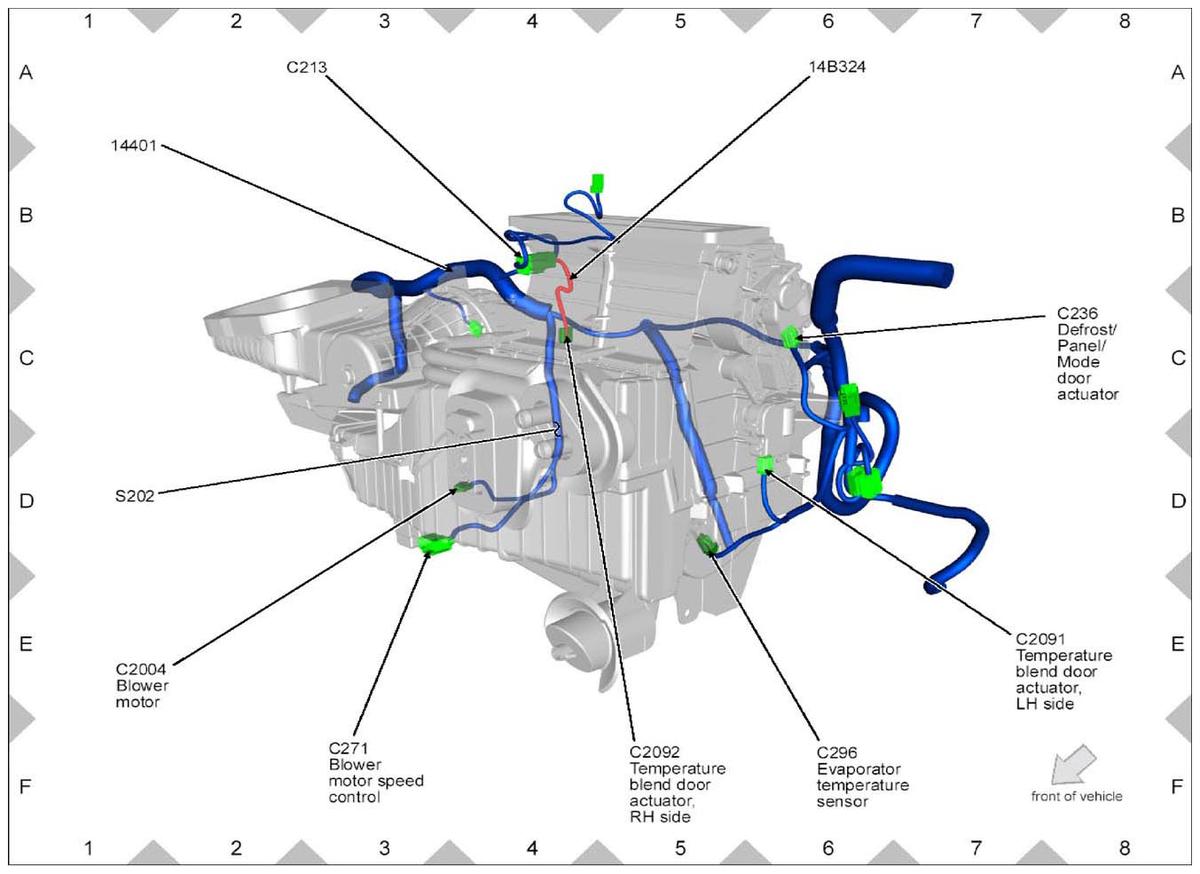

Fig 14: HVAC Wiring Harness Connectors Location

G09280205

Courtesy of FORD MOTOR CO.

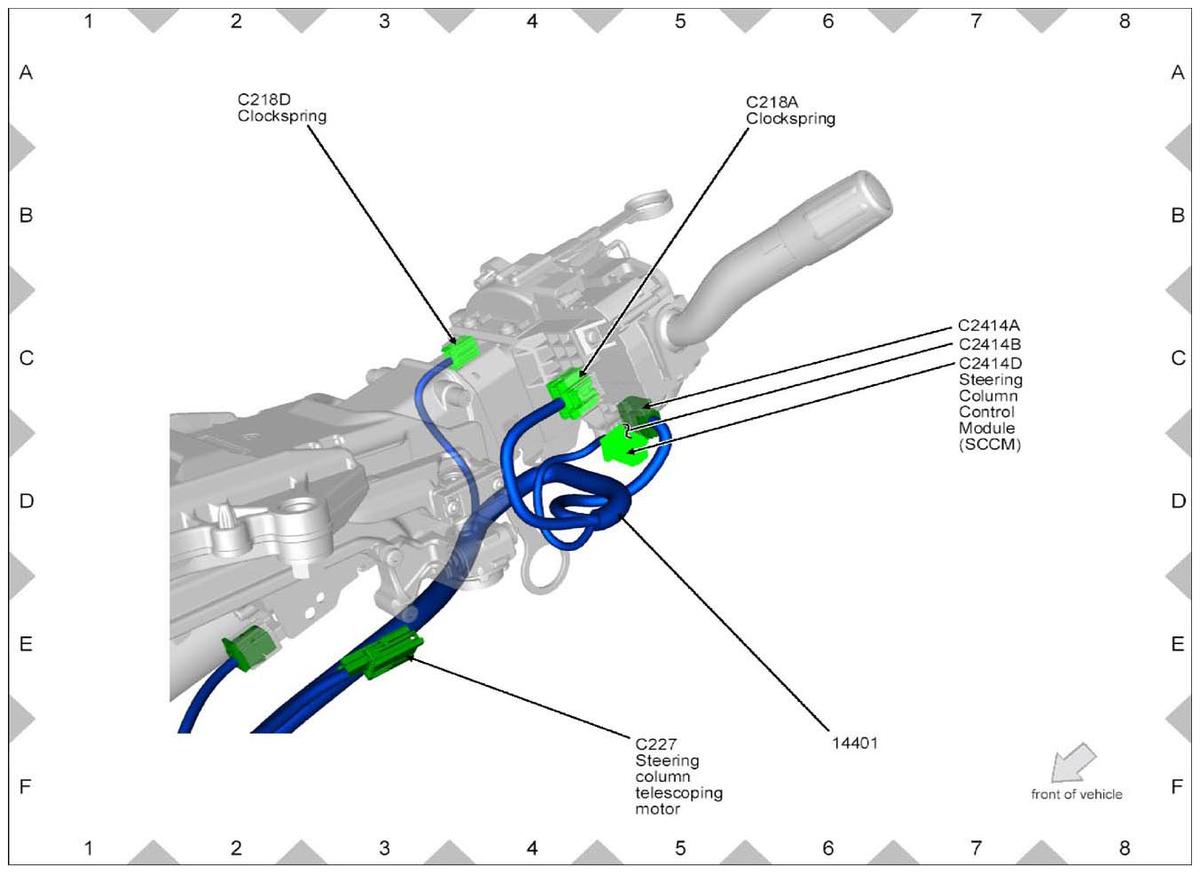

Fig 15: Steering Column Wiring Harness Connectors Location

G09280206

Courtesy of FORD MOTOR CO.

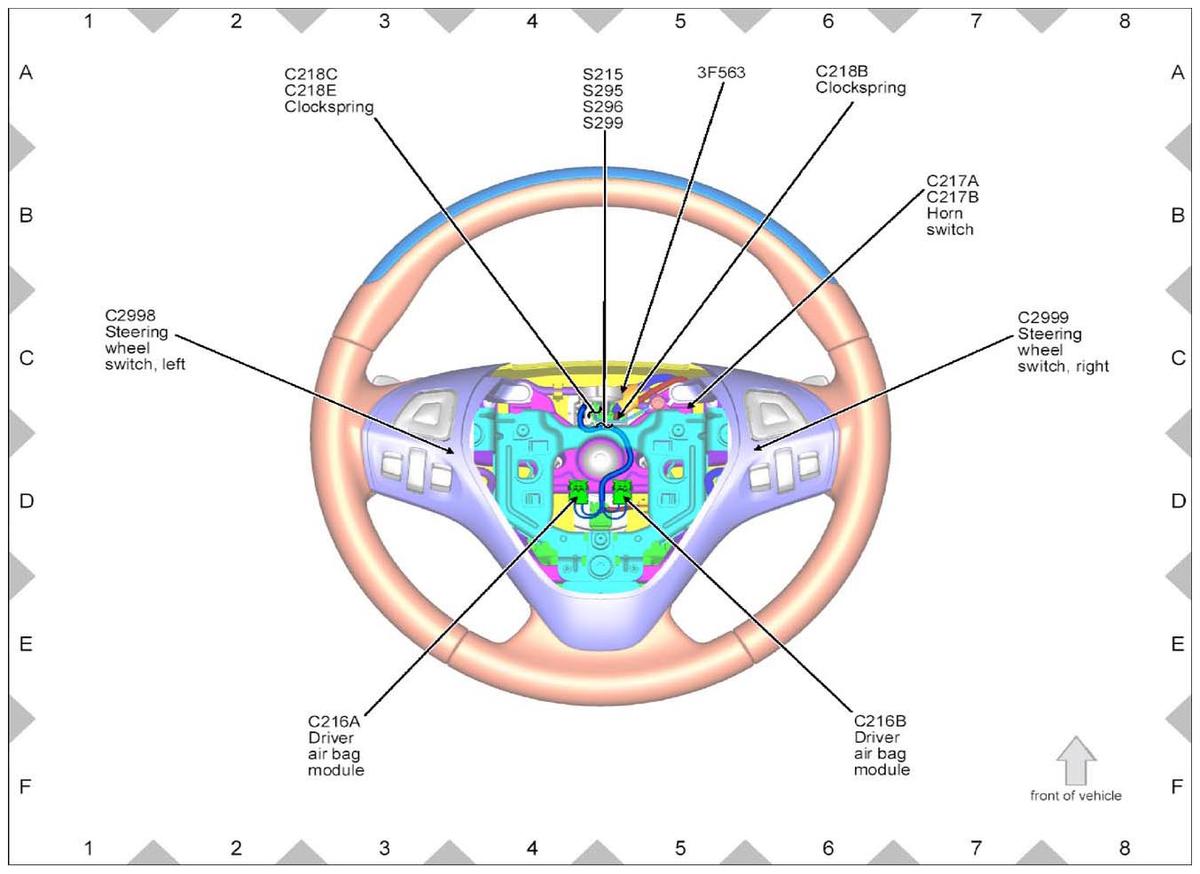

Fig 16: Steering Wheel Wiring Harness Connectors Location

G09280207

Courtesy of FORD MOTOR CO.

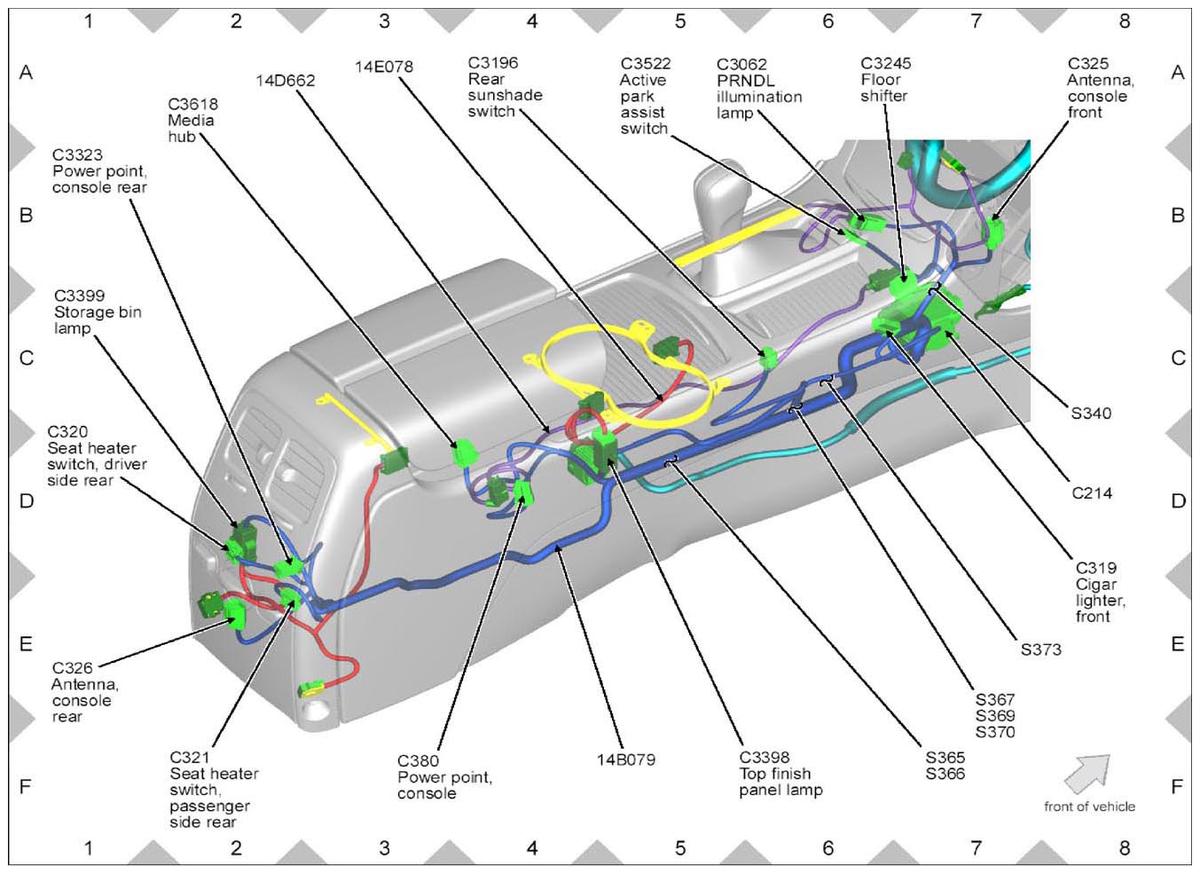

Fig 17: Center Console Wiring Harness Connectors Location

G09280208

Courtesy of FORD MOTOR CO.

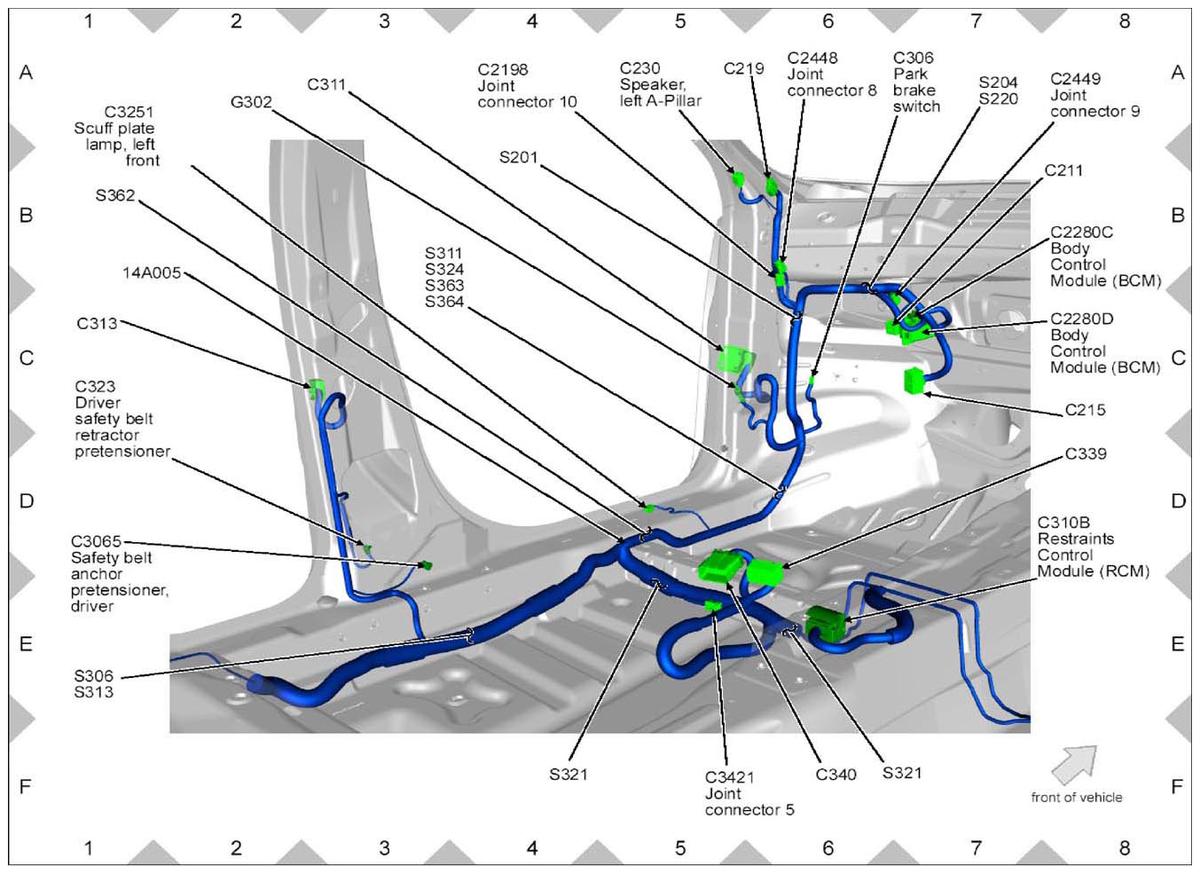

Fig 18: LH Front Compartment Wiring Harness Connectors Location

G09280209

Courtesy of FORD MOTOR CO.

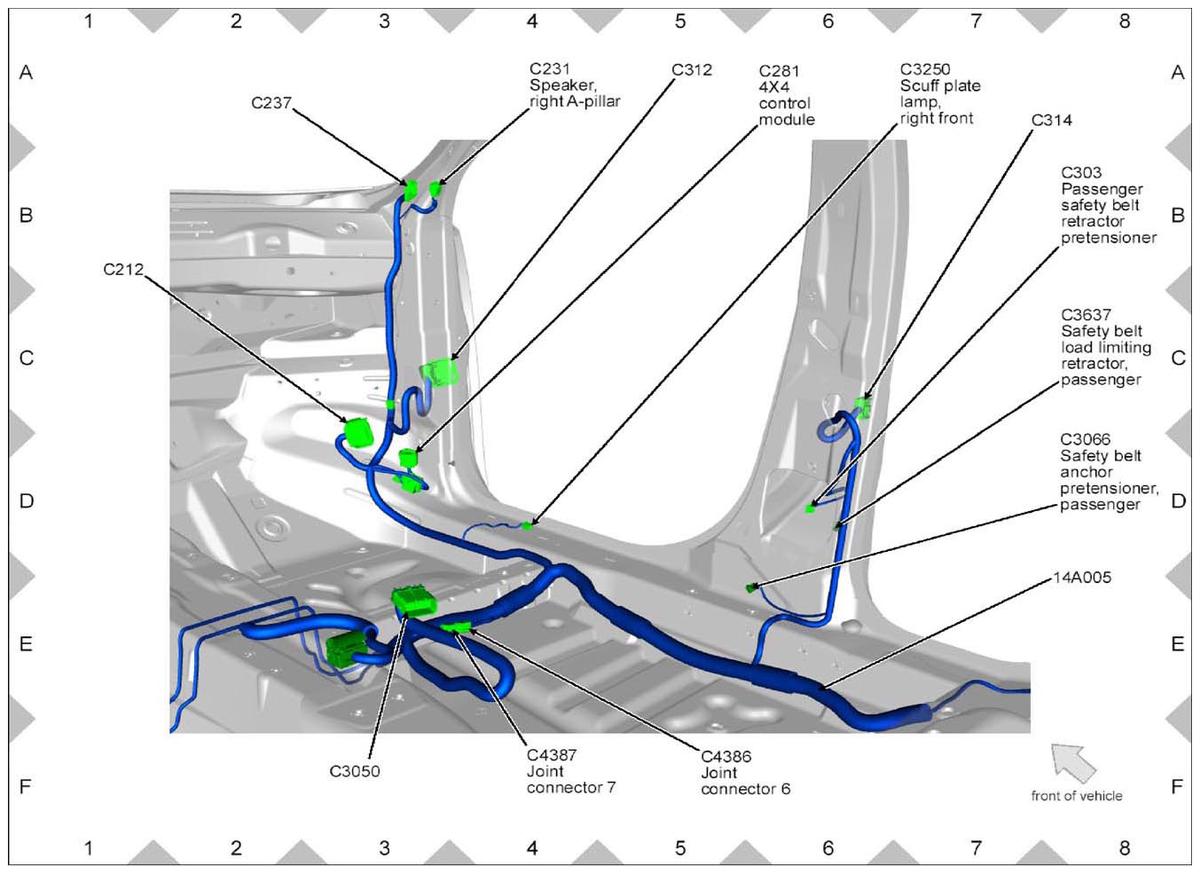

Fig 19: RH Front Compartment Wiring Harness Connectors Location

G09280210

Courtesy of FORD MOTOR CO.

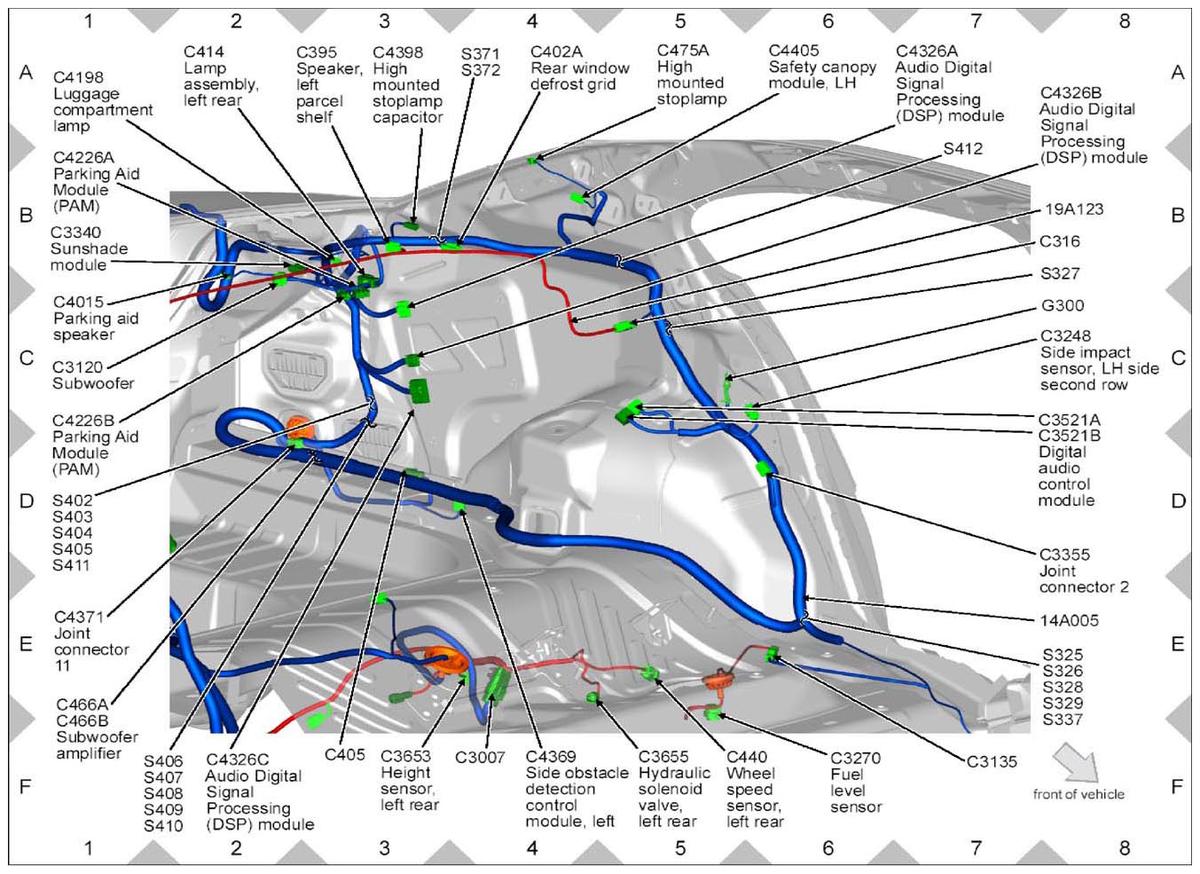

Fig 20: LH Rear Compartment Wiring Harness Connectors Location

G09280211

Courtesy of FORD MOTOR CO.

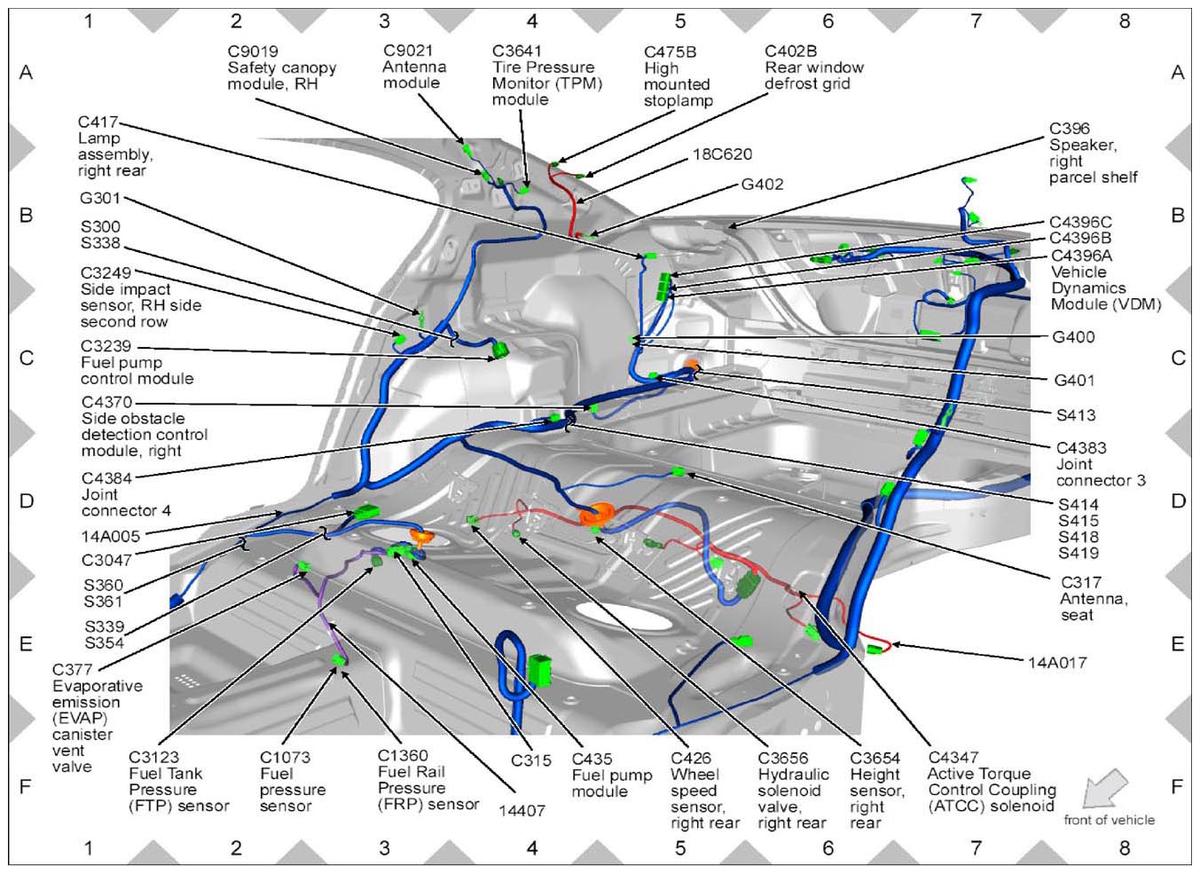

Fig 21: RH Rear Compartment Wiring Harness Connectors Location

G09280212

Courtesy of FORD MOTOR CO.

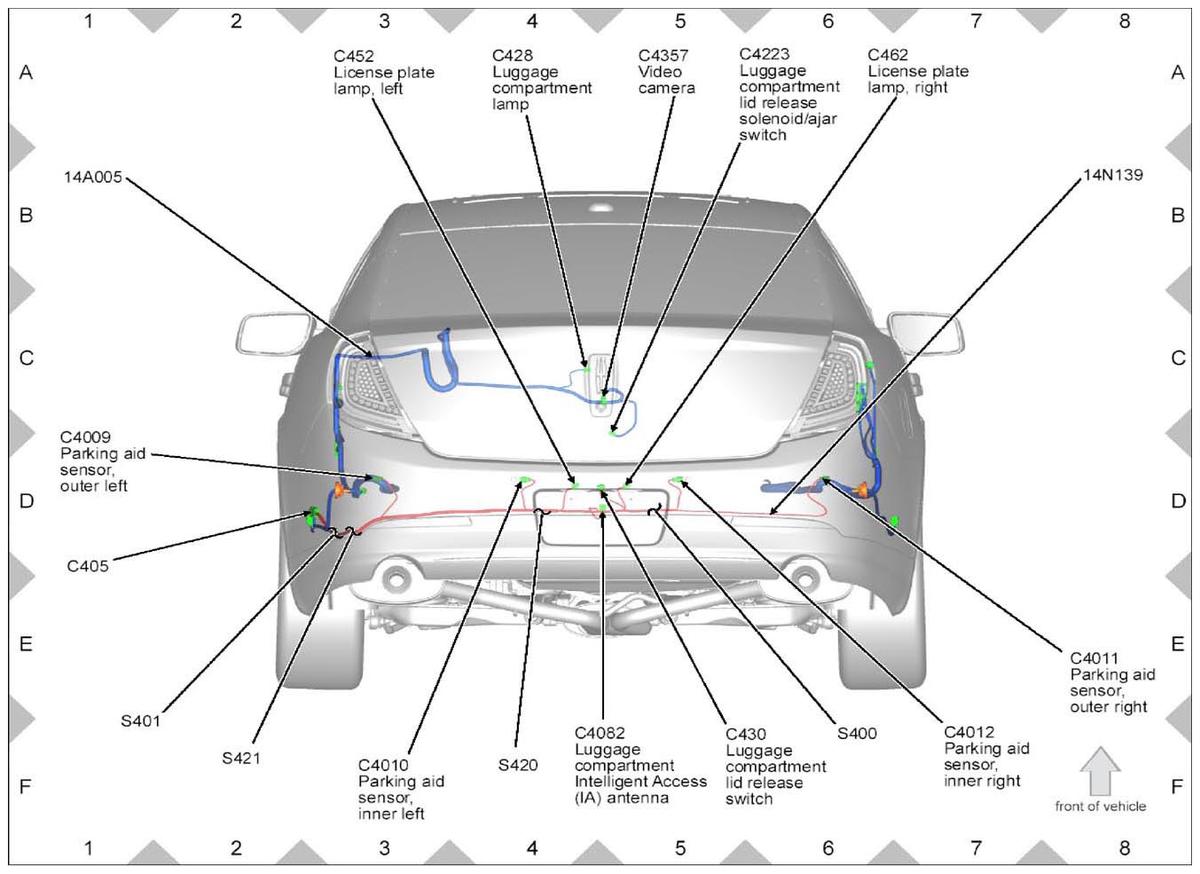

Fig 22: Luggage Compartment Wiring Harness Connectors Location

G09280213

Courtesy of FORD MOTOR CO.

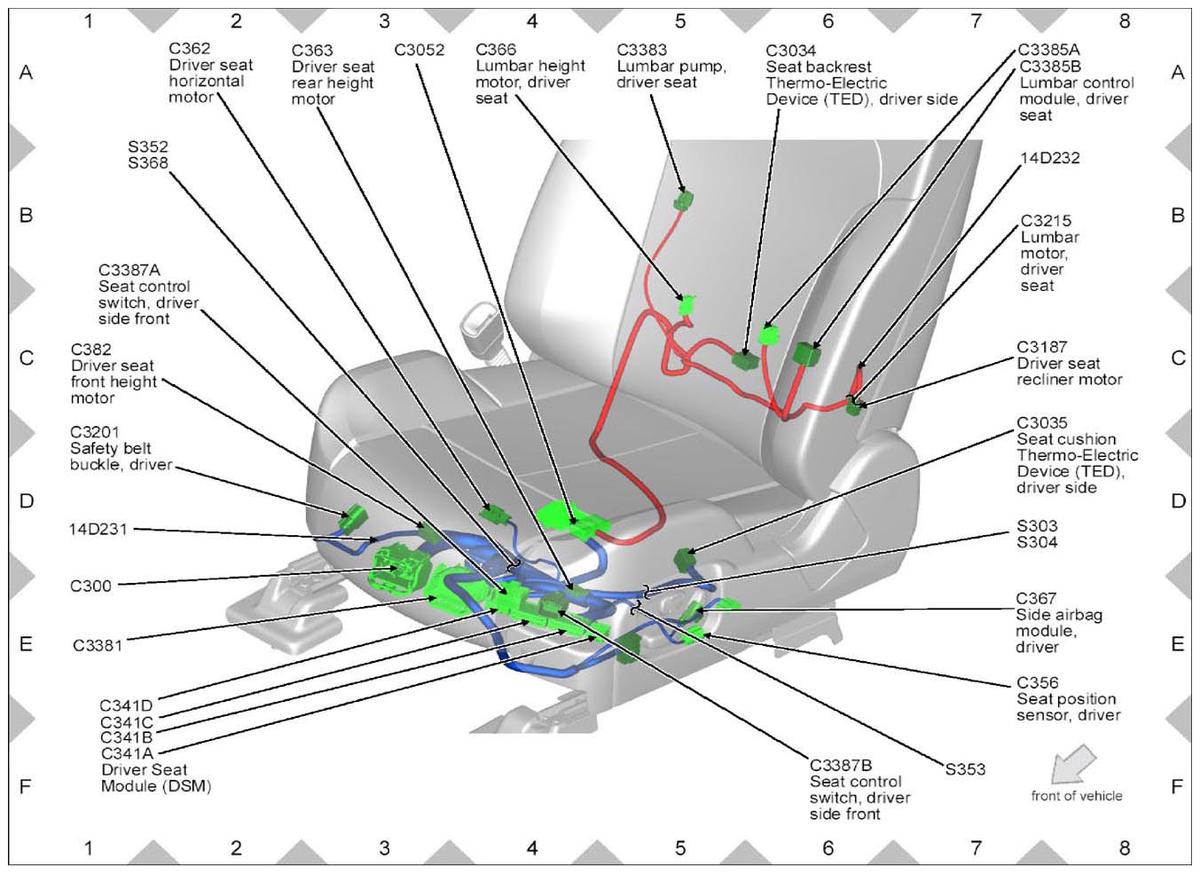

Fig 23: Driver Seat Wiring Harness Connectors Location

G09280214

Courtesy of FORD MOTOR CO.

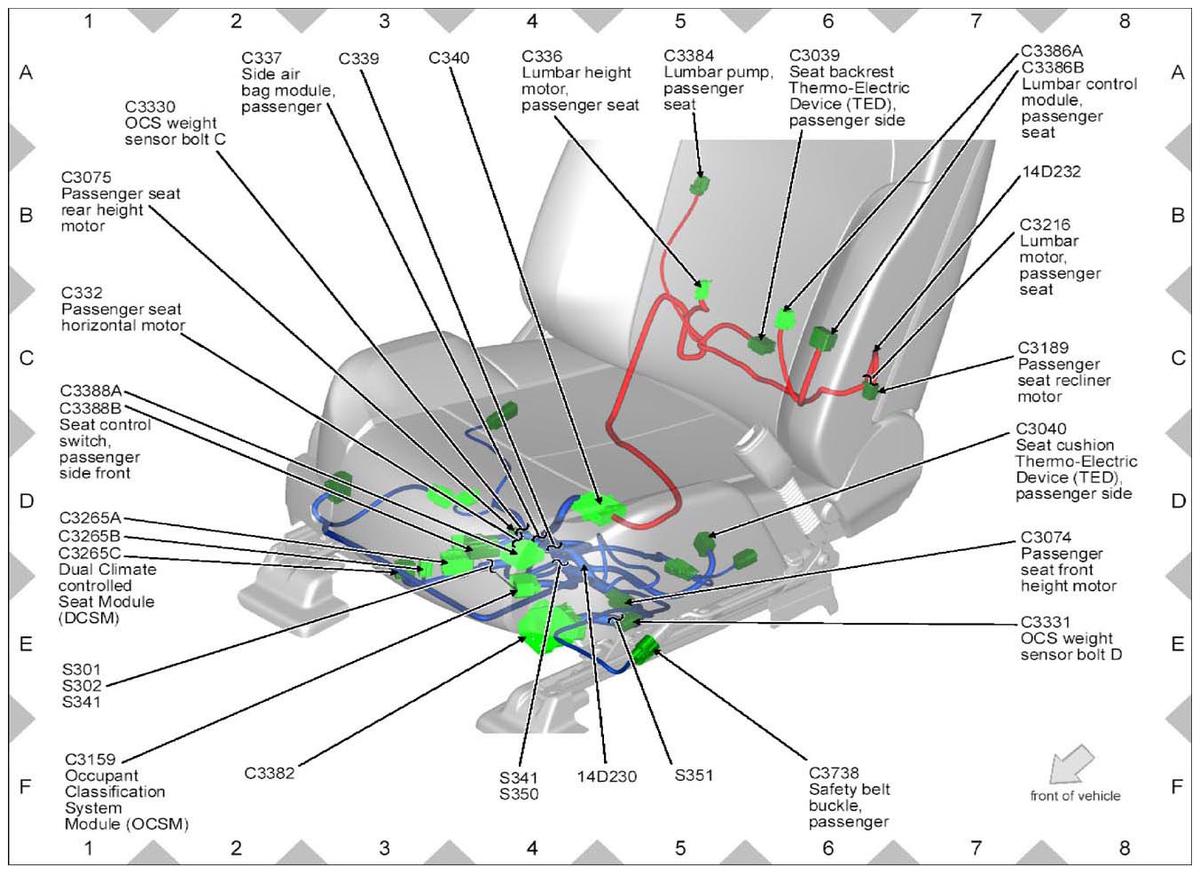

Fig 24: Passenger Seat Wiring Harness Connectors Location

G09280215

Courtesy of FORD MOTOR CO.

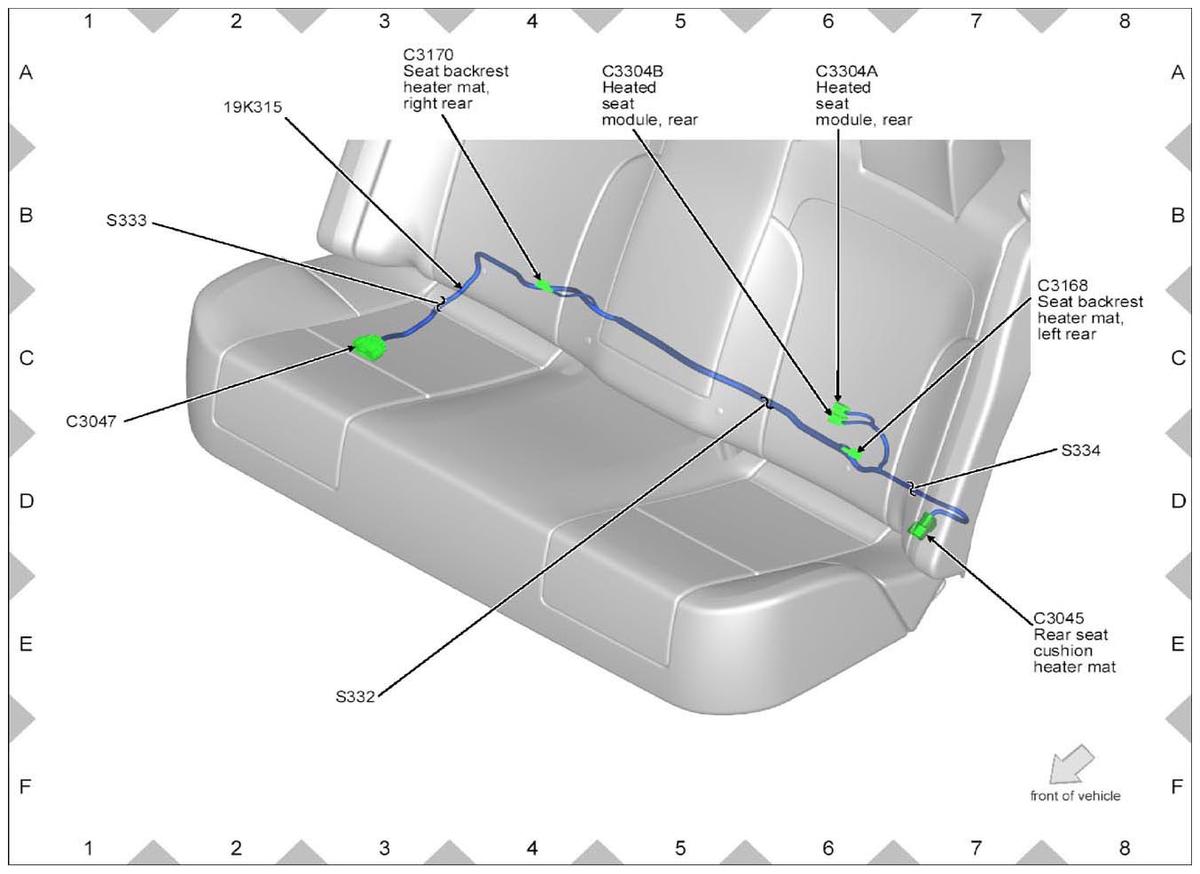

Fig 25: Rear Seat Wiring Harness Connectors Location

G09280216

Courtesy of FORD MOTOR CO.

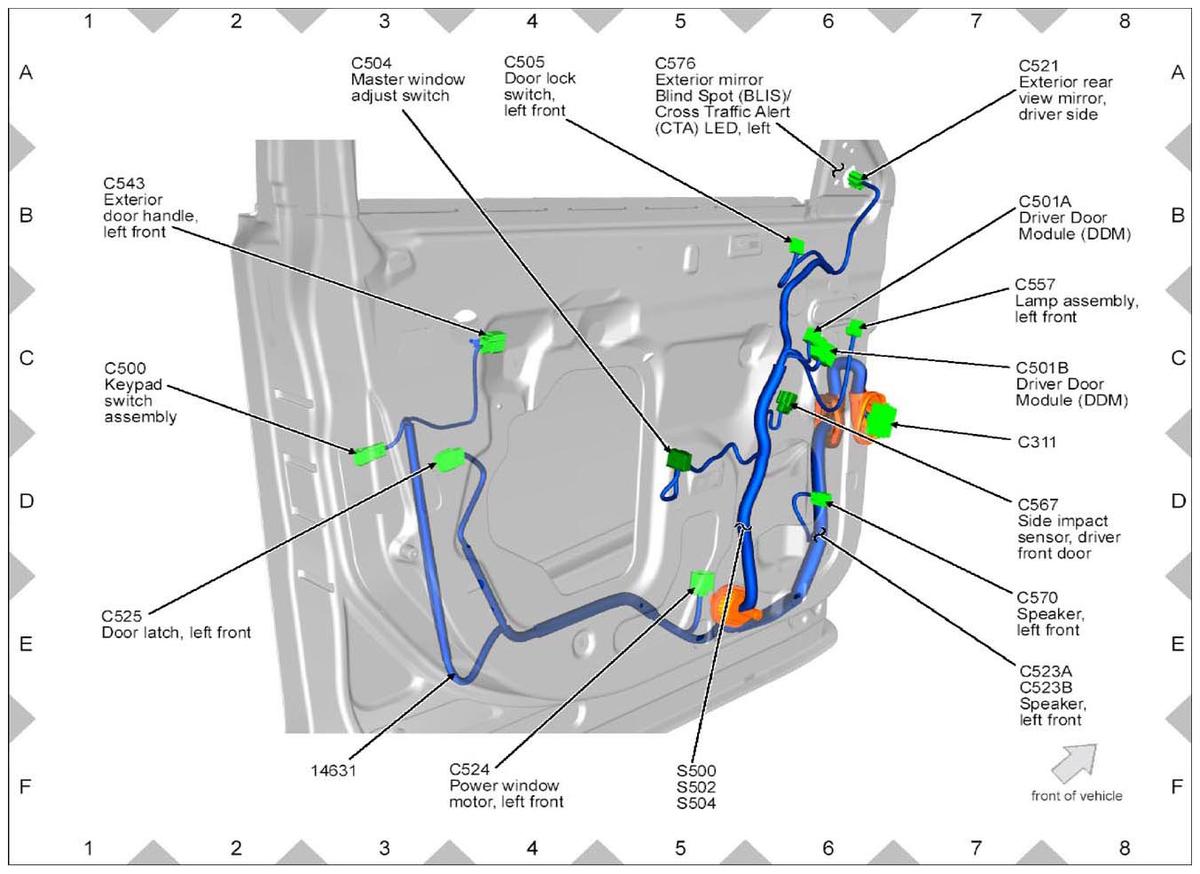

Fig 26: LH Front Door Wiring Harness Connectors Location

G09280217

Courtesy of FORD MOTOR CO.

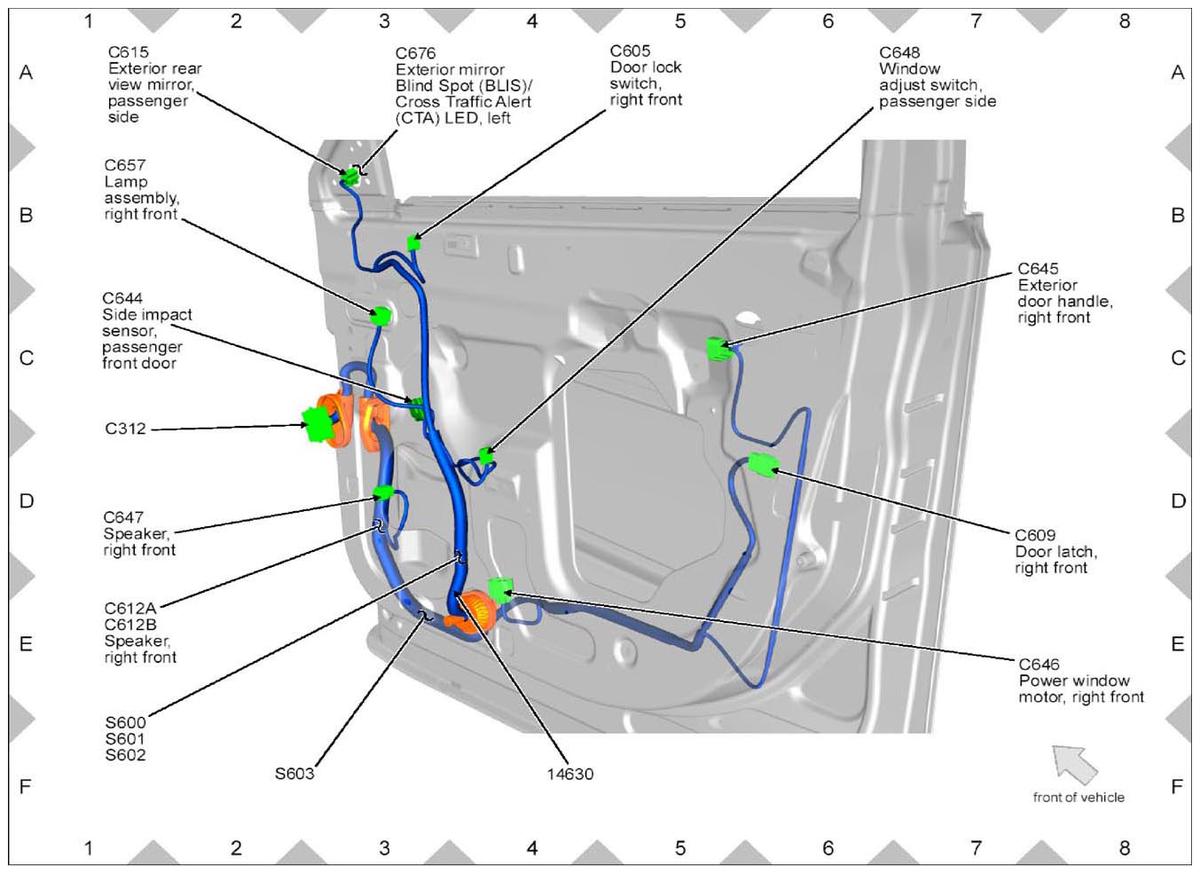

Fig 27: RH Front Door Wiring Harness Connectors Location

G09280218

Courtesy of FORD MOTOR CO.

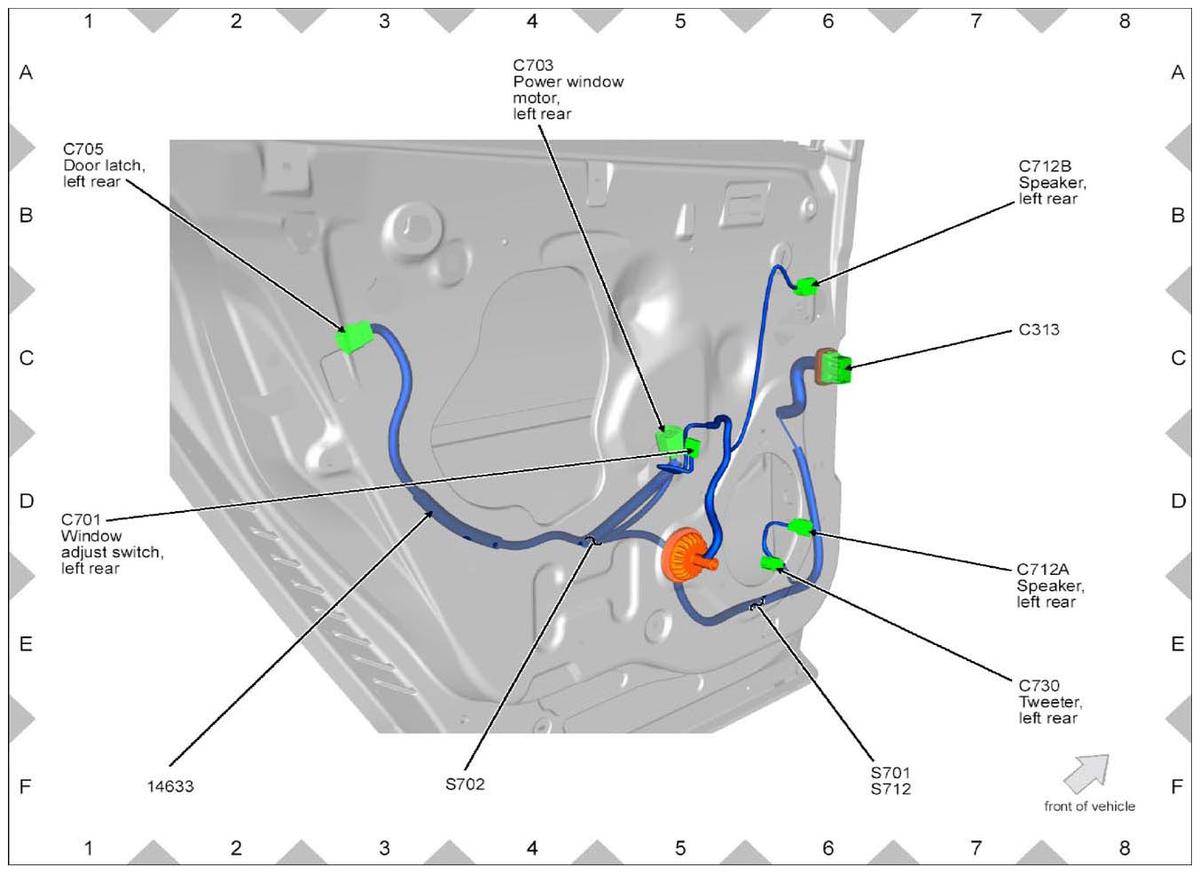

Fig 28: LH Rear Door Wiring Harness Connectors Location

G09280219

Courtesy of FORD MOTOR CO.

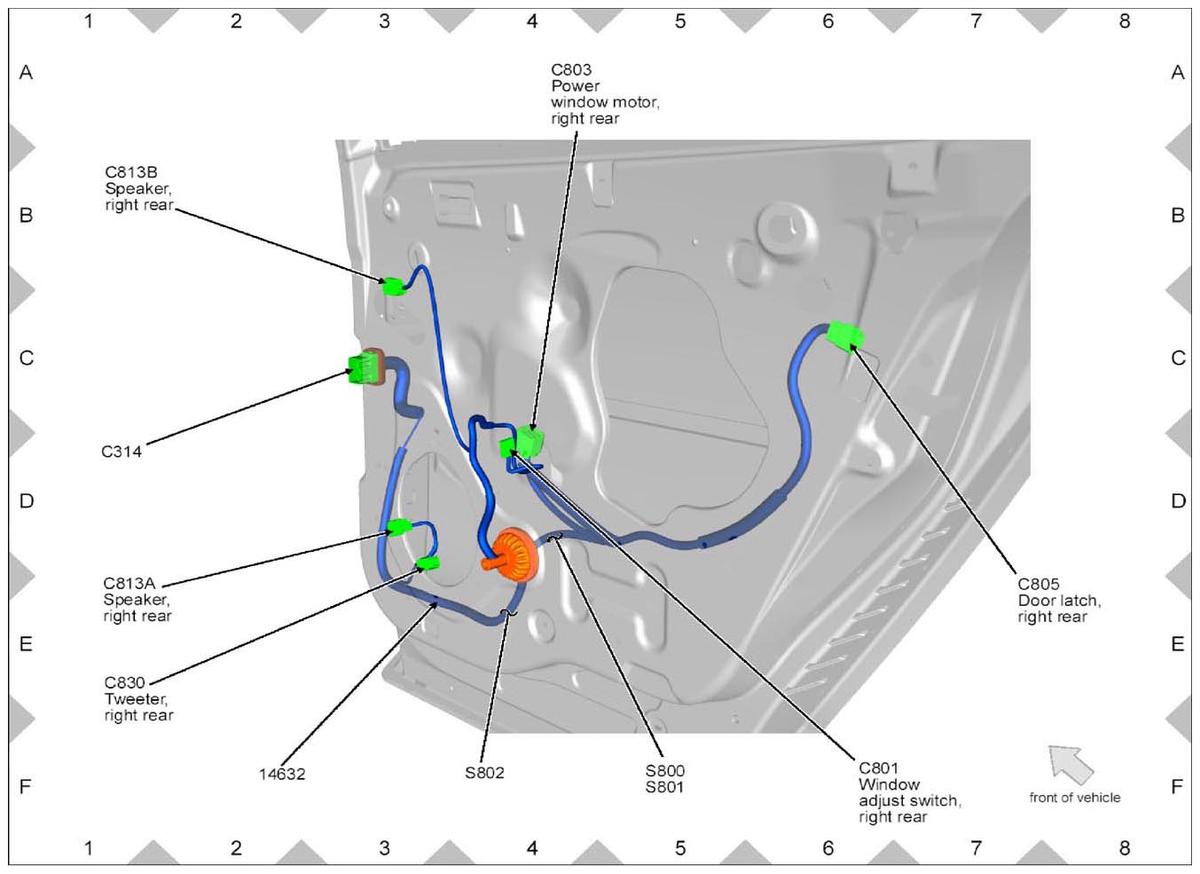

Fig 29: RH Rear Door Wiring Harness Connectors Location

G09280220

Courtesy of FORD MOTOR CO.

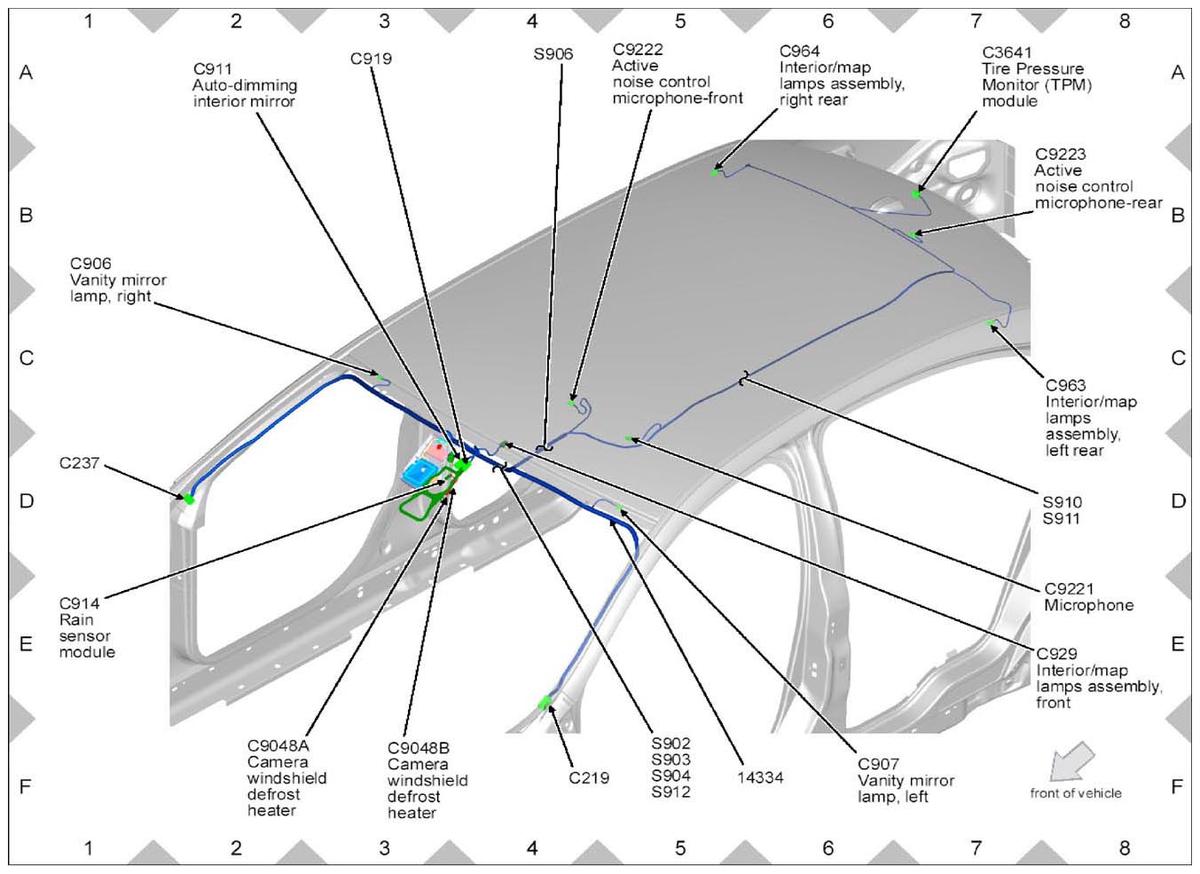

Fig 30: Roof Wiring Harness Connectors Location (1 Of 2)

G09280221

Courtesy of FORD MOTOR CO.

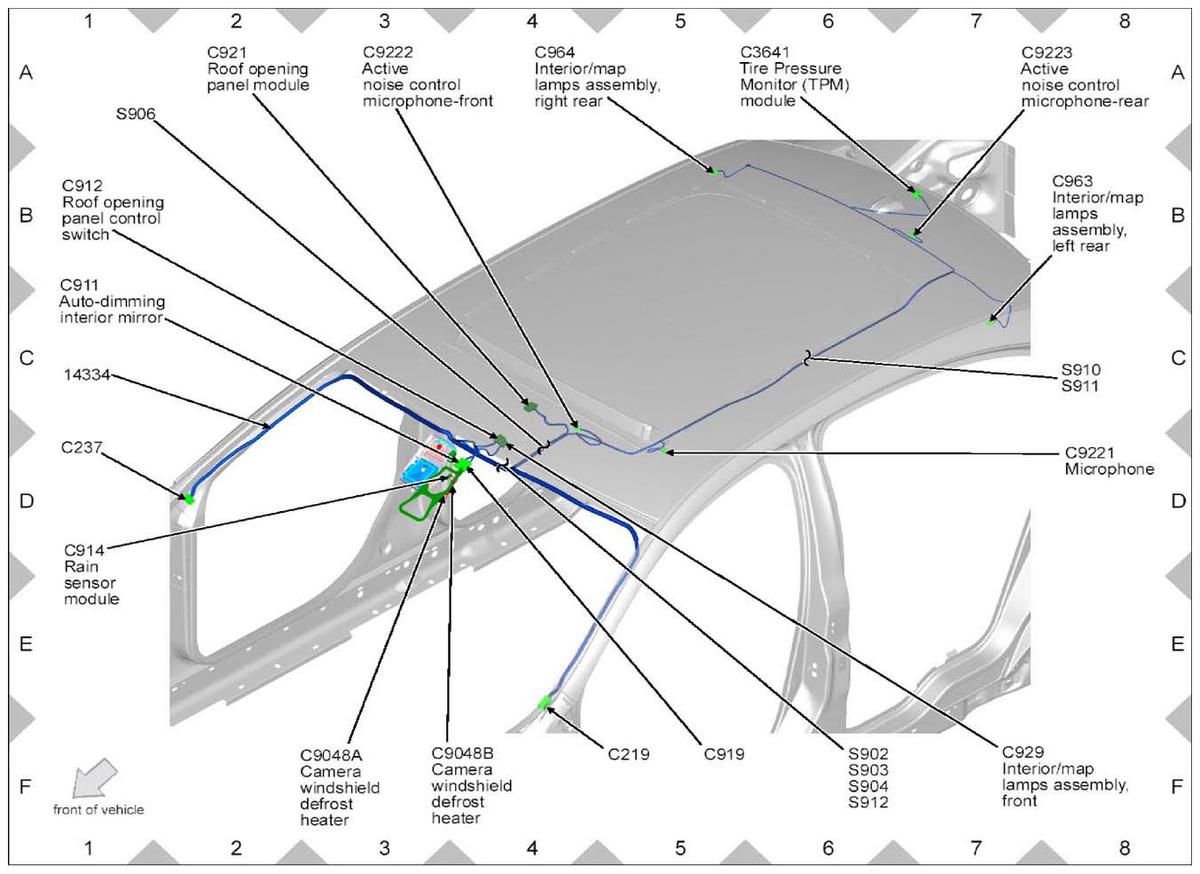

Fig 31: Roof Wiring Harness Connectors Location (2 Of 2)

G09280222

Courtesy of FORD MOTOR CO.
