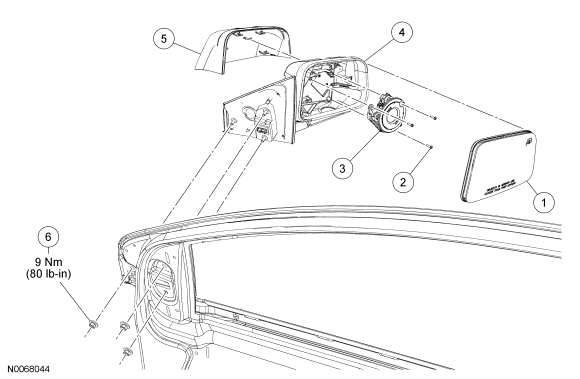

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior rear view mirror glass |
| 2 | - | Exterior rear view mirror motor mounting screw (3 required) |
| 3 | 17D696 | Exterior rear view mirror motor |
| 4 | 17682 LH/ 17683 RH | Exterior rear view mirror housing |
| 5 | 17D743 LH/ 17D742 RH | Exterior rear view mirror cover |
| 6 | N621906 | Exterior rear view mirror mounting nut (3 required) |
- For additional information, refer to the appropriate procedures.
