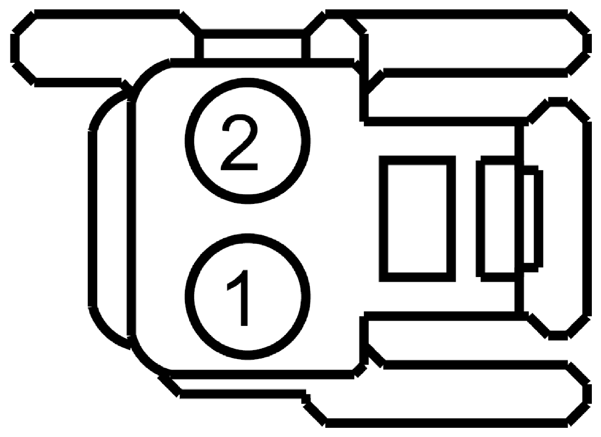

CLOCKSPRING Connector End View (C218D)

Fig 1: Identifying Clockspring Connector (C218D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS72 (YE-BU)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +
2	RHS72 (YE-GY)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -

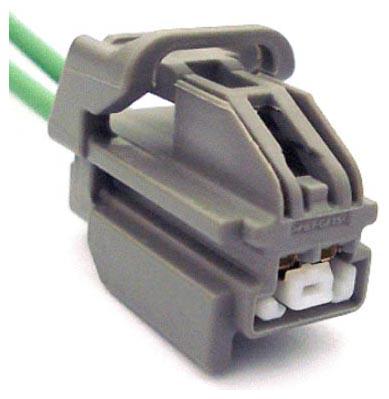

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

Service Part Number: 3U2Z-14S411-AEB  Gauge: 14  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Module - Heated Seat Motor - Adjustable Pedal Motor - Decklid/Liftgate Sensor - Air Charge Temperature Sensor - EATC In Car Temperature Speaker - Subwoofer Switch - Adjustable Pedal Switch - Brake Deactivation Switch - Brake Pressure Switch - Clutch Pedal Position Switch - Stop Lamp Switch - Third Row Power Folding Seat
