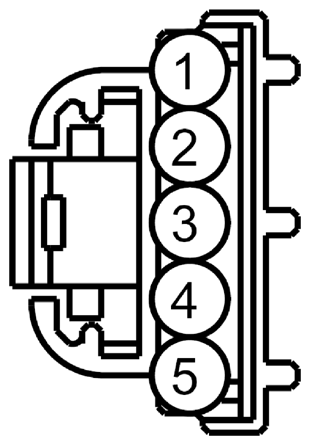

Head Up Display (HUD) Module Connector End View (C2395)

Fig 1: Identifying Head Up Display Module Connector (C2395)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD375 (BK-BU)	22	GROUND - TUNNEL # 2ND POINT (BC3T)
2	VDB05 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
3	VDB04 (WH-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
4	CBP35 (BU-OG)	22	FUSE - 35 OR CIRCUIT BREAKER
5	SBP11 (YE-RD)	22	FUSE - 11 OR CIRCUIT BREAKER

Available Pigtail Kits

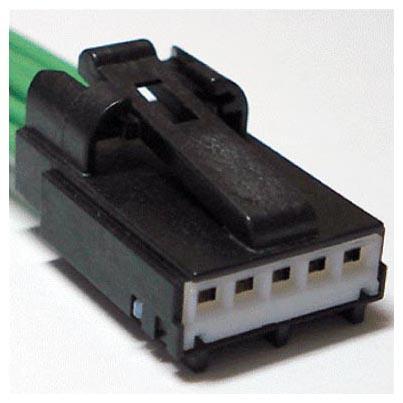

Pigtail Kit Part Number WPT-881	Service Part Number: 6U2Z-14S411-SA  Gauge: 18  Pin material: Tin  Cavities: 5  Vehicle Uses Mirror - Vanity Switch - Cold Engine Lockout Switch - Convertable Top

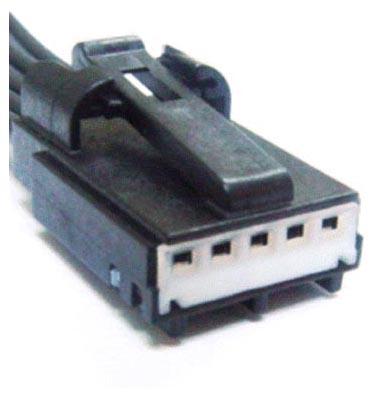

Pigtail Kit Part Number WPT-983	Service Part Number: 6U2Z-14S411-SB  Gauge: 18  Pin material: Silver  Cavities: 5  Vehicle Uses Module - Heads Up Display Switch - Overdrive Cancel Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front)
