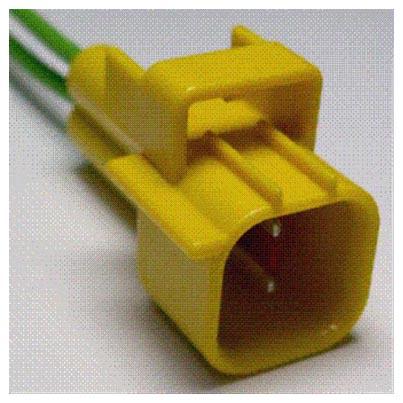

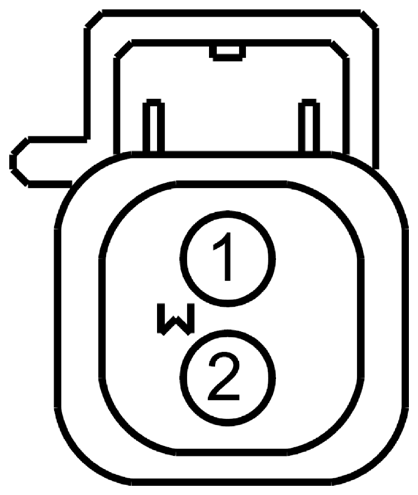

Side Air Bag Module, Driver Connector End View (C367)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR105 (GN-BU) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + | |
| 2 | RR105 (GY-YE) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1244 | Service Part Number: AU2Z-14S411-BMA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
