Vehicle Dynamics Module (VDM) Connector End View (C4396C)

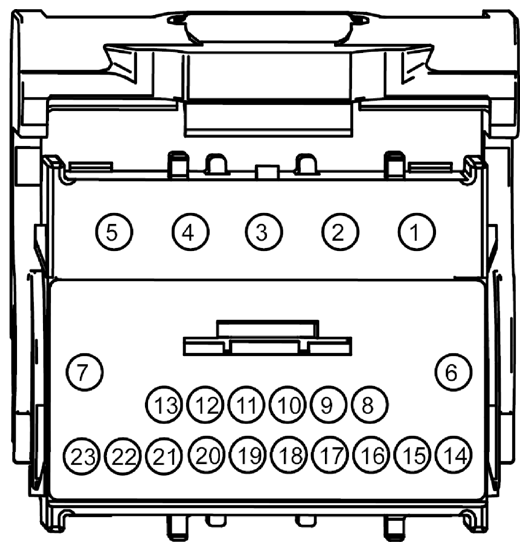

Fig 1: Identifying Vehicle Dynamics Module Connector (C4396C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	VCA23 (BU-WH)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
15	VCA24 (GN-OG)	22	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
