Home › Lincoln › 2014 › MKS Base, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission - 6F50/6F55 › Disassembly And Assembly › Main Control - Overhaul › Notes

Main Control - Overhaul: Notes

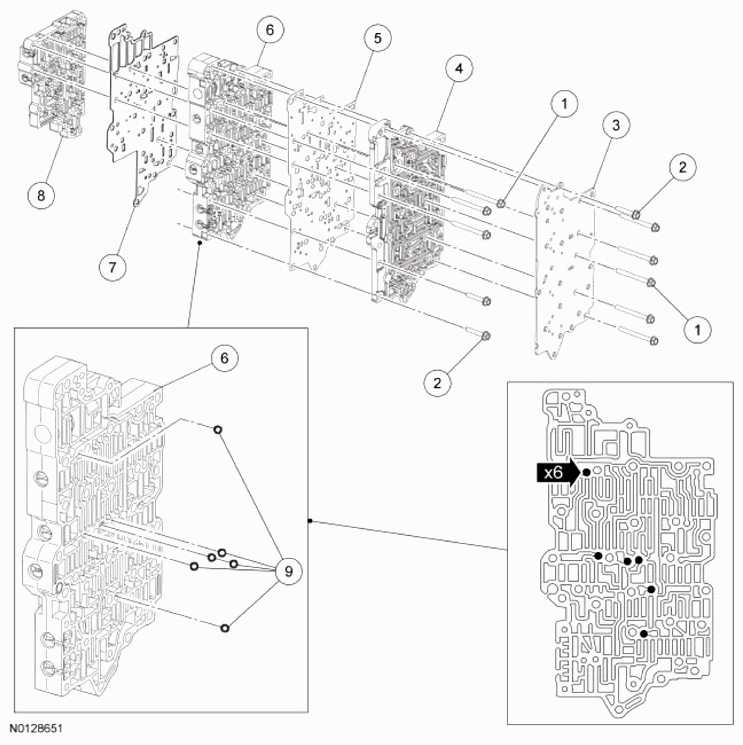

Fig 1: Exploded View Of Main Control - Overhaul
G09659565Courtesy of FORD MOTOR CO.
