Camera Windshield Defrost Heater: Installation

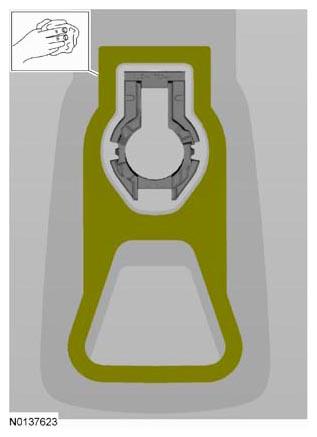

  1. NOTE: Use an alcohol pad to remove the residual adhesive. If required a plastic scraper may be used.
    G08663412
  2. Remove the protective covering from the new camera windshield defrost heater.

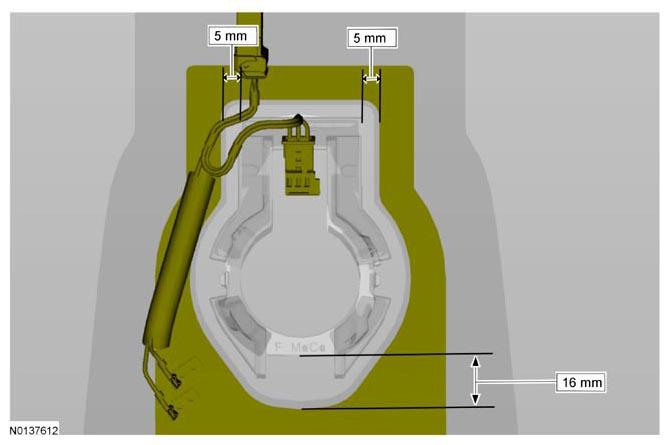

  3. Align the camera windshield defrost heater.
    G08663413
  4. NOTE: Apply even pressure to adhere the camera windshield defrost heaterr to the windshield.
    G08663411
  5. Install the rain sensor. For additional information, refer to WIPERS AND WASHERS .
