Component Location View

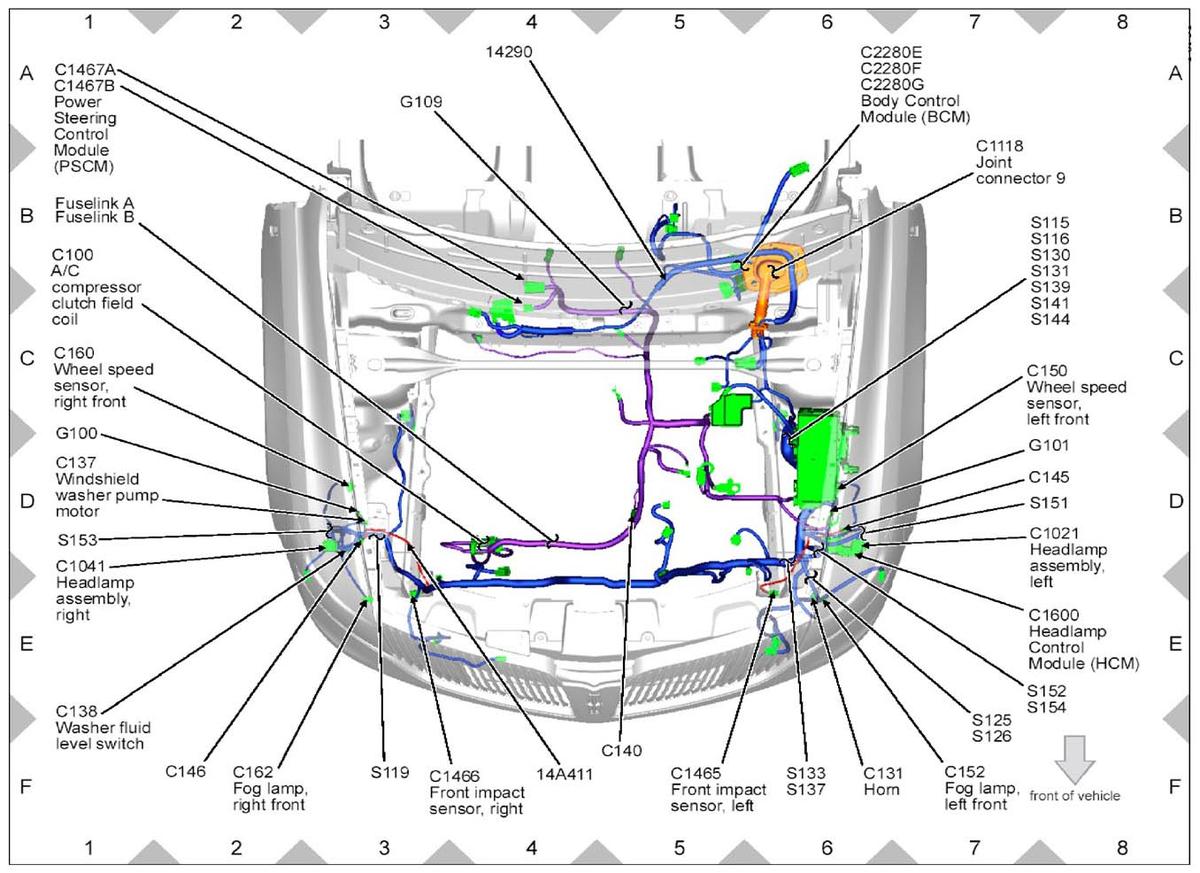

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)

G09282465

Courtesy of FORD MOTOR CO.

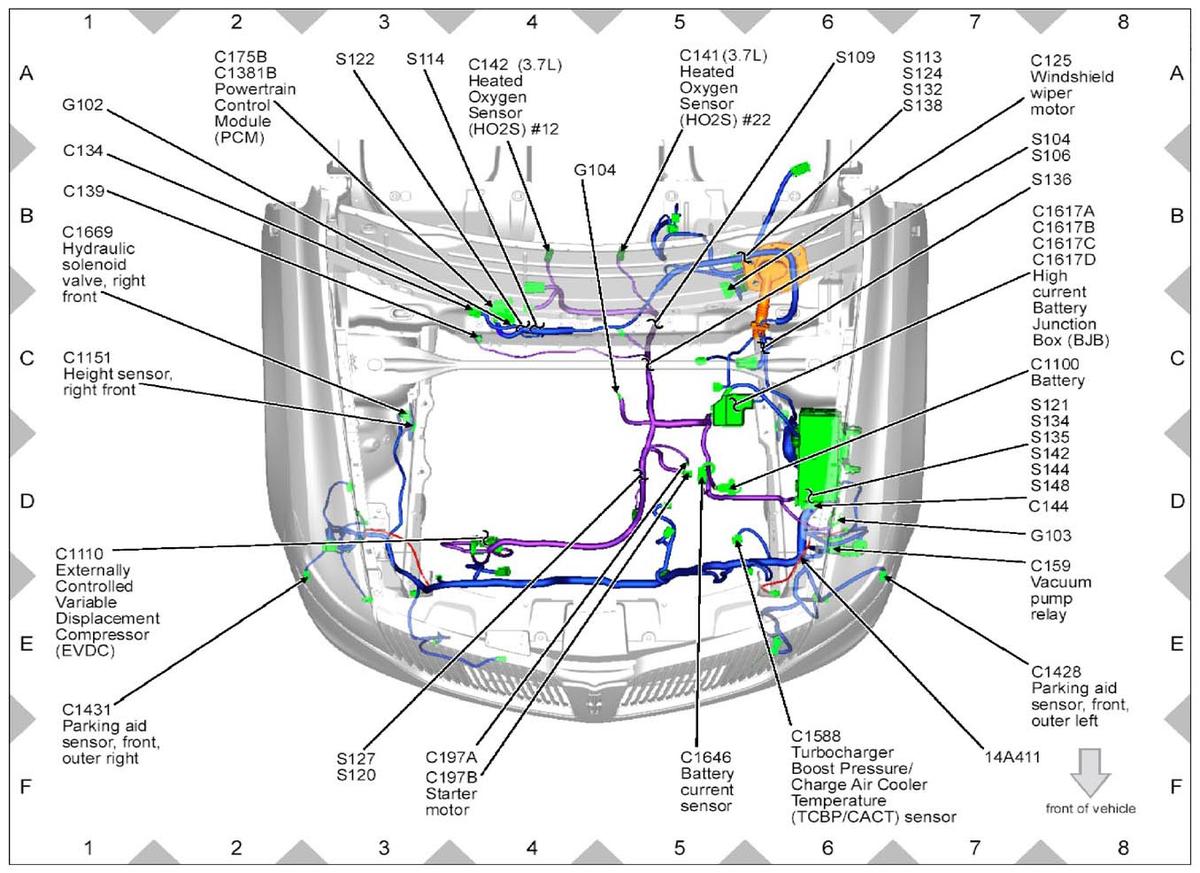

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)

G09282466

Courtesy of FORD MOTOR CO.

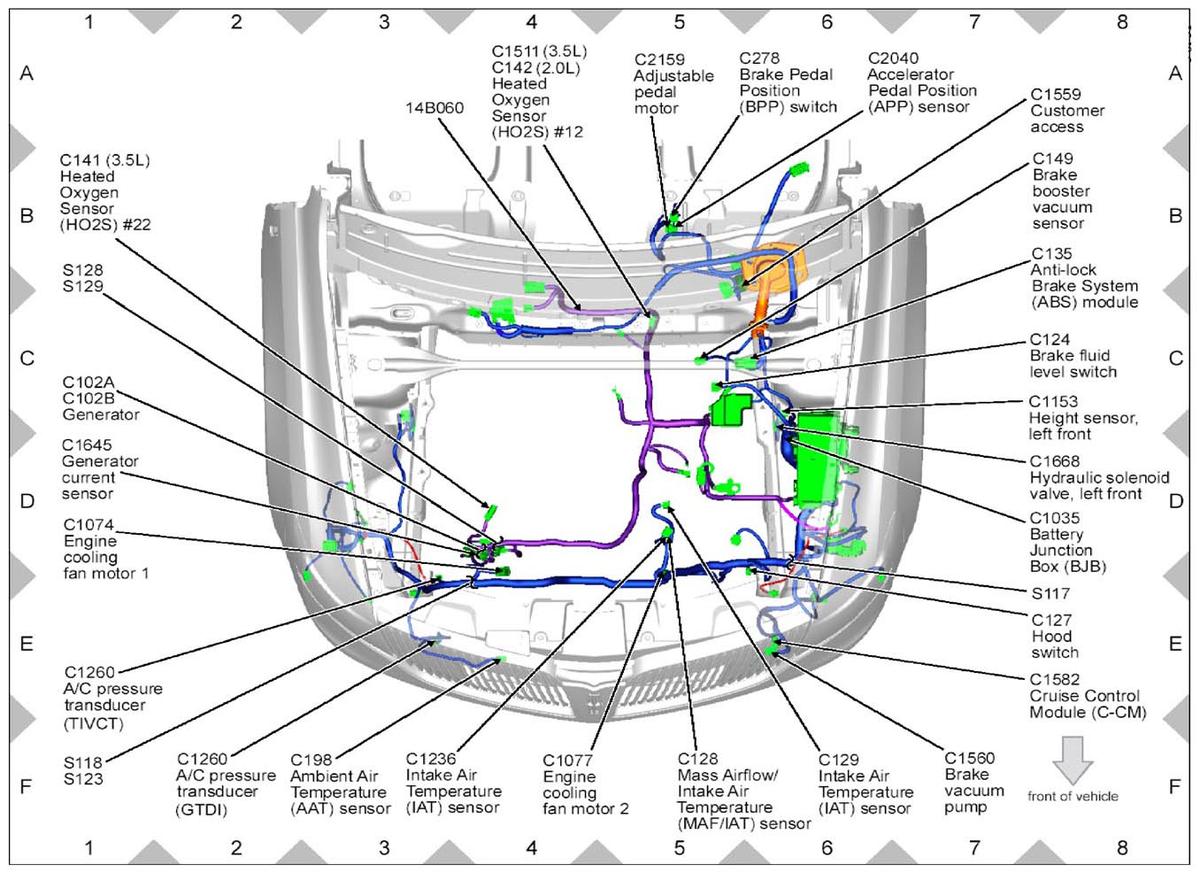

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)

G09282467

Courtesy of FORD MOTOR CO.

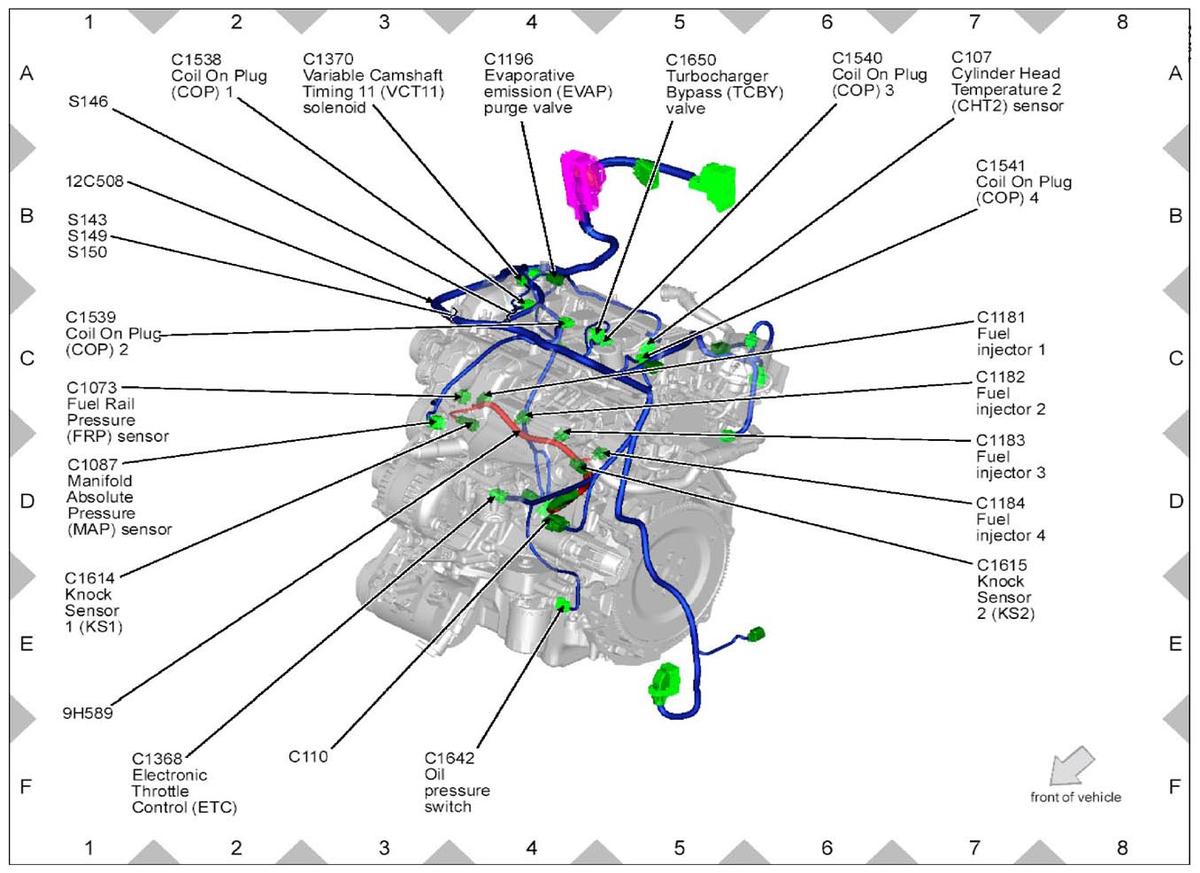

Fig 4: Engine Wiring Harness Connectors Location (1 Of 6)

G09282468

Courtesy of FORD MOTOR CO.

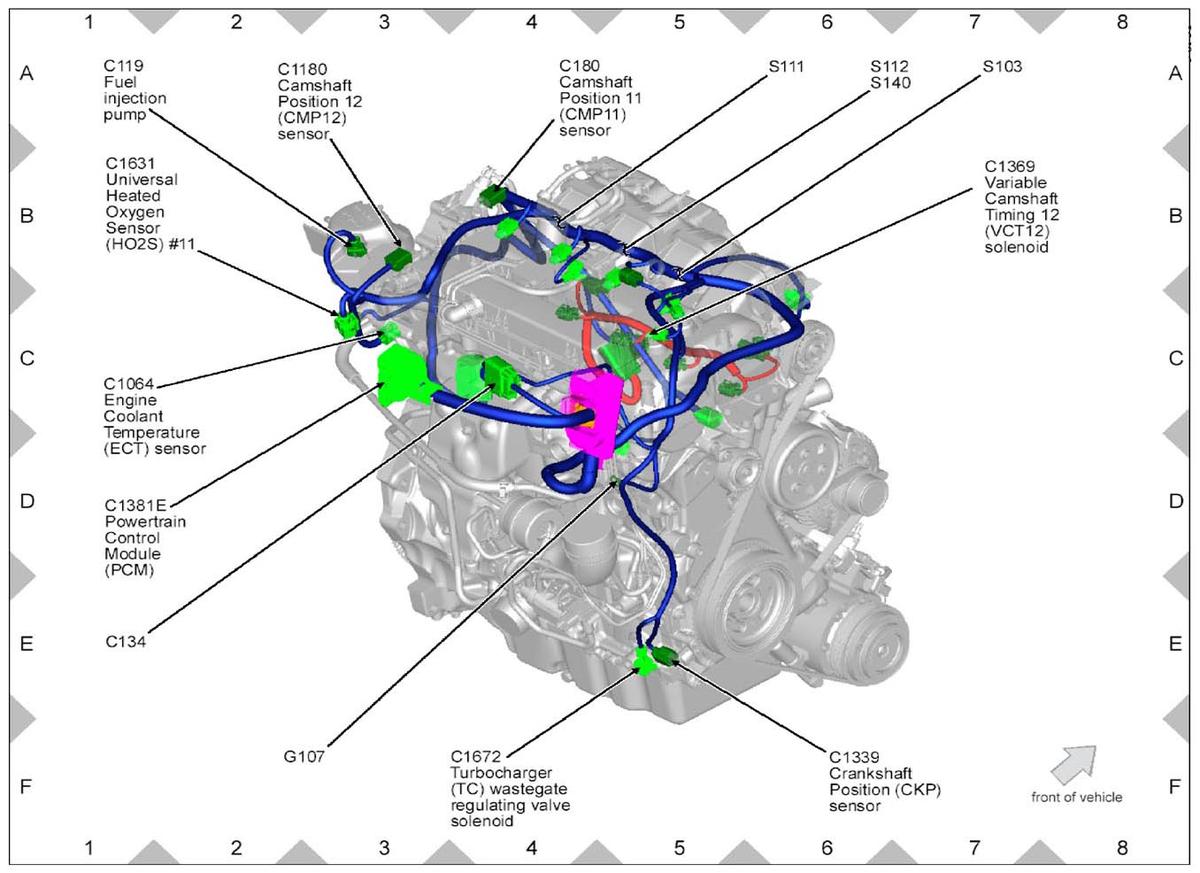

Fig 5: Engine Wiring Harness Connectors Location (2 Of 6)

G09282469

Courtesy of FORD MOTOR CO.

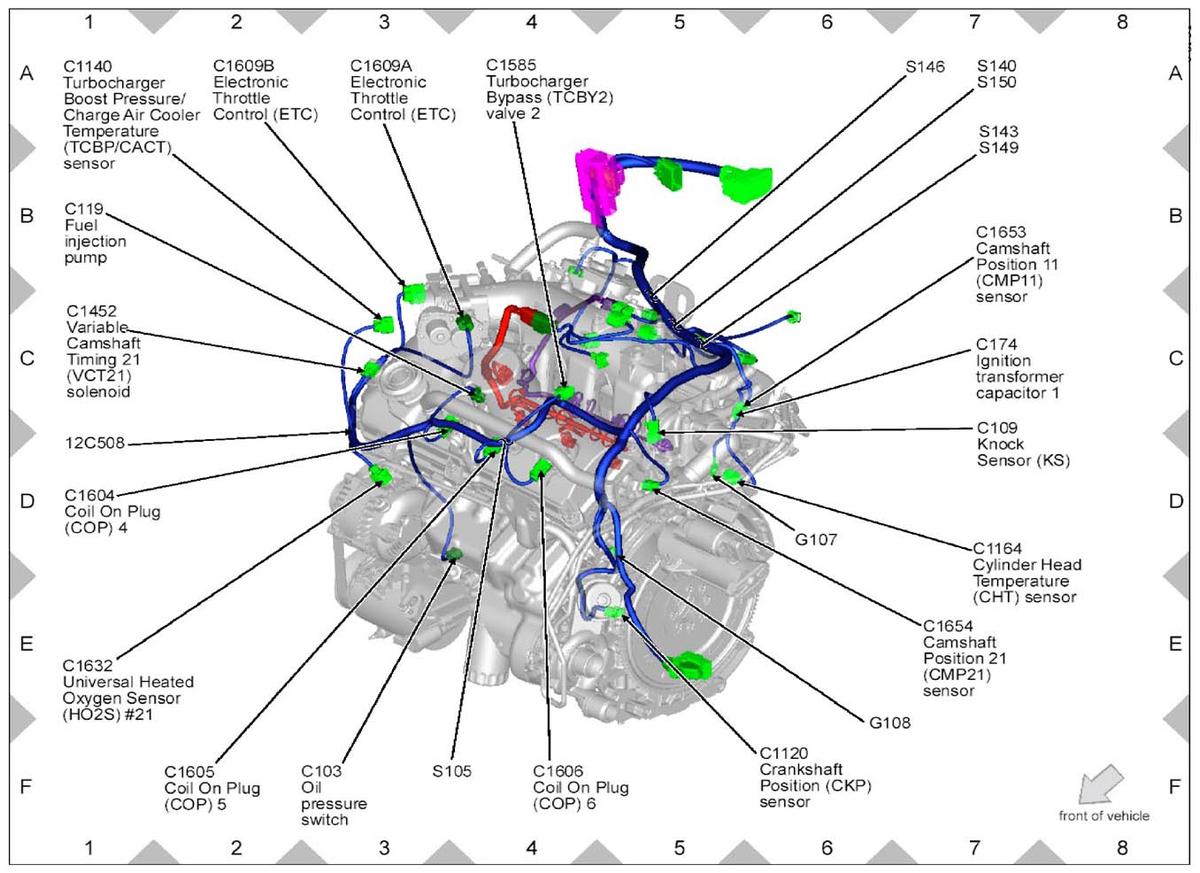

Fig 6: Engine Wiring Harness Connectors Location (3 Of 6)

G09282470

Courtesy of FORD MOTOR CO.

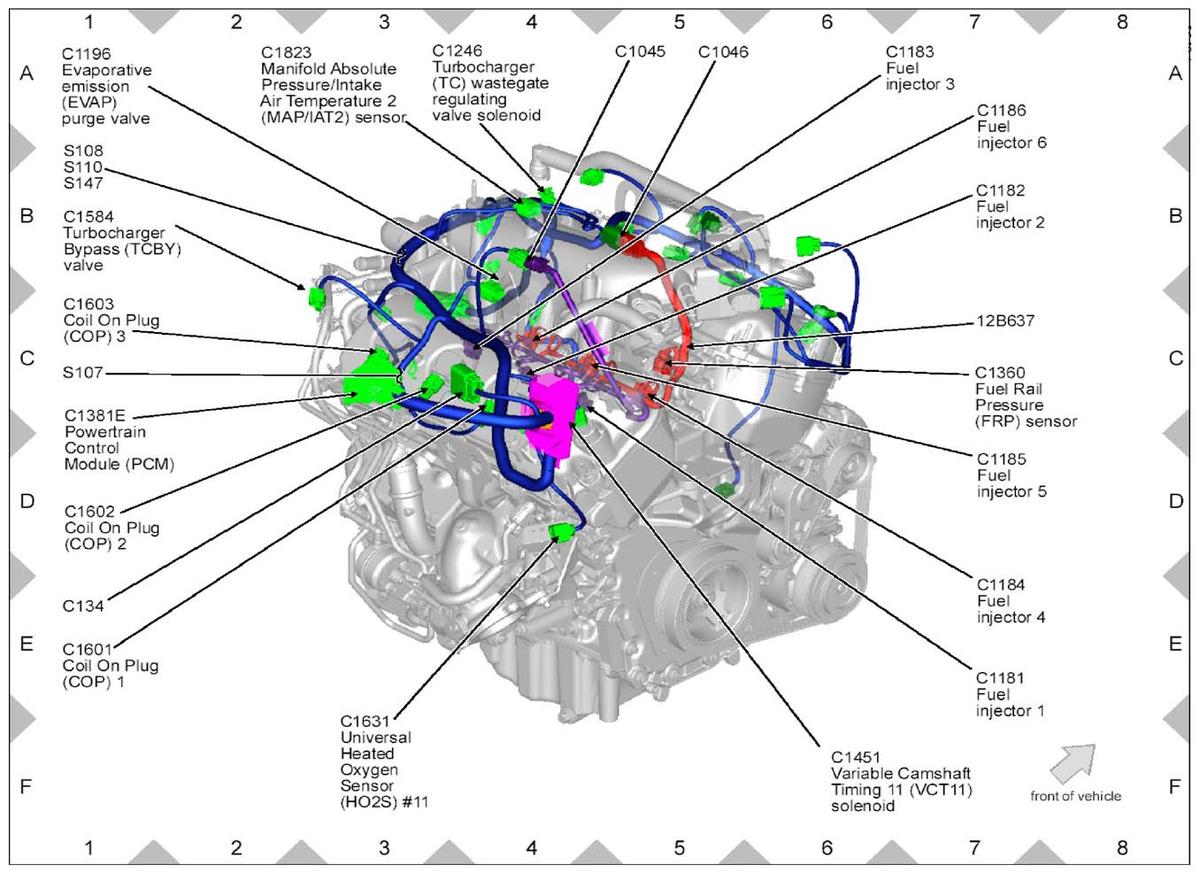

Fig 7: Engine Wiring Harness Connectors Location (4 Of 6)

G09282471

Courtesy of FORD MOTOR CO.

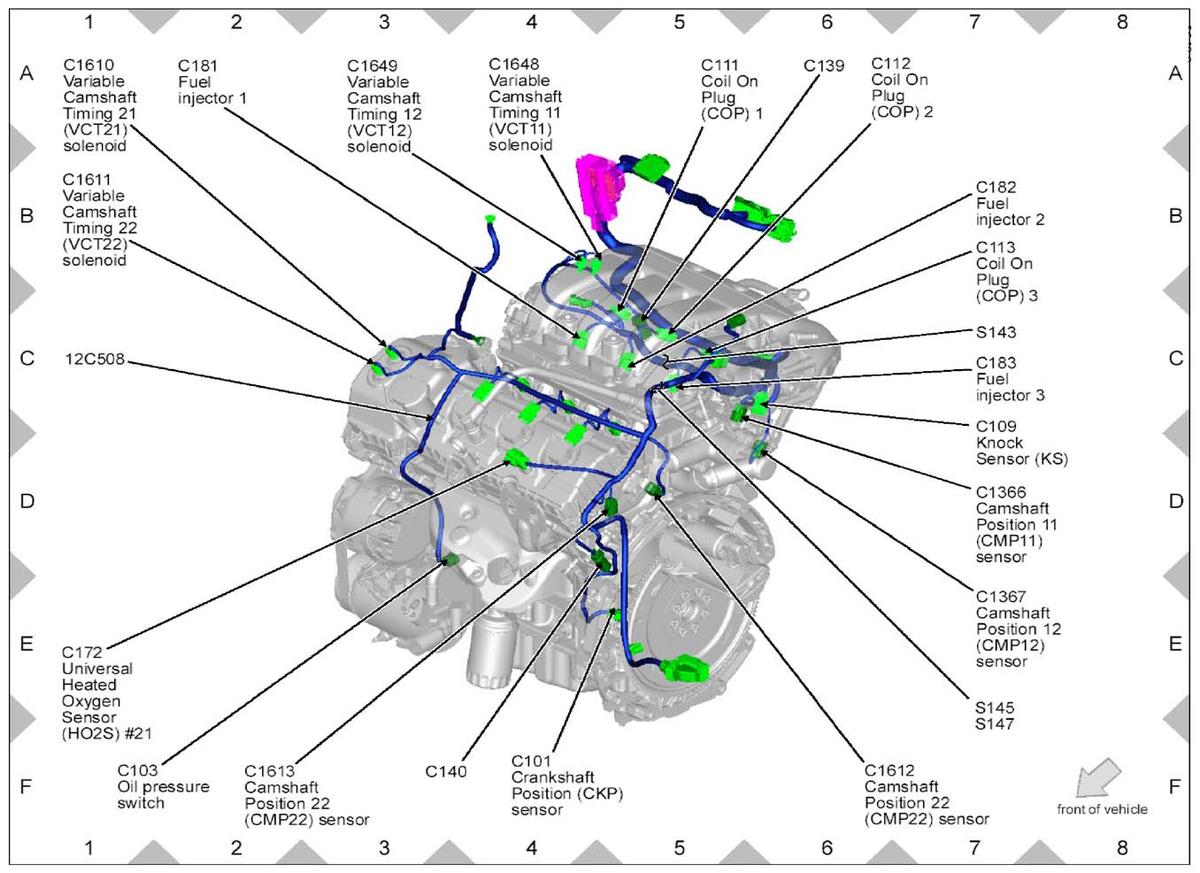

Fig 8: Engine Wiring Harness Connectors Location (5 Of 6)

G09282472

Courtesy of FORD MOTOR CO.

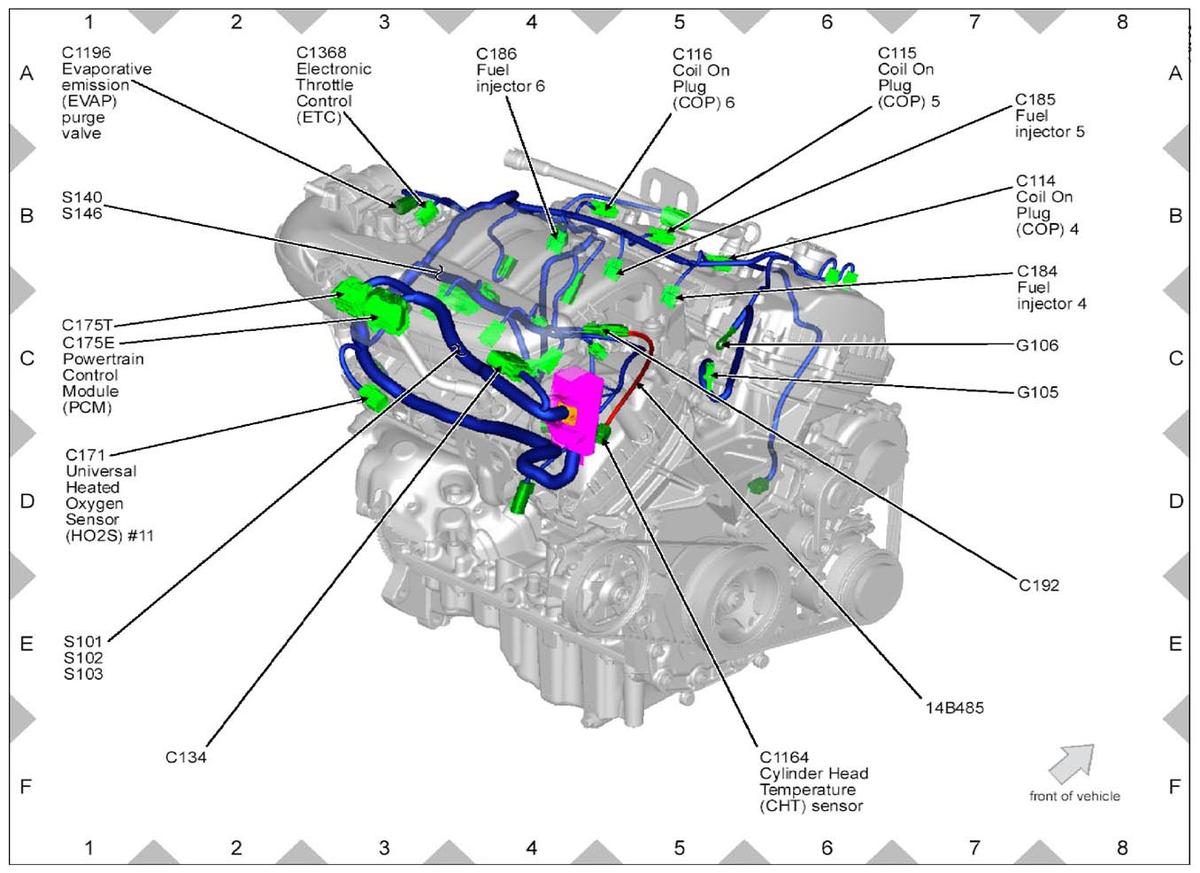

Fig 9: Engine Wiring Harness Connectors Location (6 Of 6)

G09282473

Courtesy of FORD MOTOR CO.

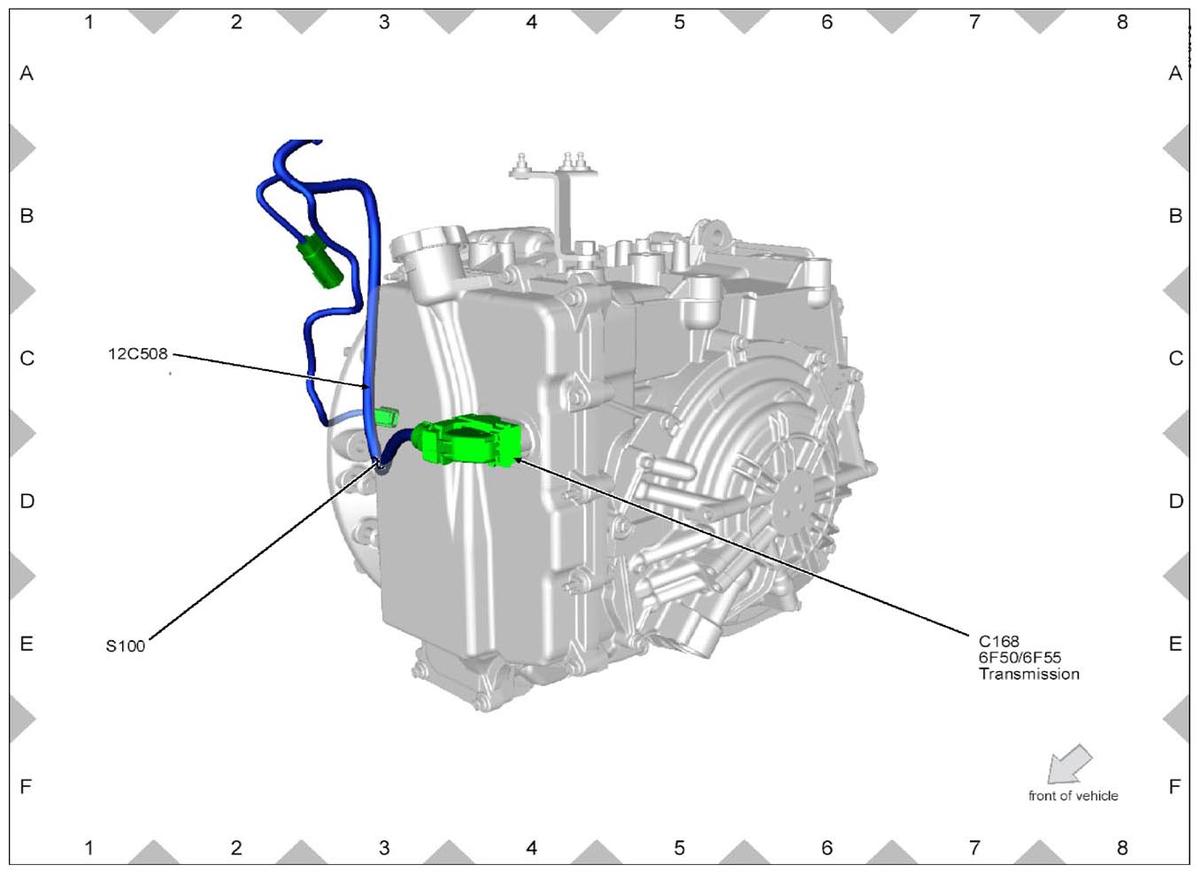

Fig 10: Transmission Wiring Harness Connectors Location (1 Of 2)

G09282474

Courtesy of FORD MOTOR CO.

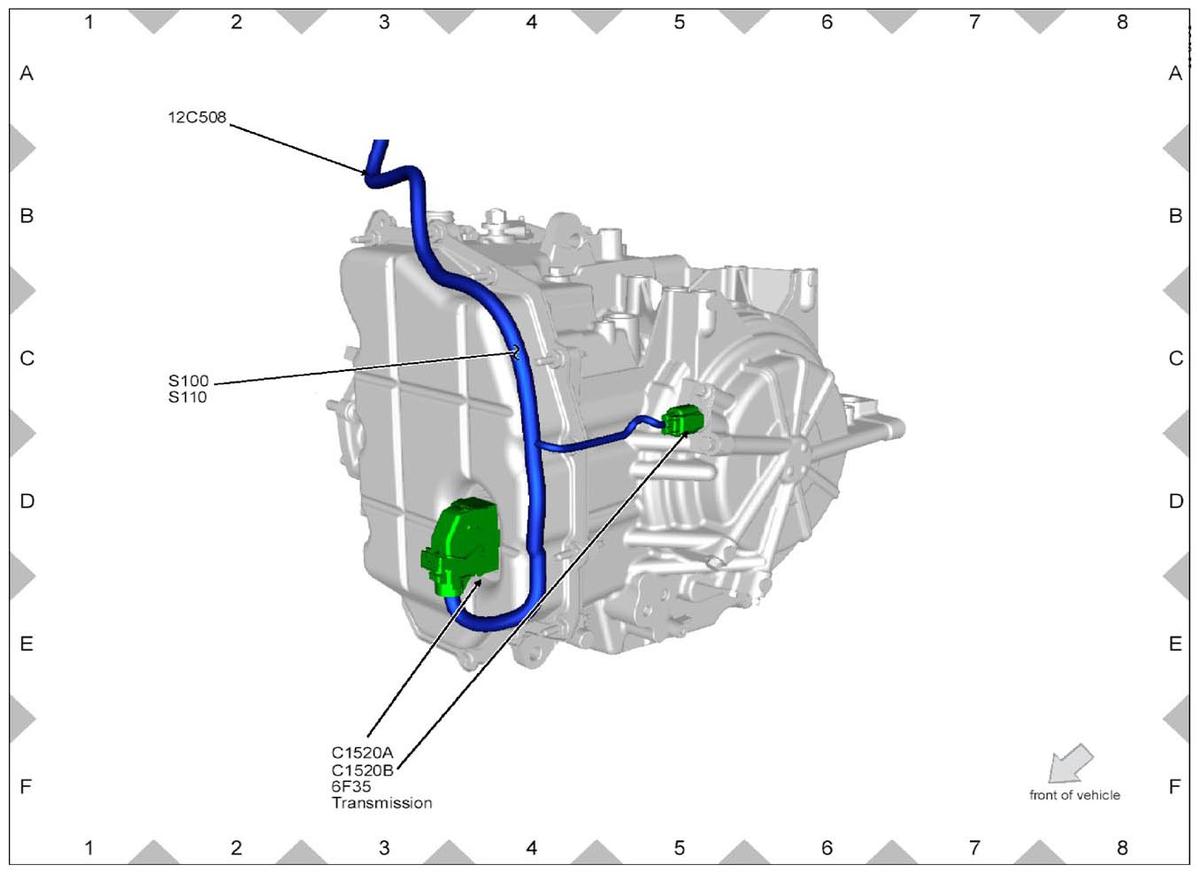

Fig 11: Transmission Wiring Harness Connectors Location (2 Of 2)

G09282475

Courtesy of FORD MOTOR CO.

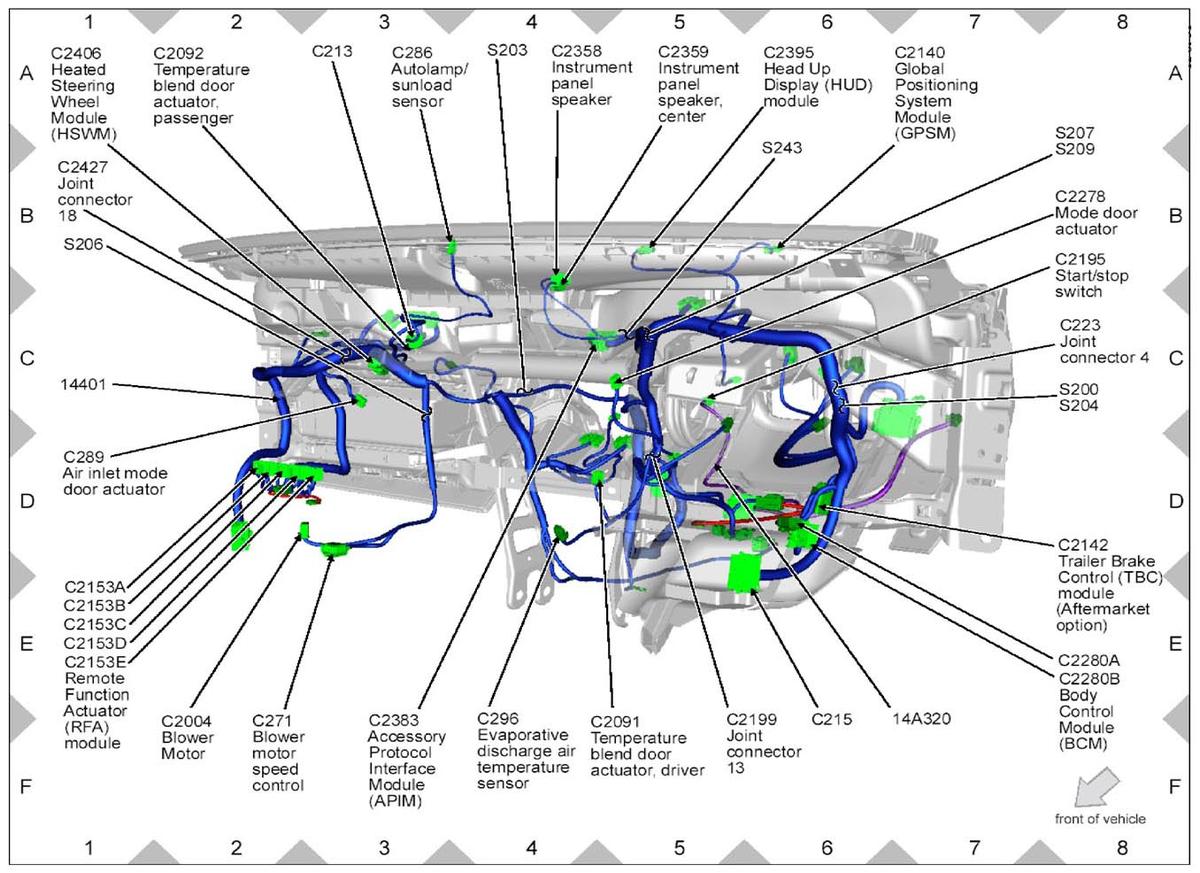

Fig 12: Dashboard Wiring Harness Connectors Location (1 Of 2)

G09282476

Courtesy of FORD MOTOR CO.

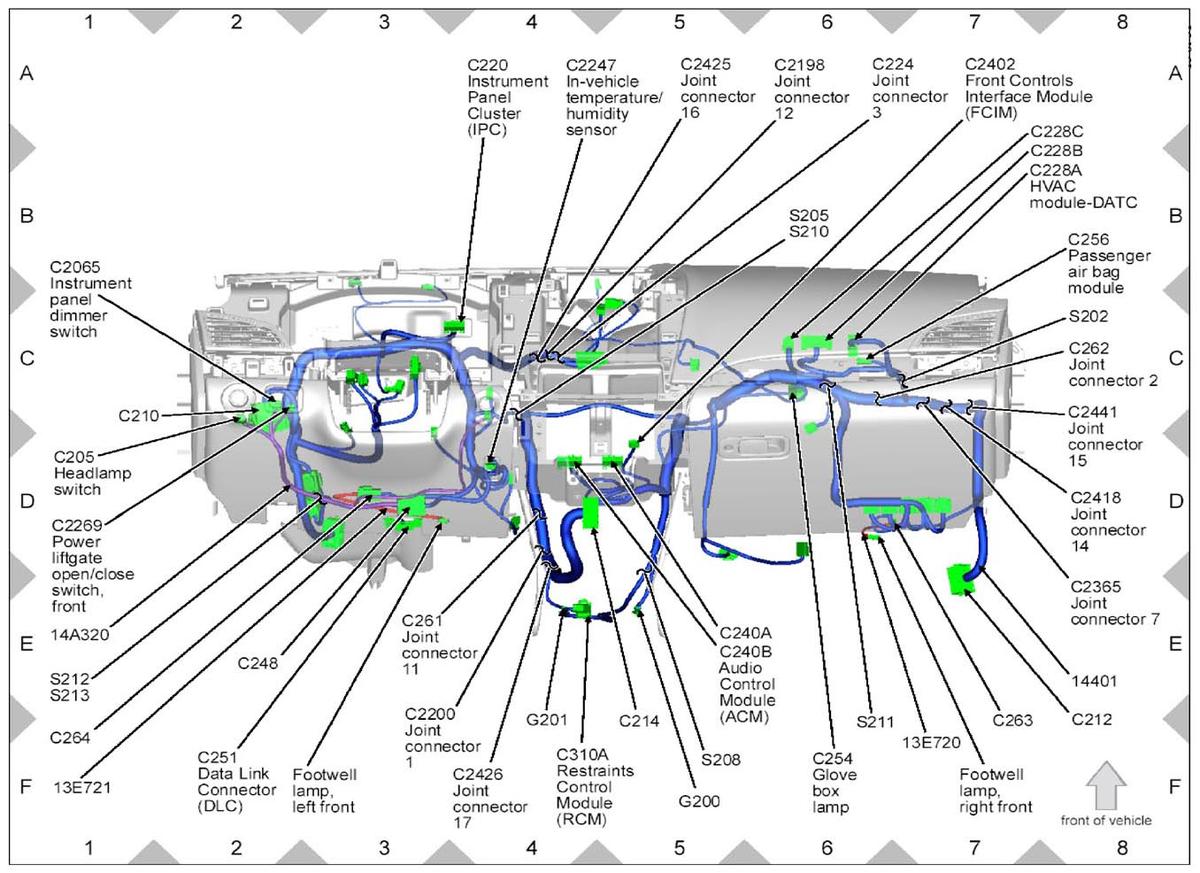

Fig 13: Dashboard Wiring Harness Connectors Location (2 Of 2)

G09282477

Courtesy of FORD MOTOR CO.

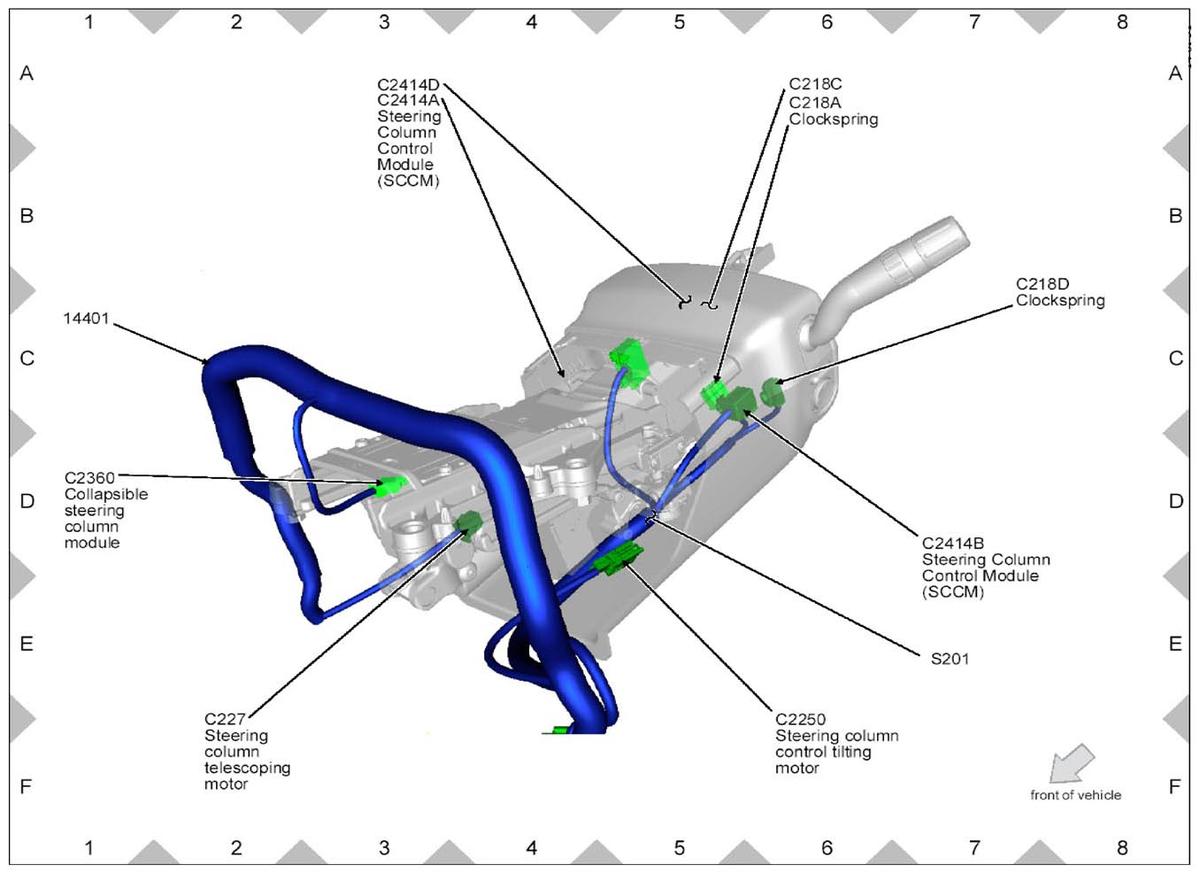

Fig 14: Steering Column Wiring Harness Connectors Location

G09282478

Courtesy of FORD MOTOR CO.

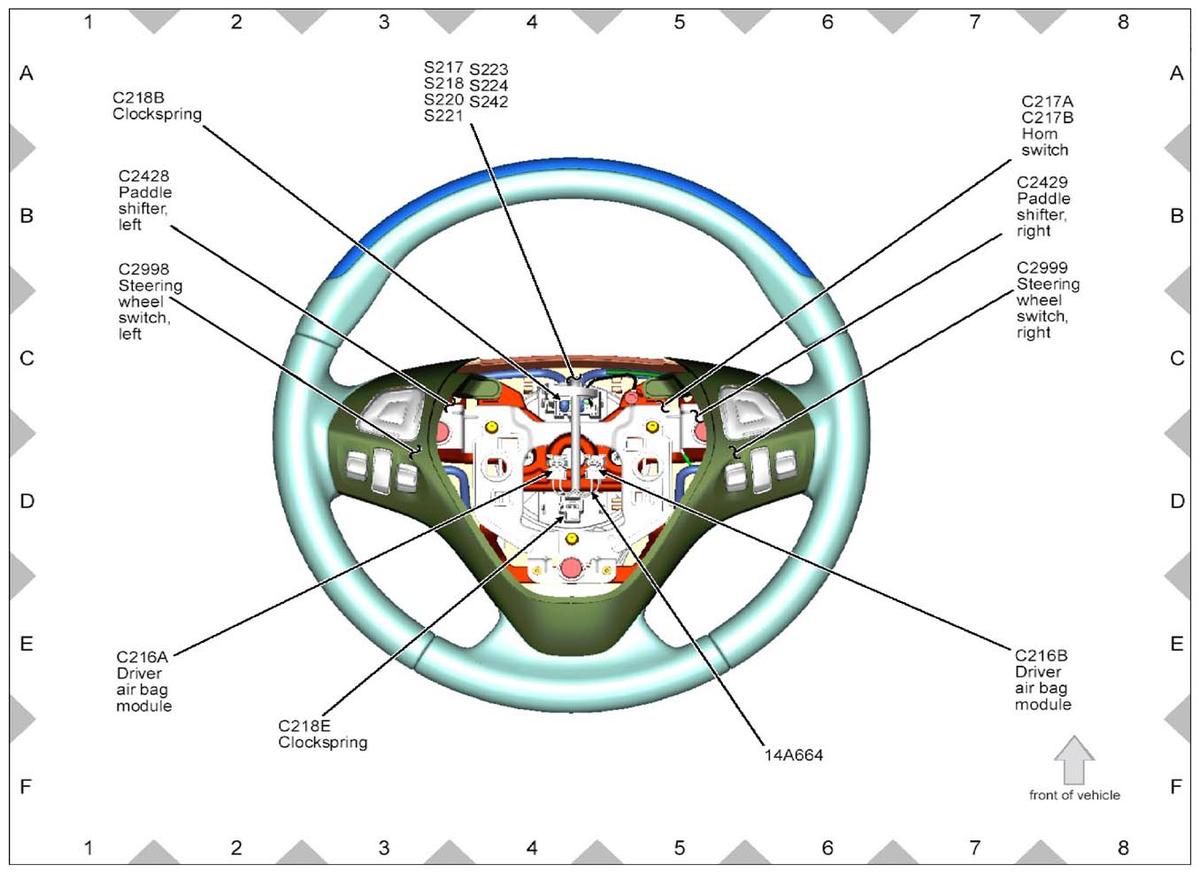

Fig 15: Steering Wheel Wiring Harness Connectors Location

G09282479

Courtesy of FORD MOTOR CO.

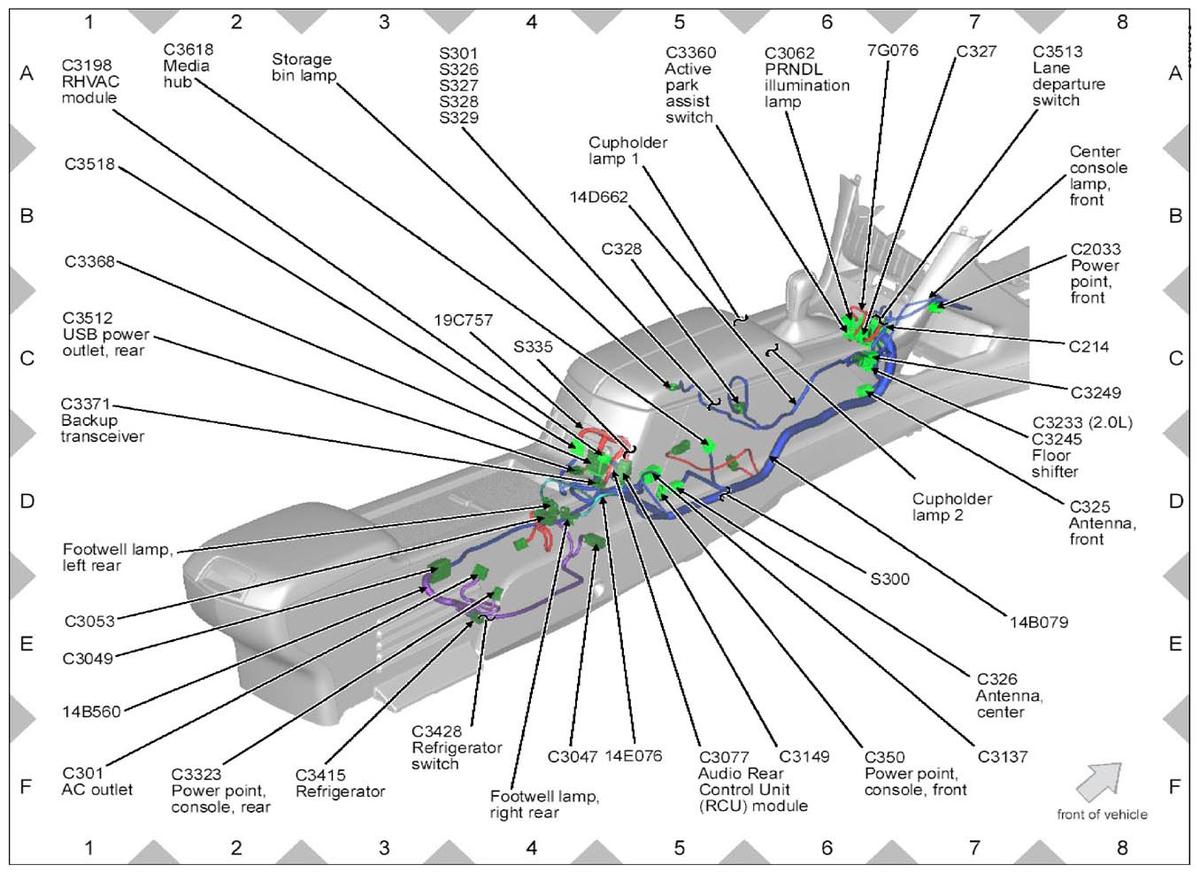

Fig 16: Center Console Wiring Harness Connectors Location

G09282480

Courtesy of FORD MOTOR CO.

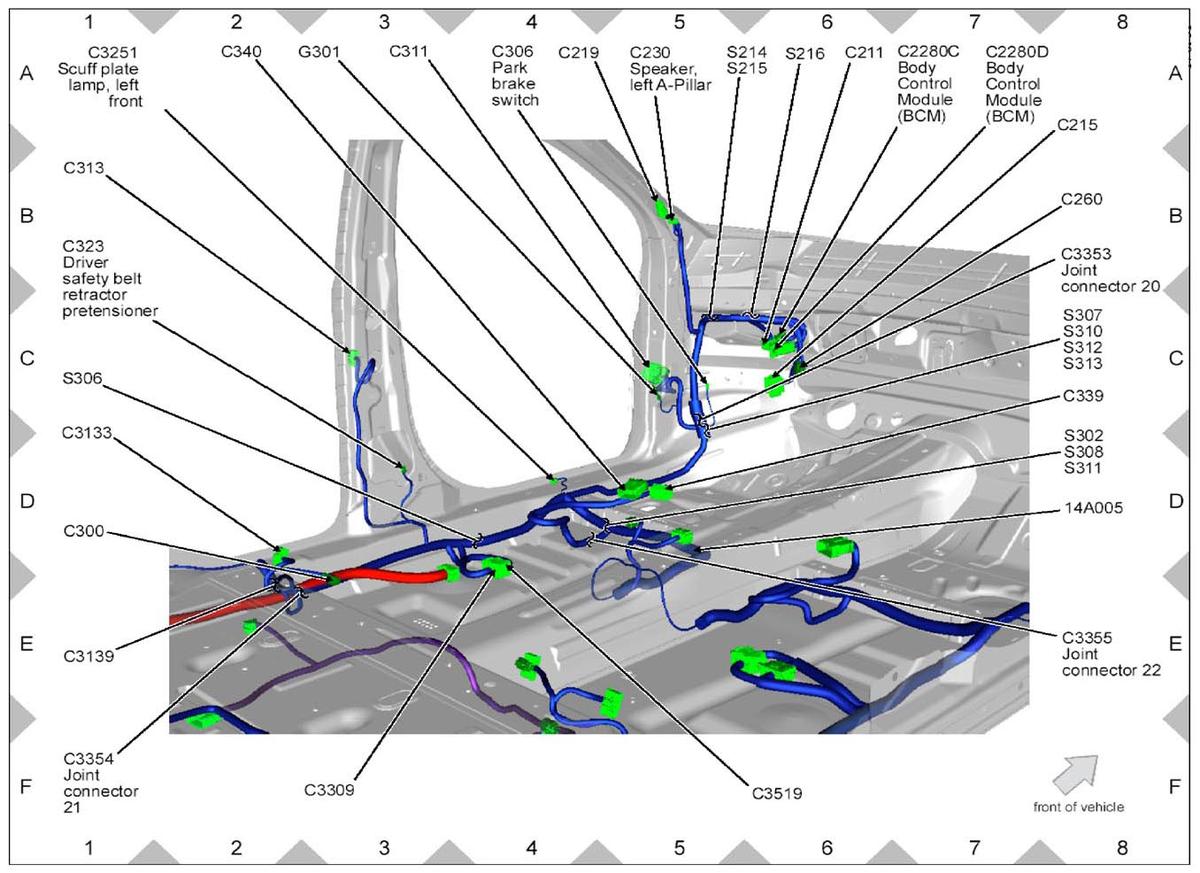

Fig 17: LH Front Compartment Wiring Harness Connectors Location

G09282481

Courtesy of FORD MOTOR CO.

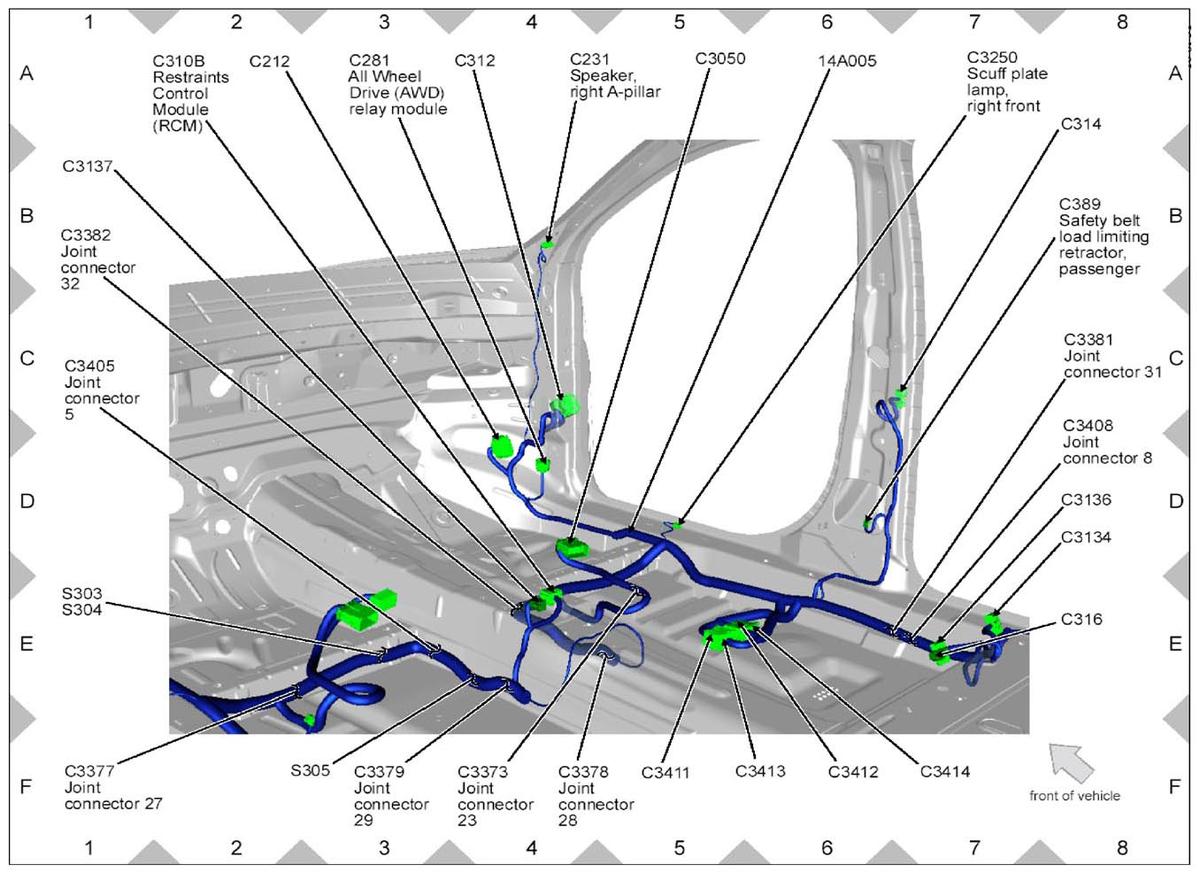

Fig 18: RH Front Compartment Wiring Harness Connectors Location

G09282482

Courtesy of FORD MOTOR CO.

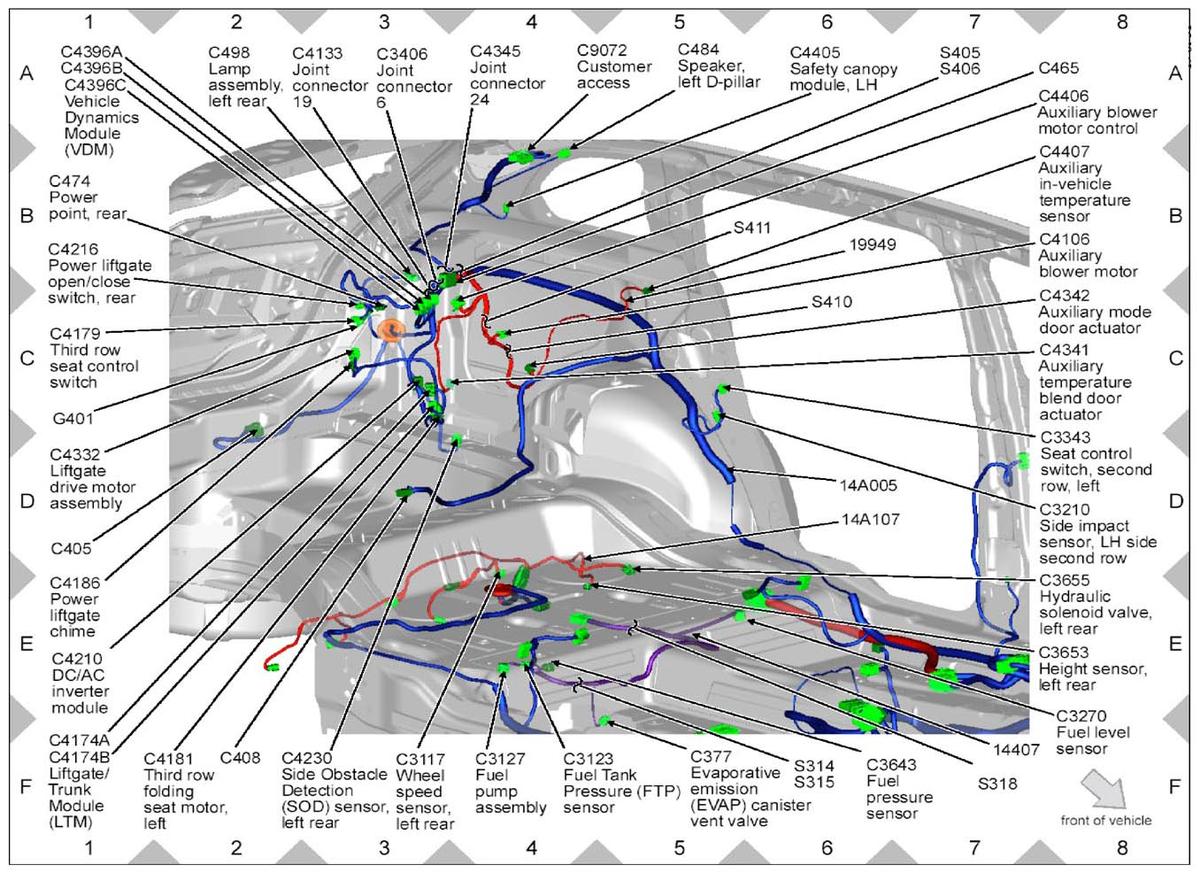

Fig 19: LH Rear Compartment Wiring Harness Connectors Location

G09282483

Courtesy of FORD MOTOR CO.

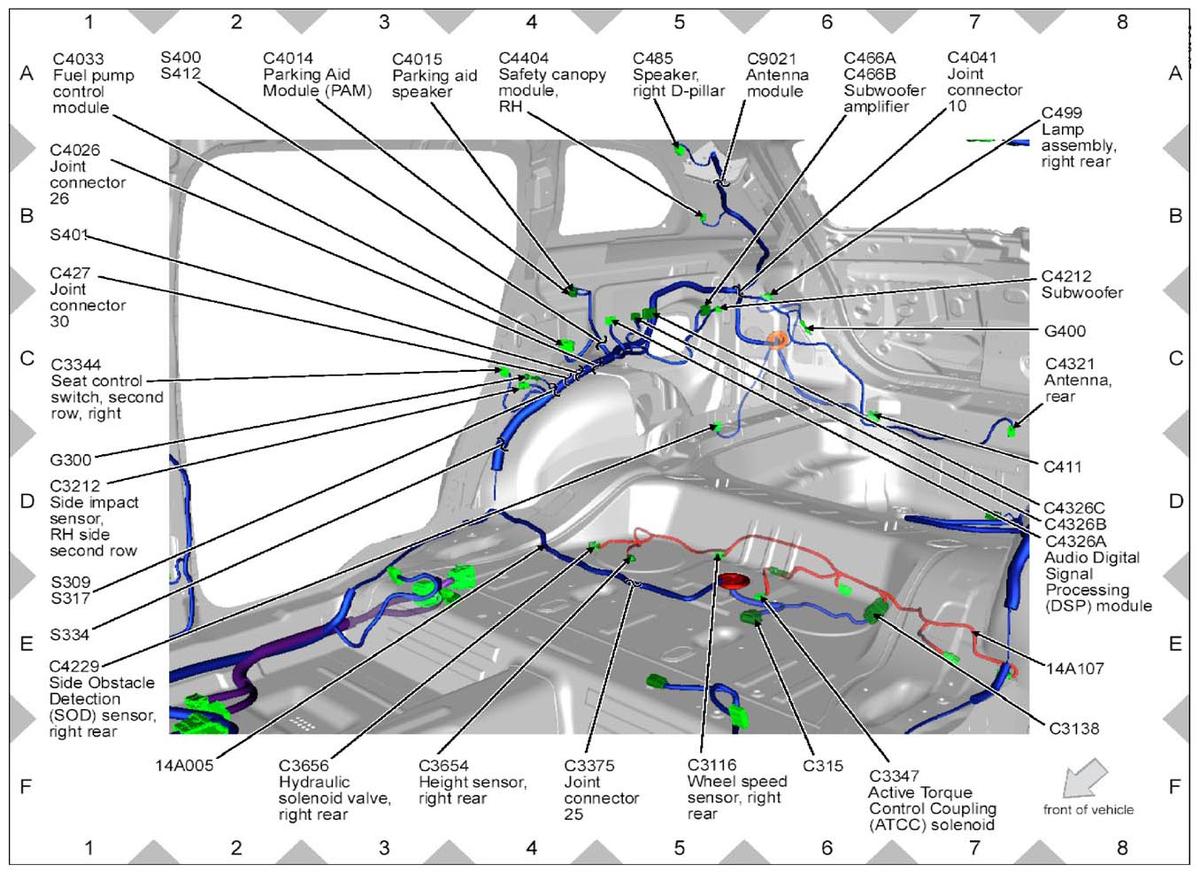

Fig 20: RH Rear Compartment Wiring Harness Connectors Location

G09282484

Courtesy of FORD MOTOR CO.

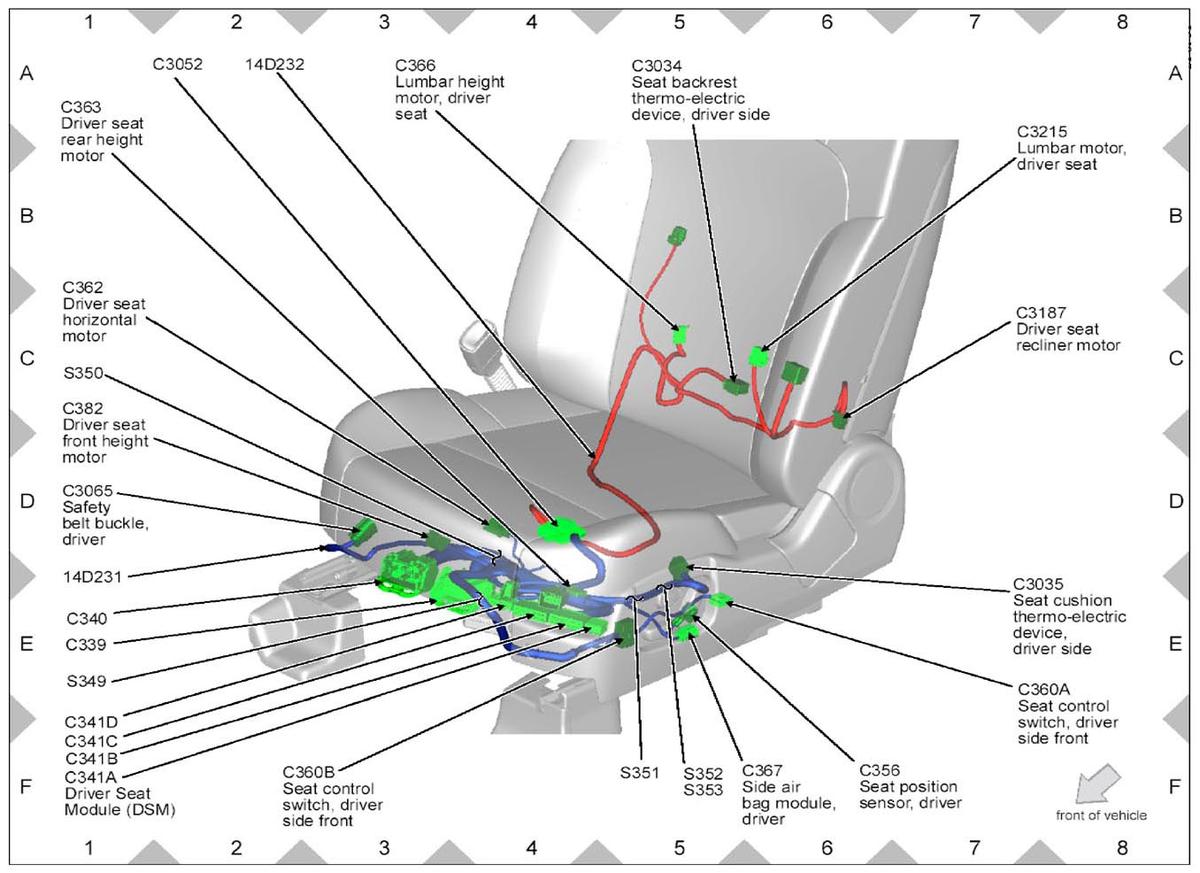

Fig 21: Driver Seat Wiring Harness Connectors Location

G09282485

Courtesy of FORD MOTOR CO.

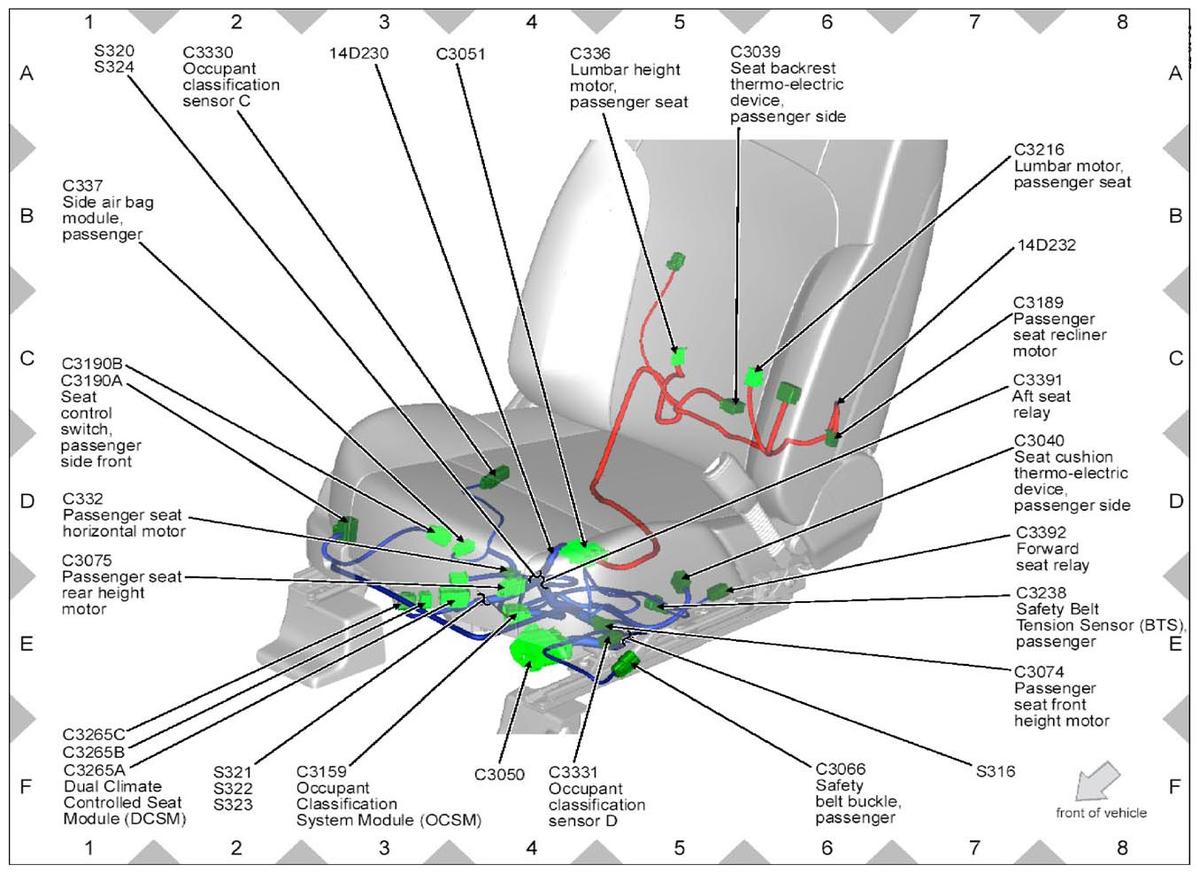

Fig 22: Passenger Seat Wiring Harness Connectors Location

G09282486

Courtesy of FORD MOTOR CO.

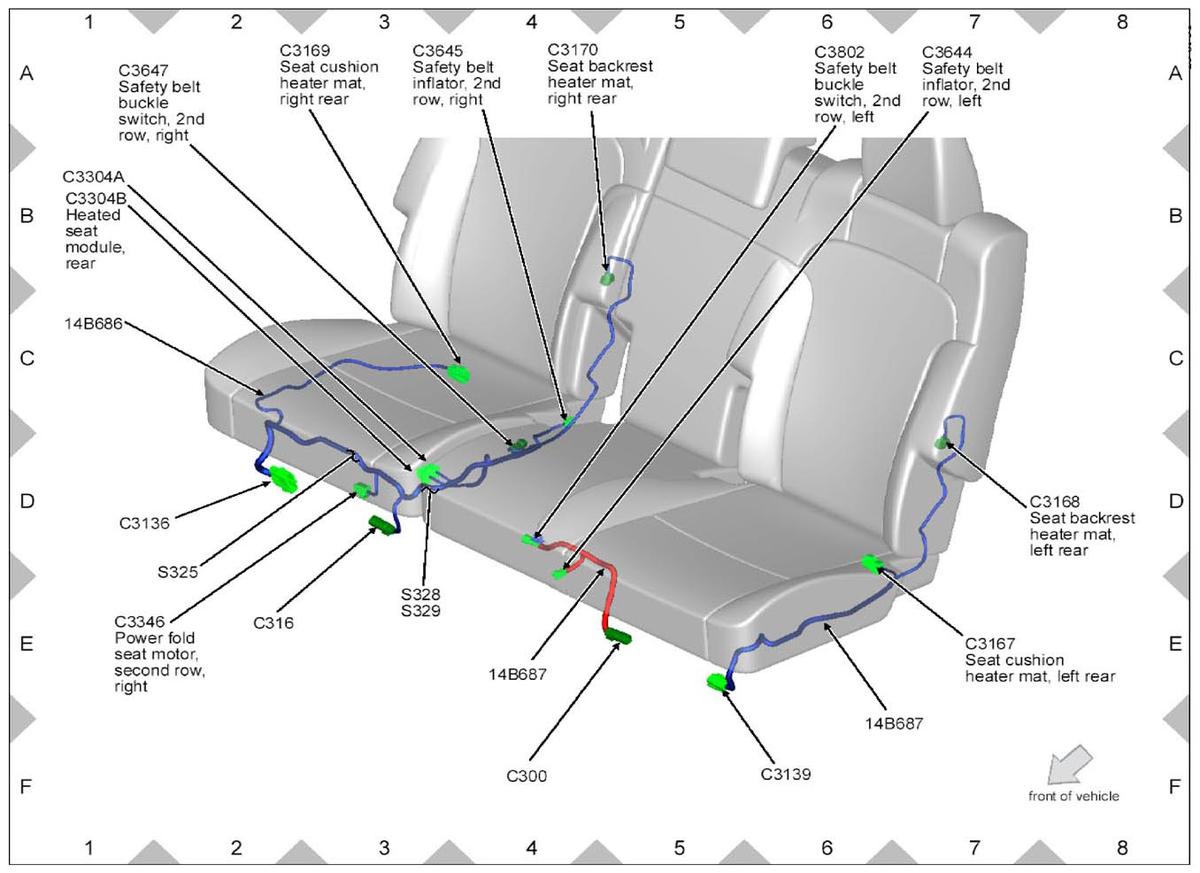

Fig 23: Second Row Seat Wiring Harness Connectors Location (Bench Seat)

G09282487

Courtesy of FORD MOTOR CO.

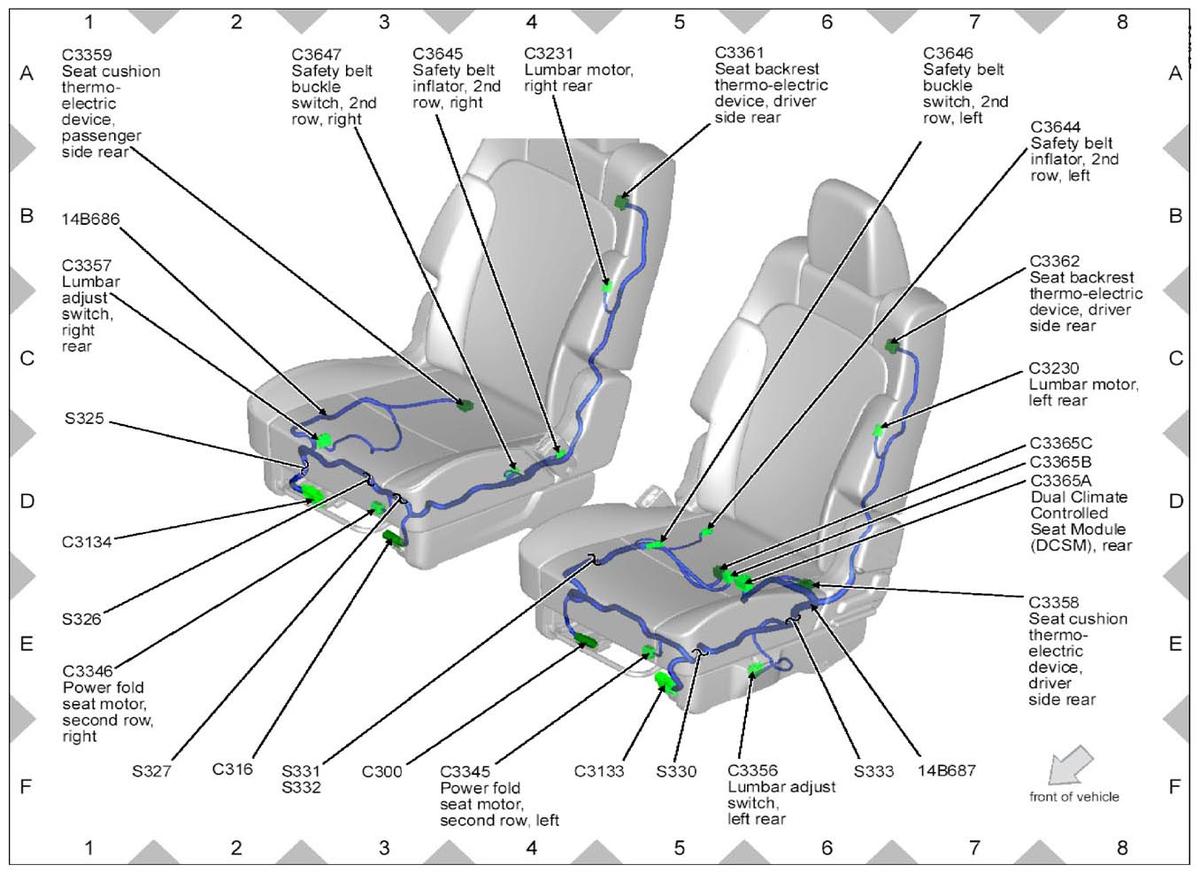

Fig 24: Second Row Seat Wiring Harness Connectors Location (Bucket Seat)

G09282488

Courtesy of FORD MOTOR CO.

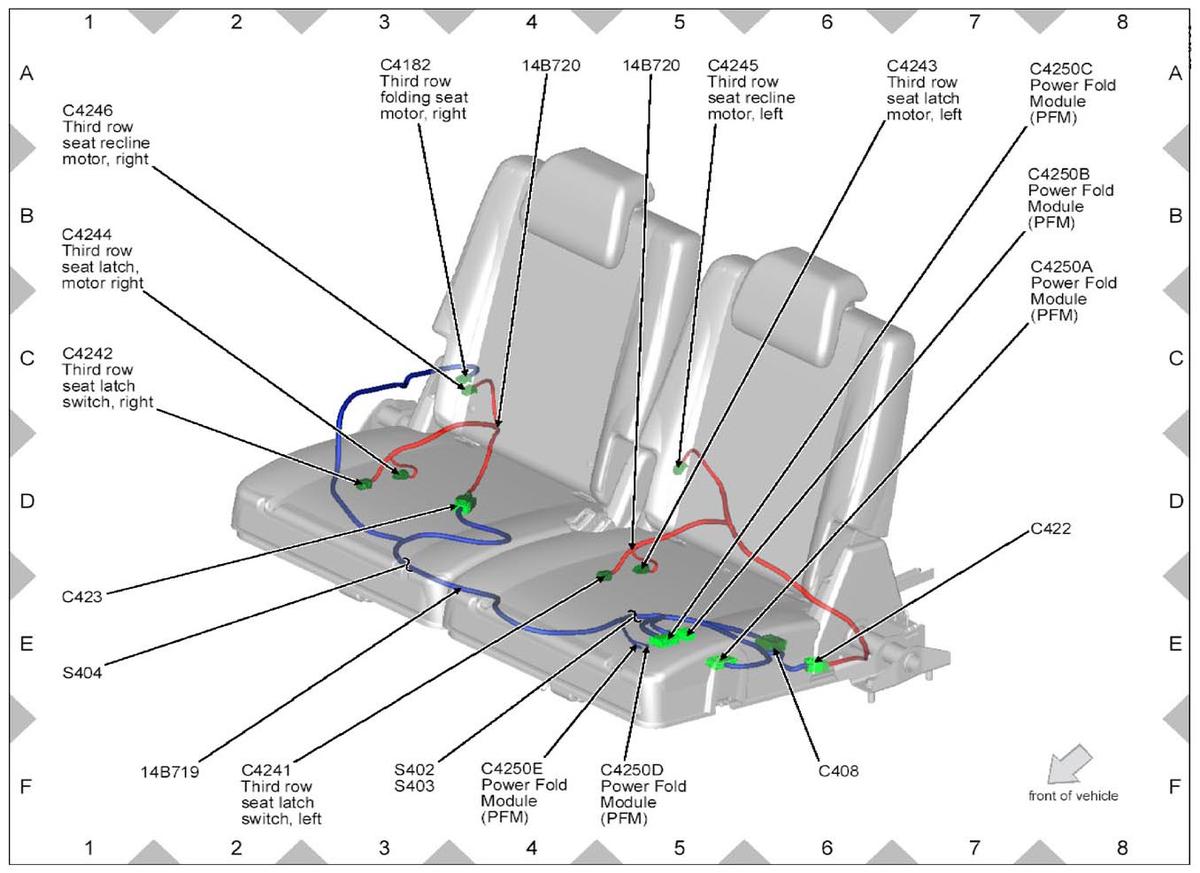

Fig 25: Third Row Seat Wiring Harness Connectors Location

G09282489

Courtesy of FORD MOTOR CO.

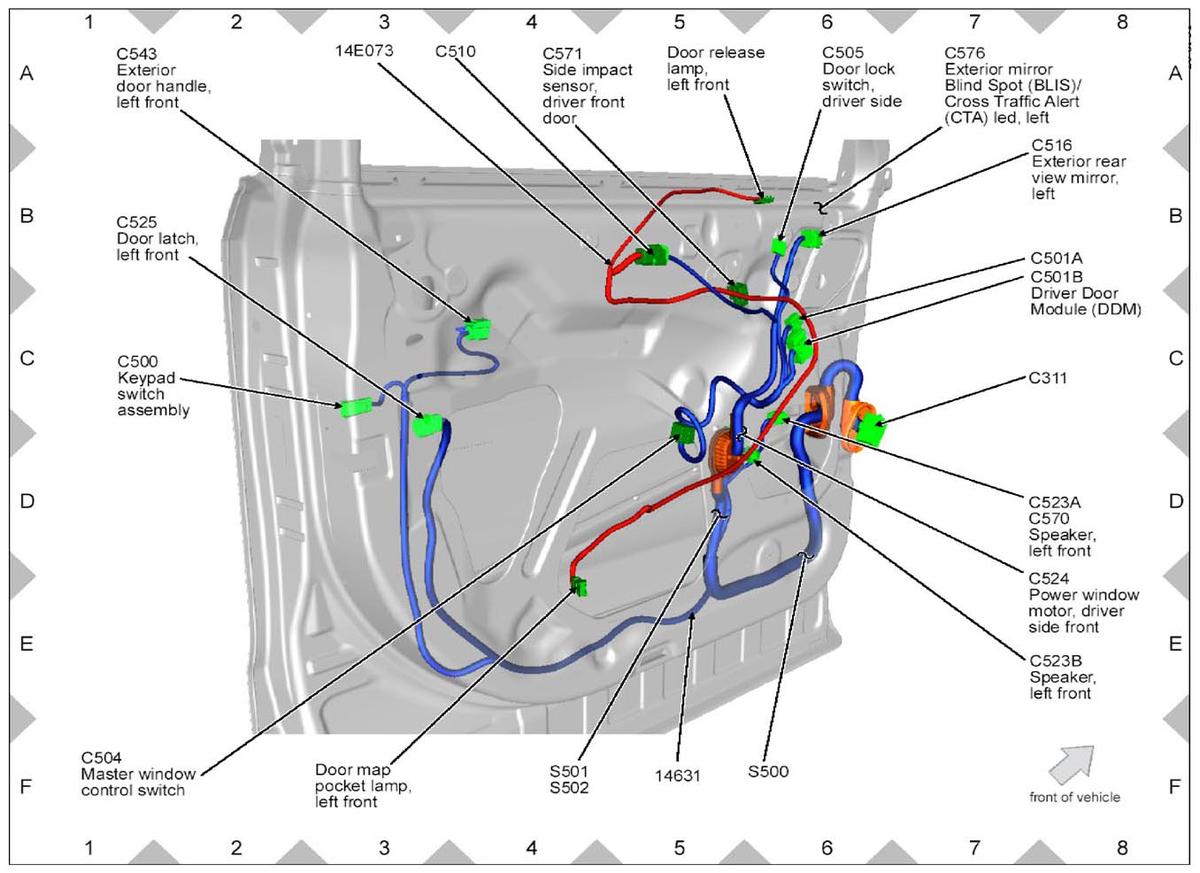

Fig 26: LH Front Door Wiring Harness Connectors Location

G09282490

Courtesy of FORD MOTOR CO.

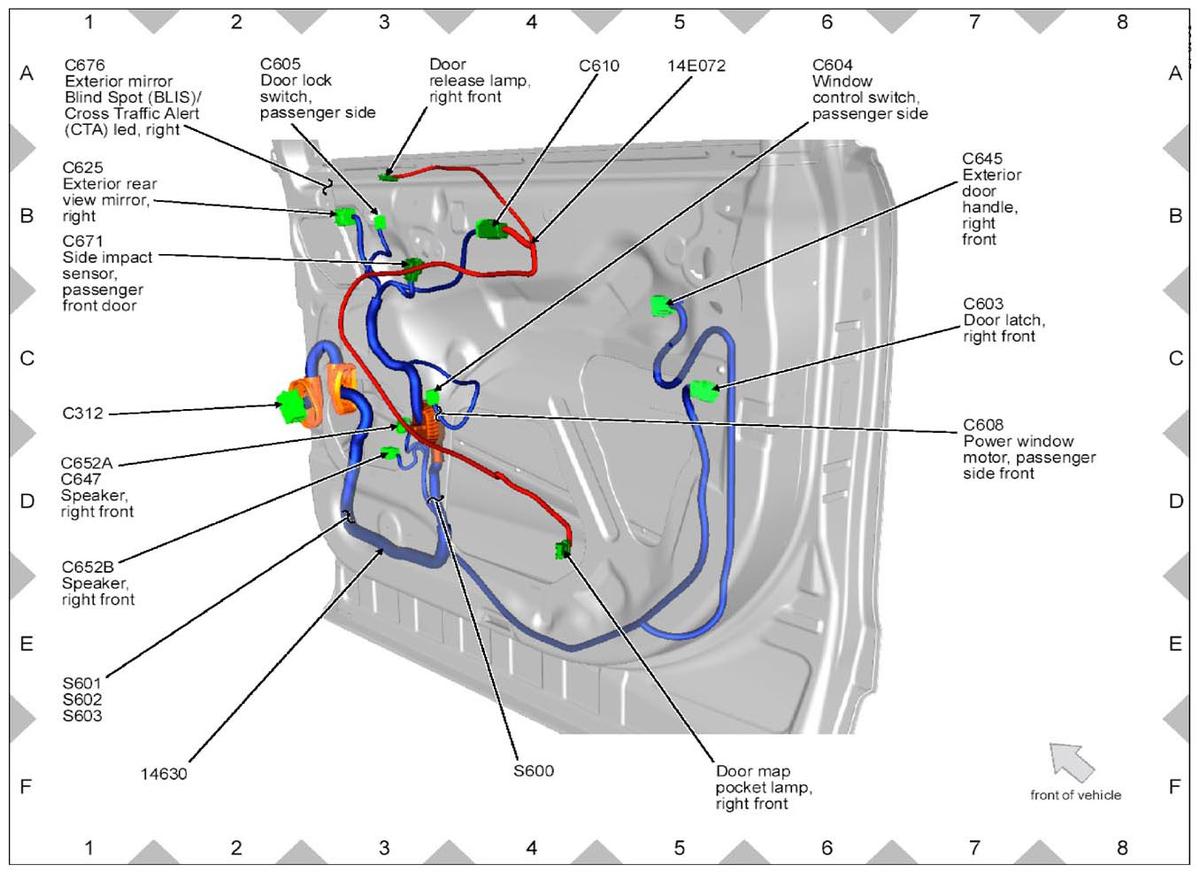

Fig 27: RH Front Door Wiring Harness Connectors Location

G09282491

Courtesy of FORD MOTOR CO.

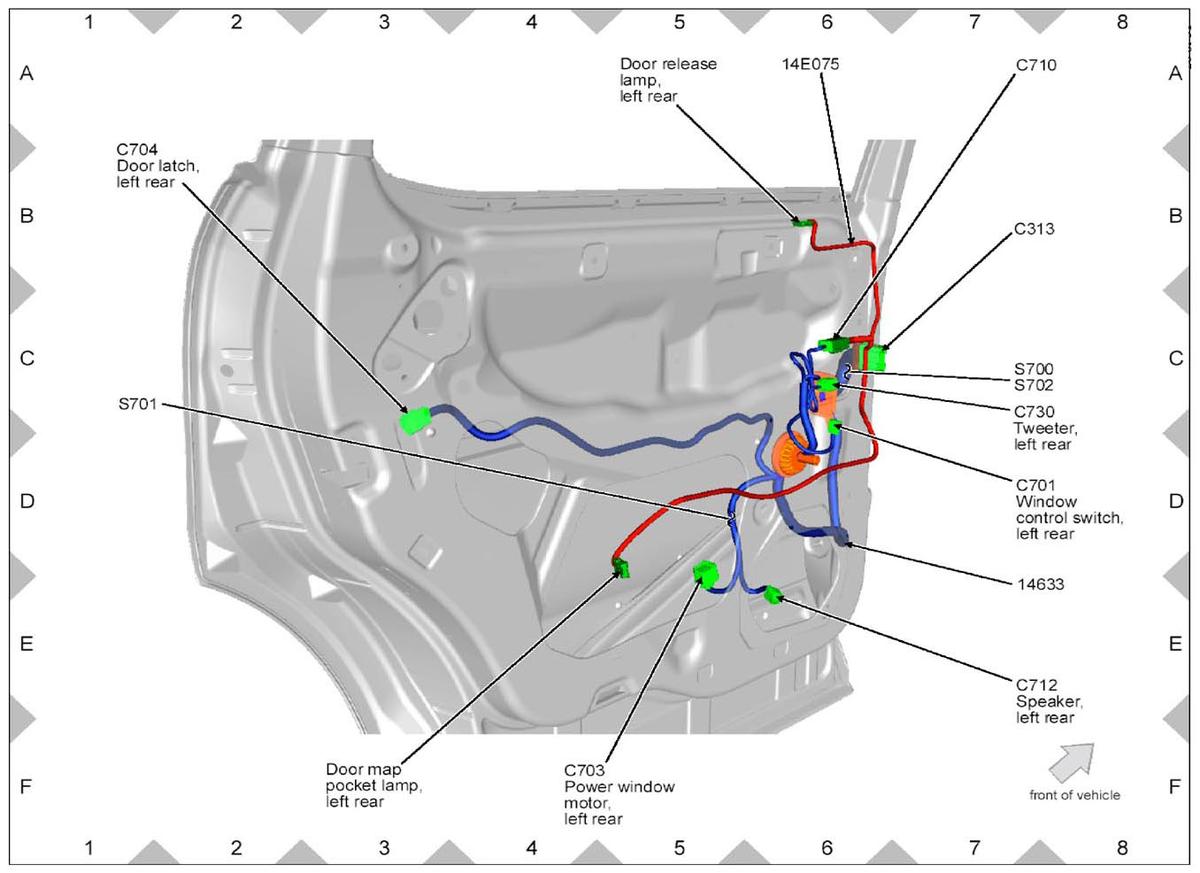

Fig 28: LH Rear Door Wiring Harness Connectors Location

G09282492

Courtesy of FORD MOTOR CO.

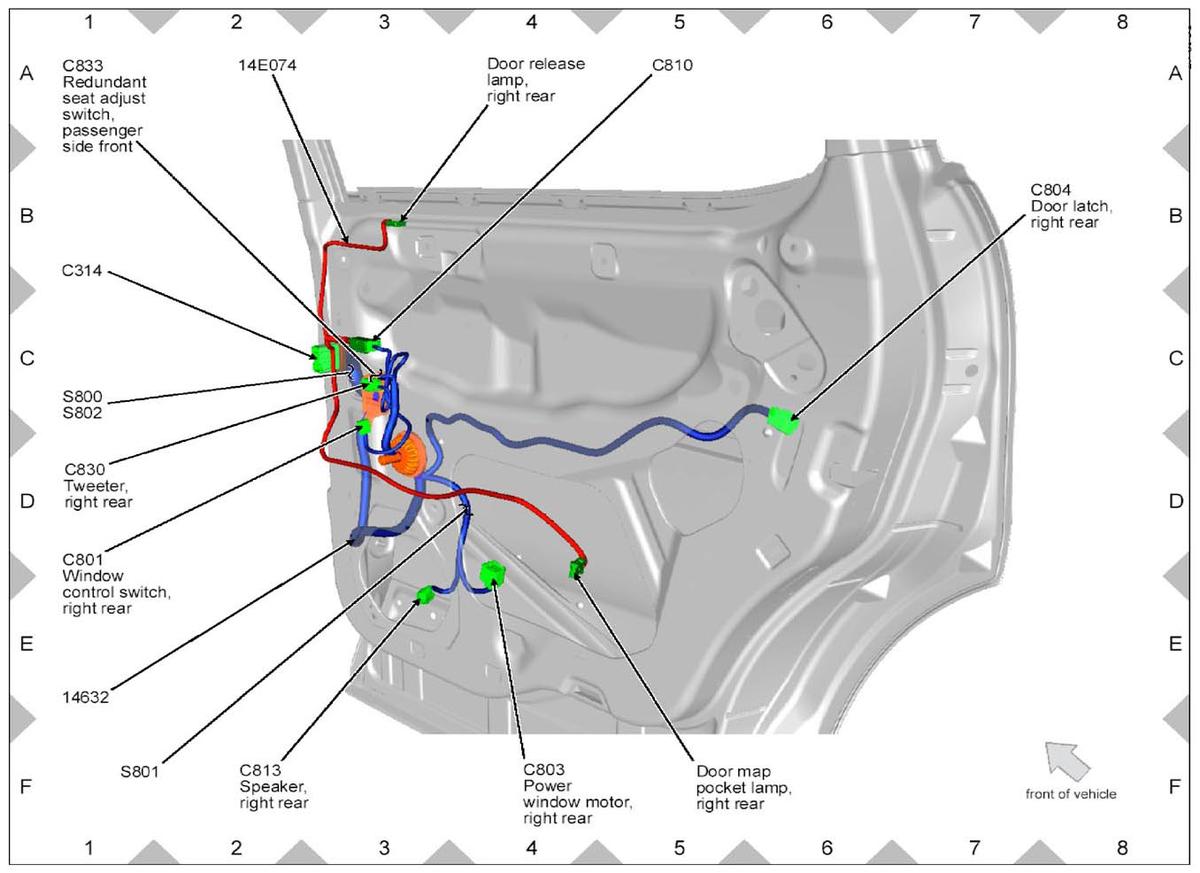

Fig 29: RH Rear Door Wiring Harness Connectors Location

G09282493

Courtesy of FORD MOTOR CO.

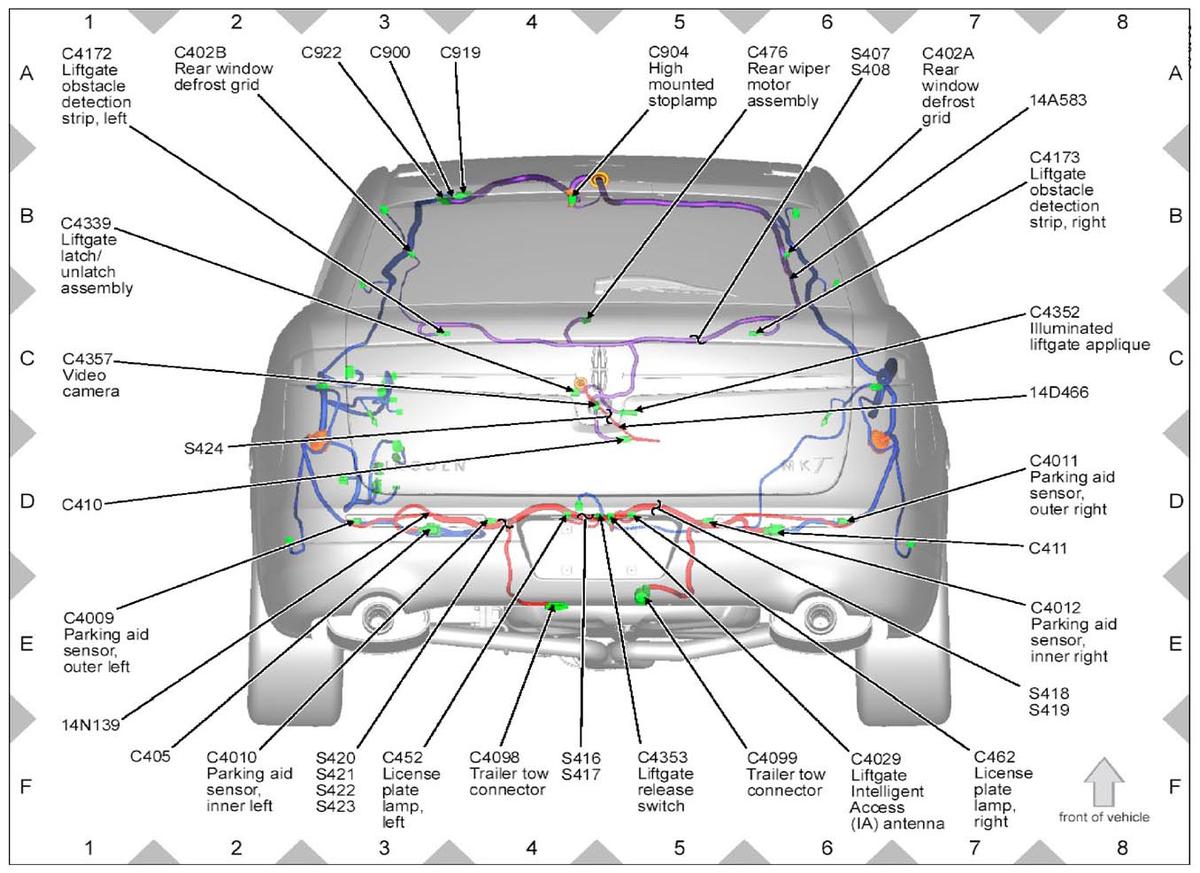

Fig 30: Liftgate Wiring Harness Connectors Location

G09282494

Courtesy of FORD MOTOR CO.

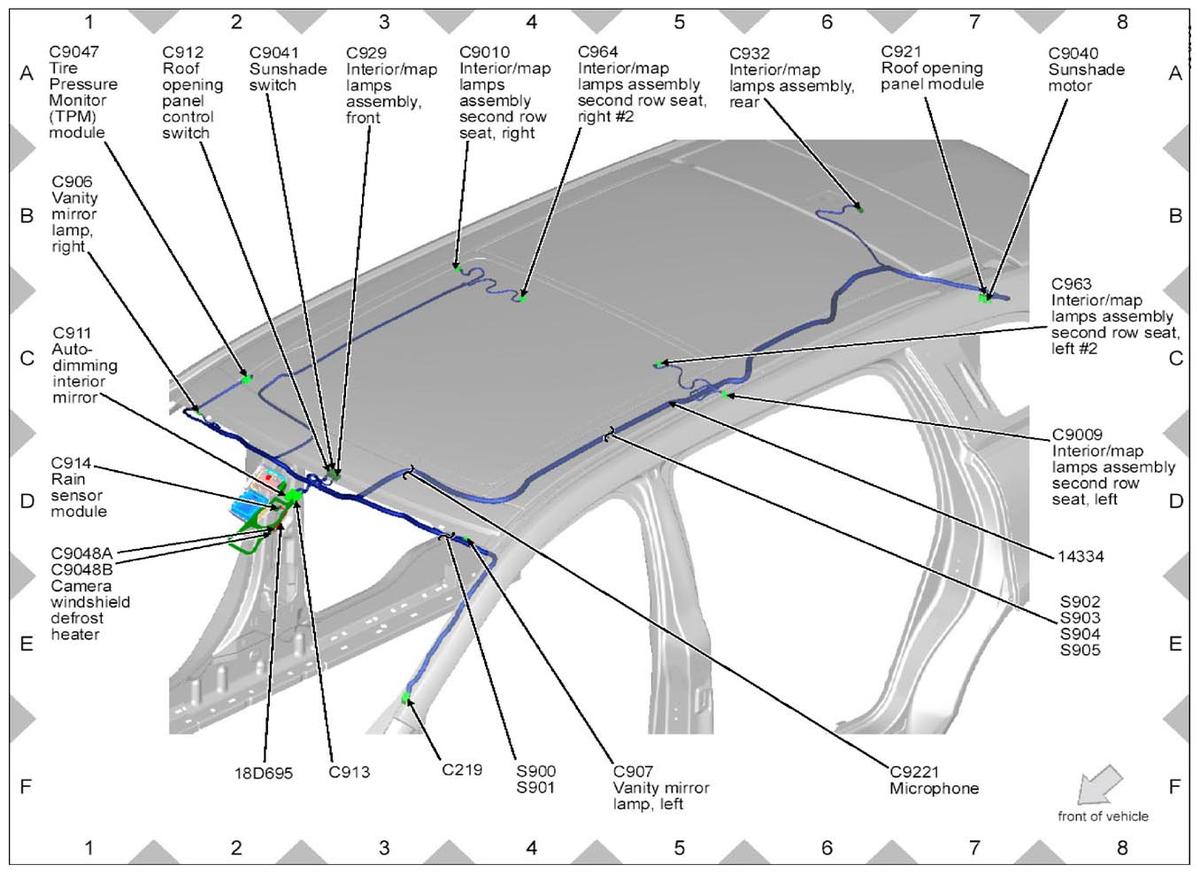

Fig 31: Roof Wiring Harness Connectors Location

G09282495

Courtesy of FORD MOTOR CO.
