OEM Ground Distribution: Grounds: G201

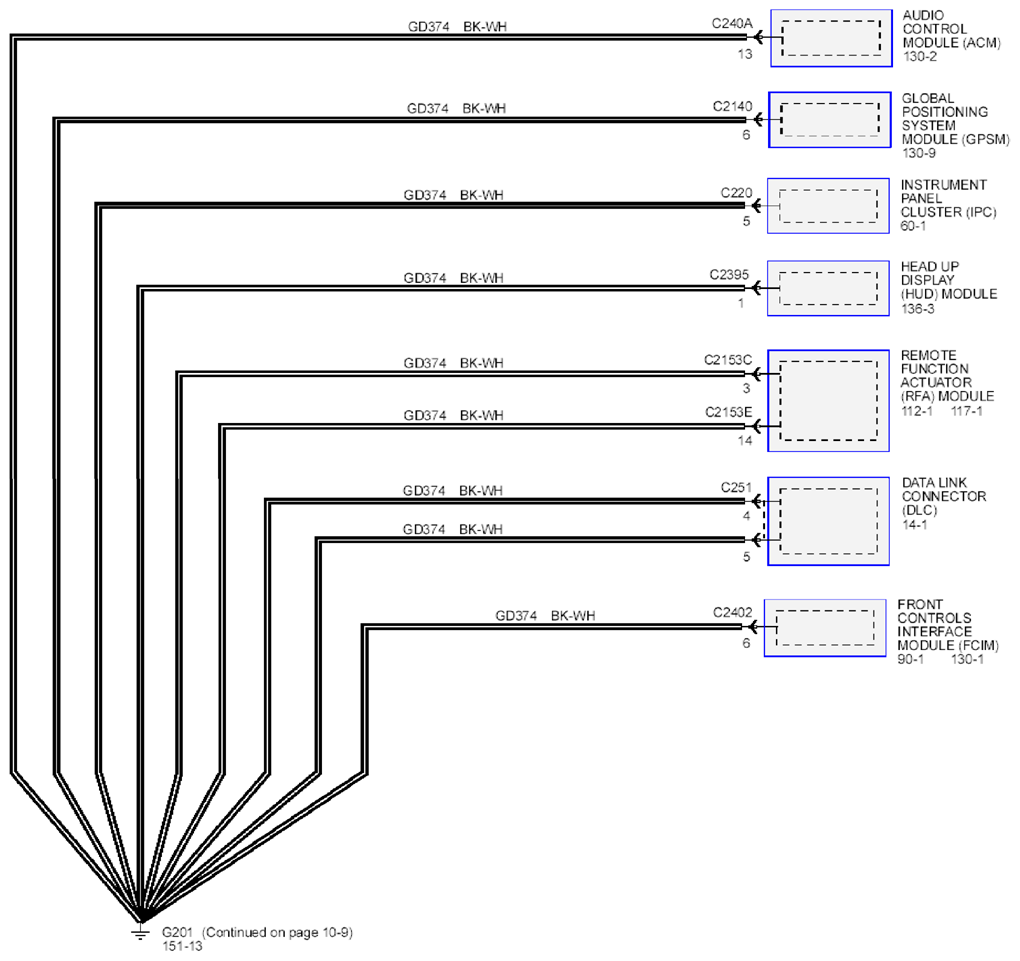

Fig 1: Ground - Wiring Diagram (G201; 1 Of 2)
G09281120Courtesy of FORD MOTOR CO.

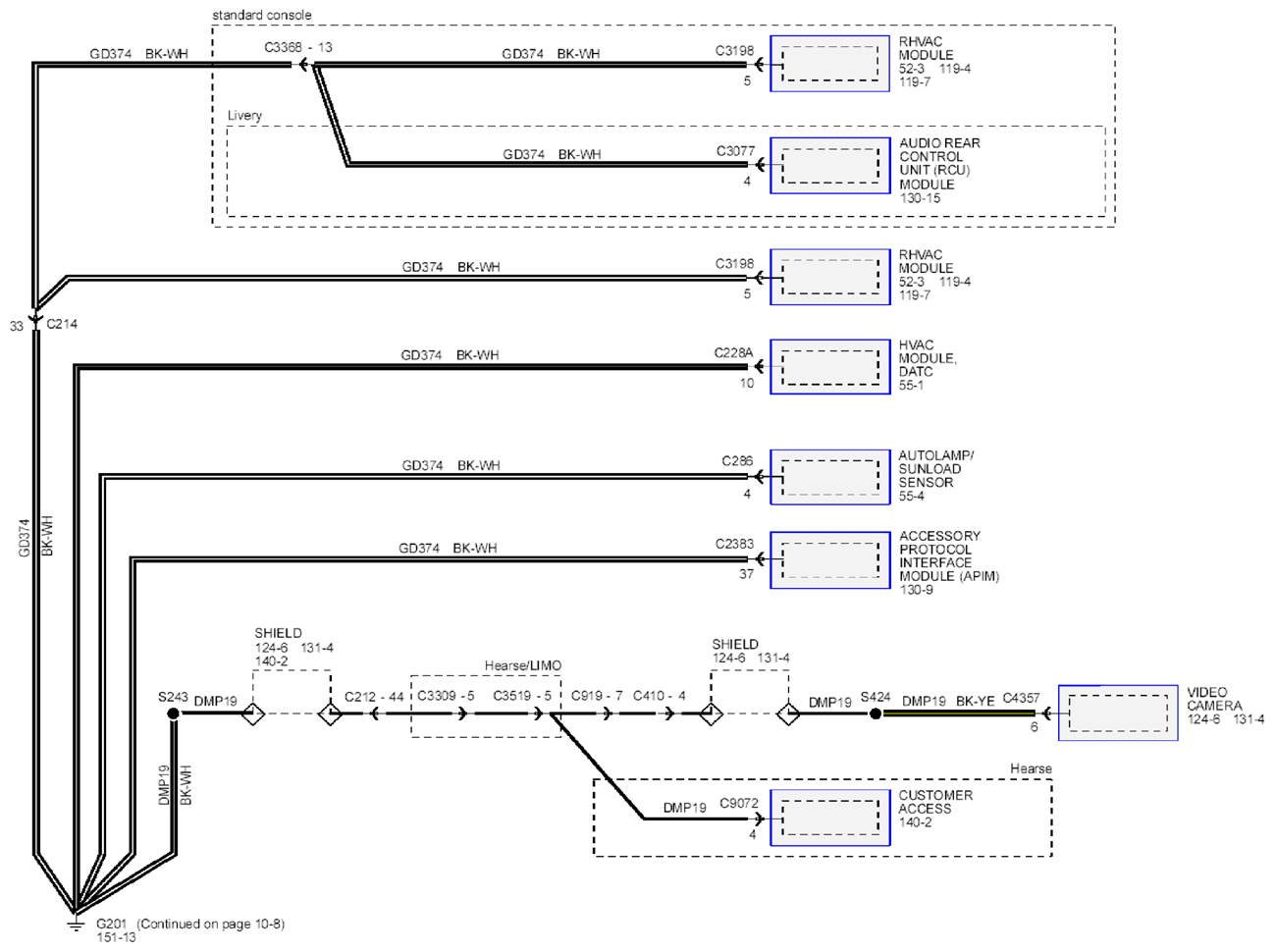

Fig 2: Ground - Wiring Diagram (G201; 2 Of 2)
G09281121Courtesy of FORD MOTOR CO.
