Main Control - Overhaul: Notes

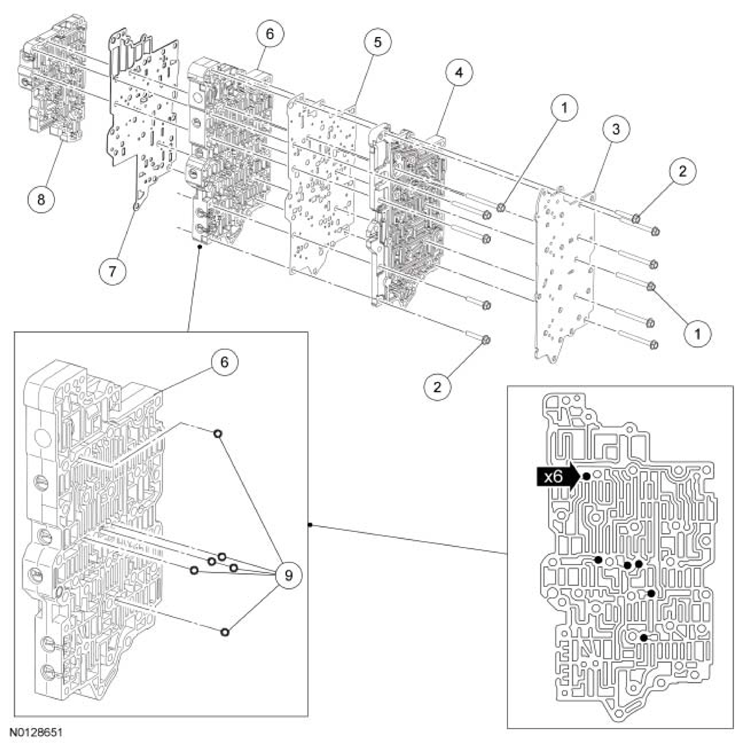

Fig 1: Exploded View Of Main Control Valve Body
G09688817Courtesy of FORD MOTOR CO.
