Removal and Installation

  1. If a new HSWM  is being installed, connect the scan tool and upload the module configuration information from the HSWM  . Refer to PMI  in MODULE CONFIGURATION .

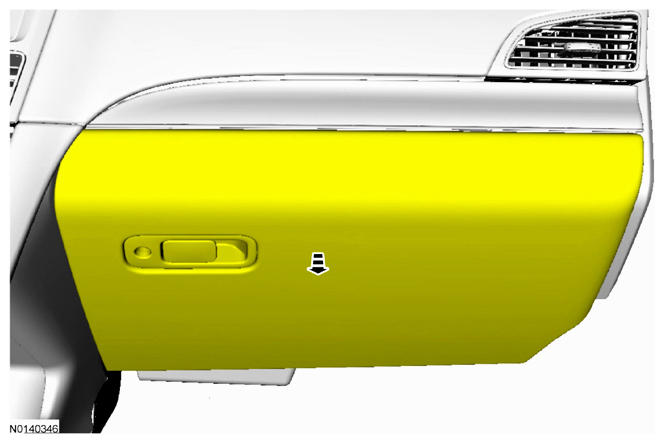

  2. G08722014

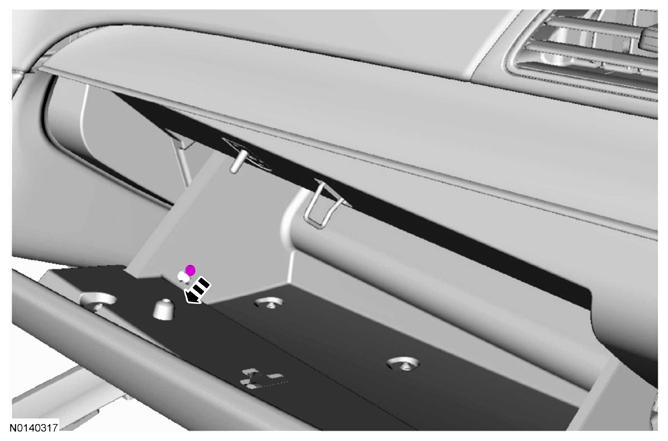

  3. G08722015

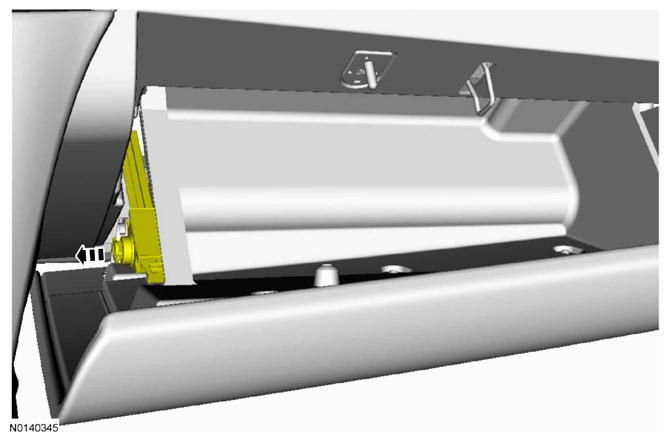

  4. G08722016

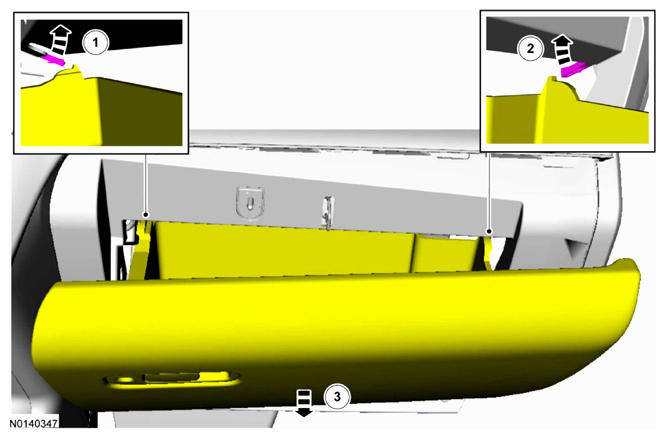

  5. G08722017

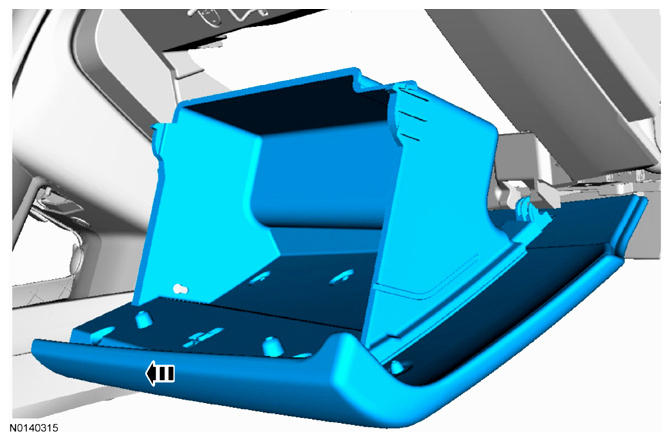

  6. G08722018
    1. -
    2. To install, tighten to 7 Nm (62 lb-in).
    3. -

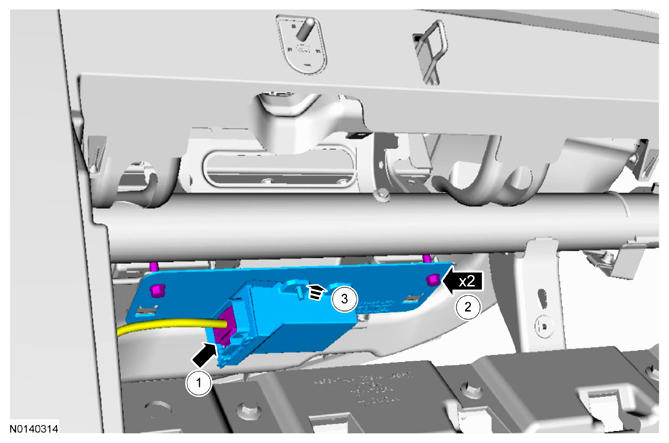

      G08722019
  8. To install, reverse the removal procedure.
    • If a new HSWM  was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). Refer to PMI  in MODULE CONFIGURATION .
