Home › Lincoln › 2014 › MKX AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Ground Distribution › Grounds › G201

OEM Ground Distribution: Grounds: G201

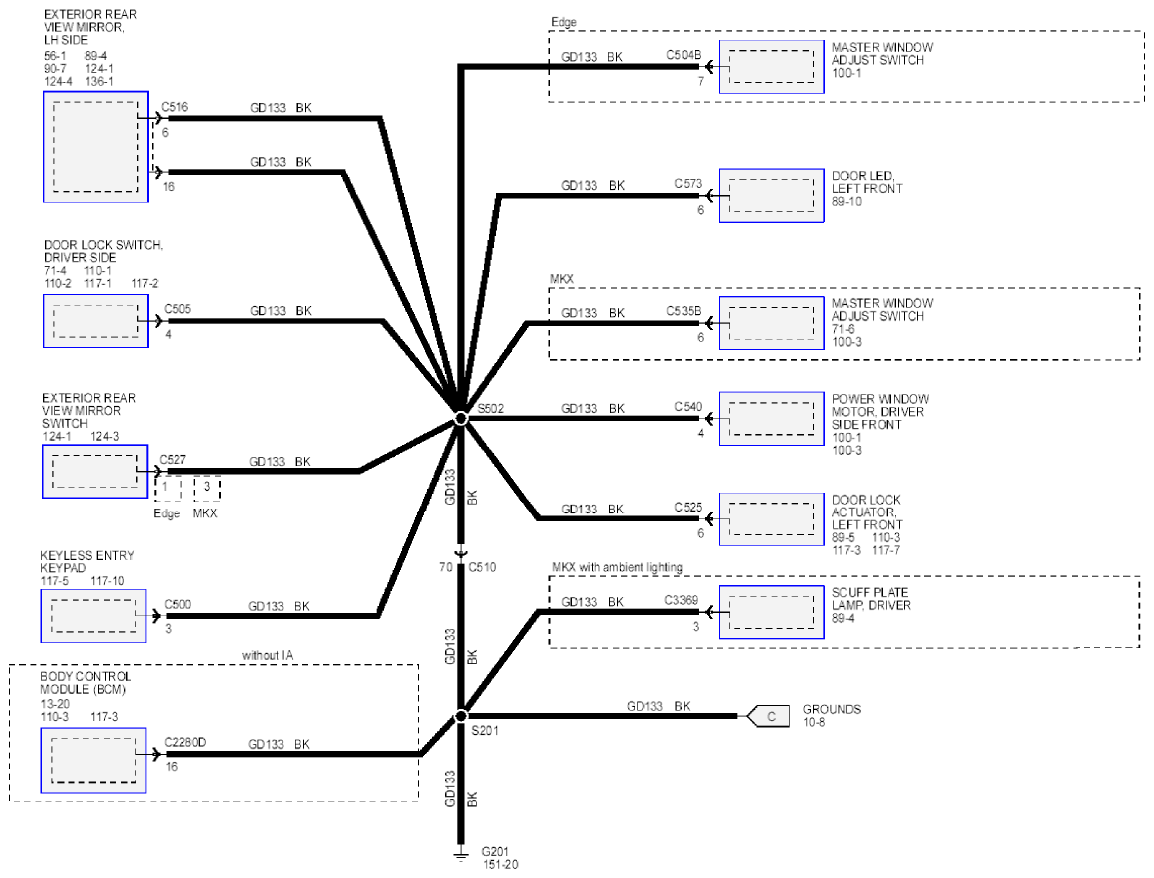

Fig 1: Grounds System Wiring Diagram - (G201)
G09219540Courtesy of FORD MOTOR CO.
