Generator Current Sensor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

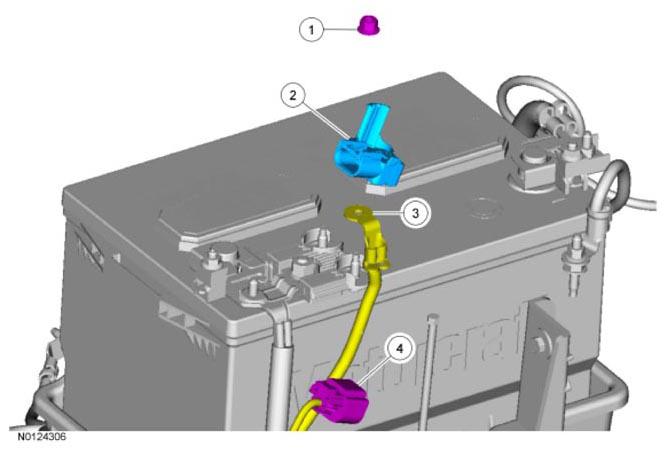

Item	Part Number	Description
1	-	Battery terminal nut (part of 14300) - 9 Nm (80 lb-in)
2	14B357	Generator current sensor
3	-	Positive battery cable terminal (part of 14300)
4	-	Generator current sensor electrical connector (part of 14290)
