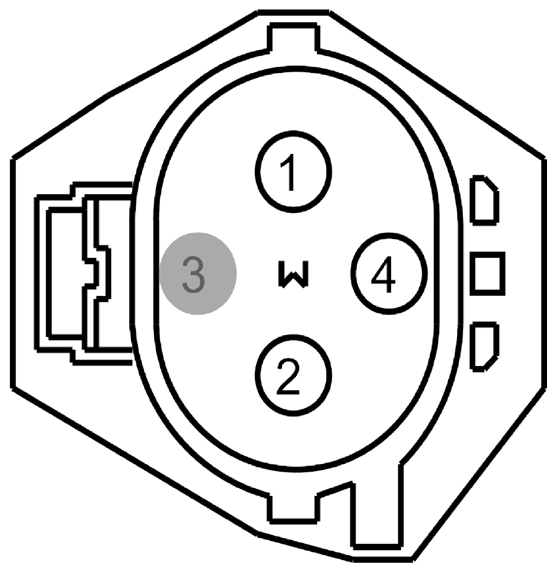

Cooling Fan Module Connector End View (C1554)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB39 (WH-RD) | 10 | FUSE - 39 OR CIRCUIT BREAKER | w/o trailer tow |
| 1 | SBB39 (WH-RD) | 8 | FUSE - 39 OR CIRCUIT BREAKER | with trailer tow |
| 2 | GD123 (BK-GY) | 10 | GROUND - FENDER FRONT RIGHT | |
| 3 | * | * | Not Used | |
| 4 | VEC03 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL VARIABLE (FCV) |
| Available Pigtail Kits | |
|---|---|

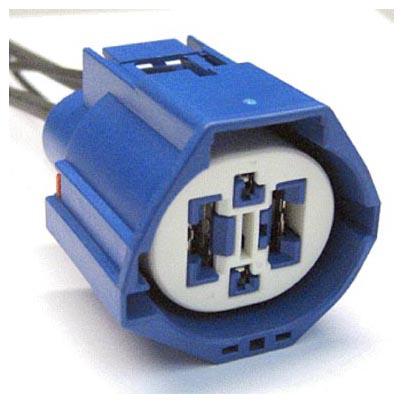

| Pigtail Kit Part Number WPT-1361 | Service Part Number: 9U2Z-14S411-LB Gauge: 10 16 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|

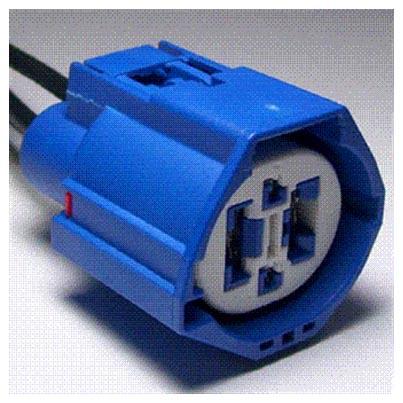

| Pigtail Kit Part Number WPT-935 | Service Part Number: 9U2Z-14S411-LA Gauge: 10 16 Pin material: Tin Cavities: 4 Vehicle Uses
|
