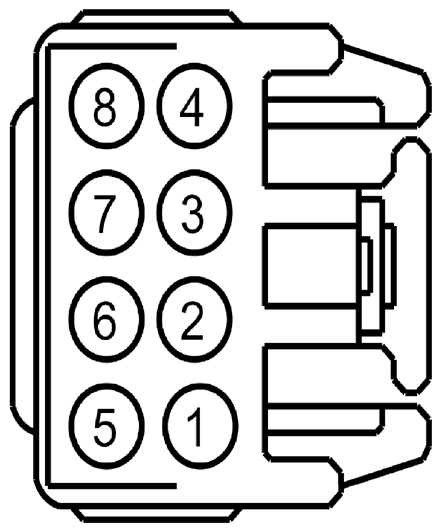

Seat Control Switch, Left Connector End View (C352)

Fig 1: Identifying Seat Control Switch, Left Connector (C352)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT UP
2	GD143 (BK-VT)	14	GROUND - PILLAR B LEFT
3	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD
4	SBB74 (YE-RD)	14	FUSE - 74 OR CIRCUIT BREAKER
5	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
6	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD
7	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
8	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT DOWN
