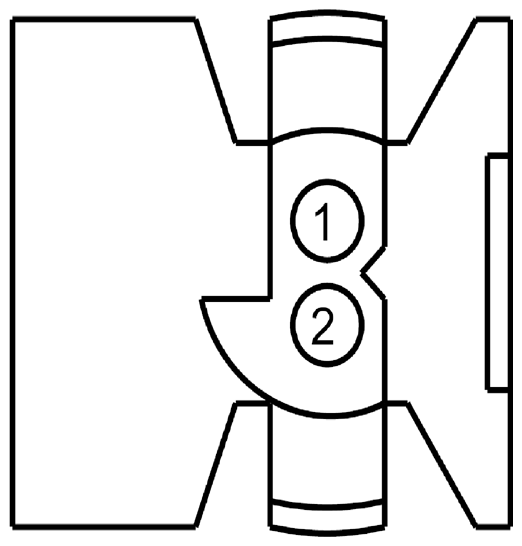

Driver Air Bag Module Connector End View (C216B)

Fig 1: Identifying Driver Air Bag Module Connector (C216B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR102 (YE-WH)	22	CTRL MOD. - AIR BAG DRIVER 2
2	RR102 (RD-OG)	22	CTRL MOD. - AIR BAG DRIVER 2

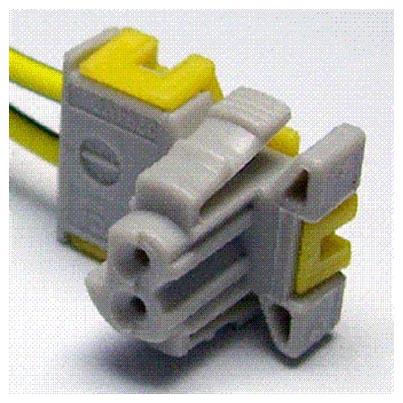

Available Pigtail Kits
Pigtail Kit Part Number WPT-1223	Service Part Number: BU2Z-14S411-BFA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
