Rear Lamp Assembly: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

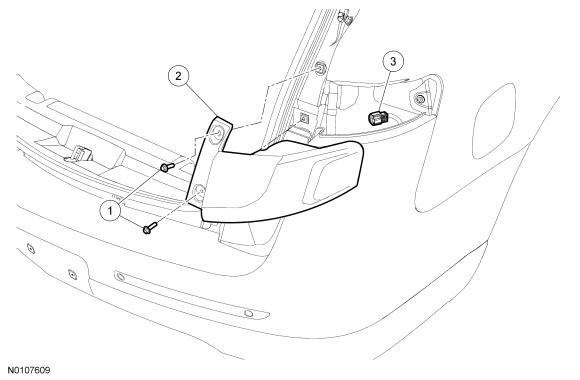

| Item | Part Number | Description |
|---|---|---|
| 1 | W712801 | Rear lamp assembly screws (2 required) |
| 2 | 13405/13404/13404 | Rear lamp assembly (LH/RH) |
| 3 | - | Rear lamp assembly electrical connectors (part of 14A005) |
