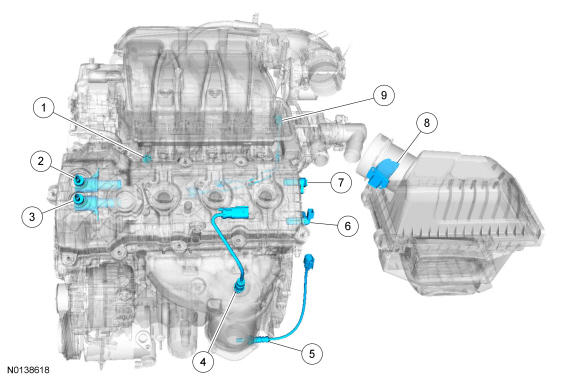

Front Engine Sensor Locations - 3.7L Ti-VCT

Courtesy of FORD MOTOR COMPANY

Item	Description	Comments
1	CHT sensor	-
2	LH intake VCT oil control solenoid	-
3	LH exhaust VCT oil control solenoid	-
4	LH HO2S	-
5	LH CMS	-
6	LH exhaust CMP sensor	-
7	LH intake CMP sensor	-
8	MAF sensor	-
9	Rear KS	-
