Camera Windshield Defrost Heater: Installation

1. 1.


   NOTE: Use an alcohol pad to remove the residual adhesive. If required a plastic scraper may be used..

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the protective covering from the new camera windshield defrost heater.

1. 3.

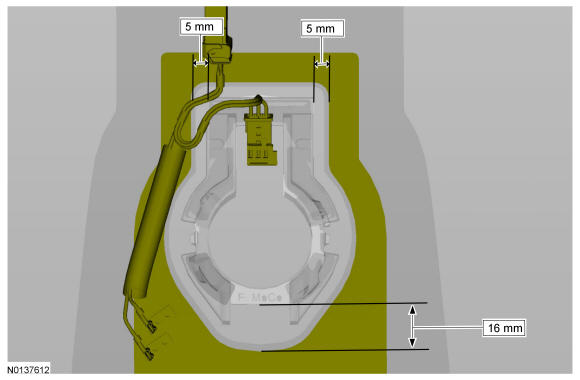

   Align the camera windshield defrost heater.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: Apply even pressure to adhere the camera windshield defrost heaterr to the windshield.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the rain sensor. For additional information, refer to Wipers and Washers .
