OEM Ground Distribution: Grounds

GFDW35853Courtesy of FORD MOTOR COMPANY
GFDW35854Courtesy of FORD MOTOR COMPANY
GFDW35855Courtesy of FORD MOTOR COMPANY

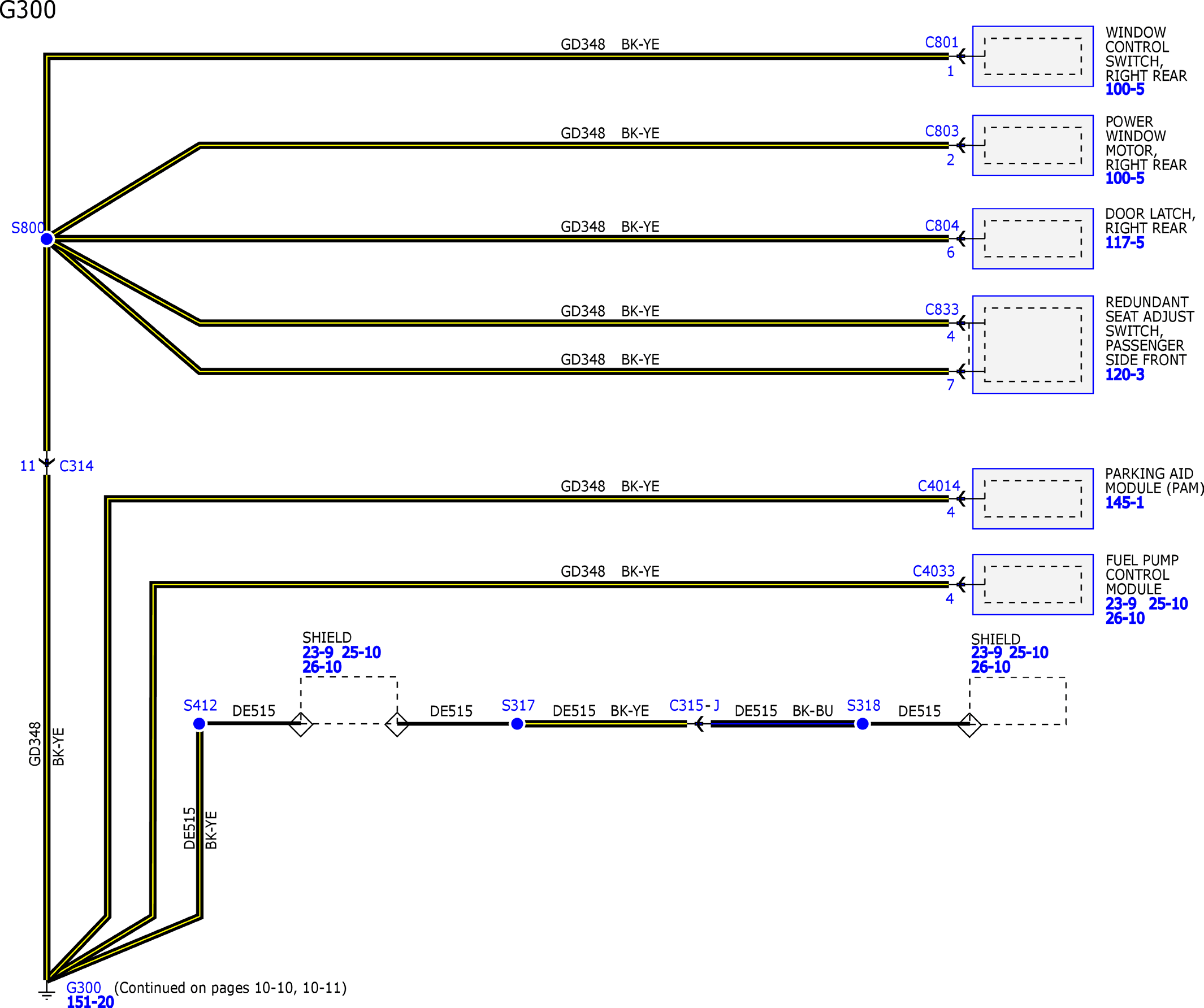

GFDW35856Courtesy of FORD MOTOR COMPANY
GFDW35857Courtesy of FORD MOTOR COMPANY
GFDW35858Courtesy of FORD MOTOR COMPANY
GFDW35859Courtesy of FORD MOTOR COMPANY
GFDW35860Courtesy of FORD MOTOR COMPANY

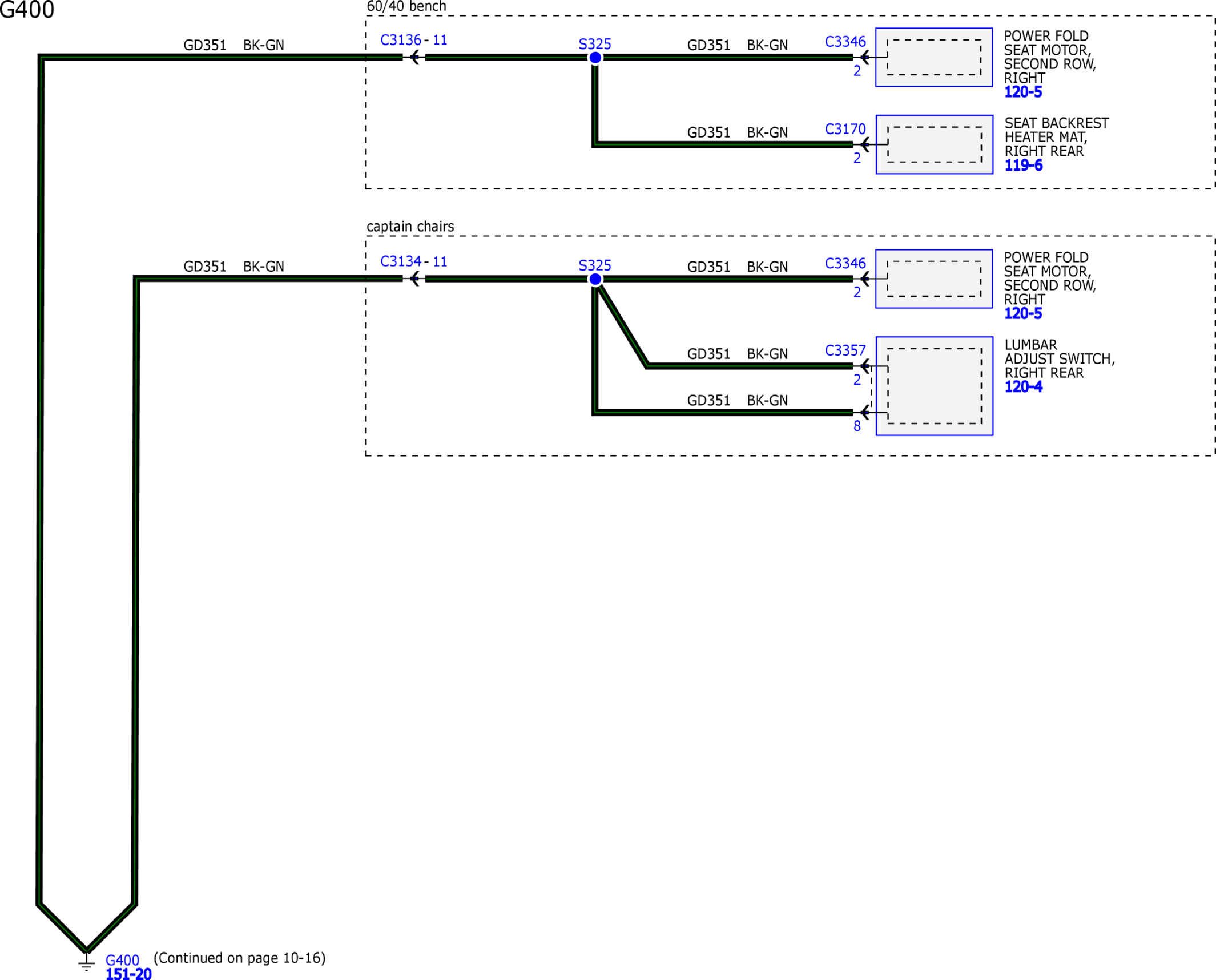

GFDW35861Courtesy of FORD MOTOR COMPANY
GFDW35862Courtesy of FORD MOTOR COMPANY

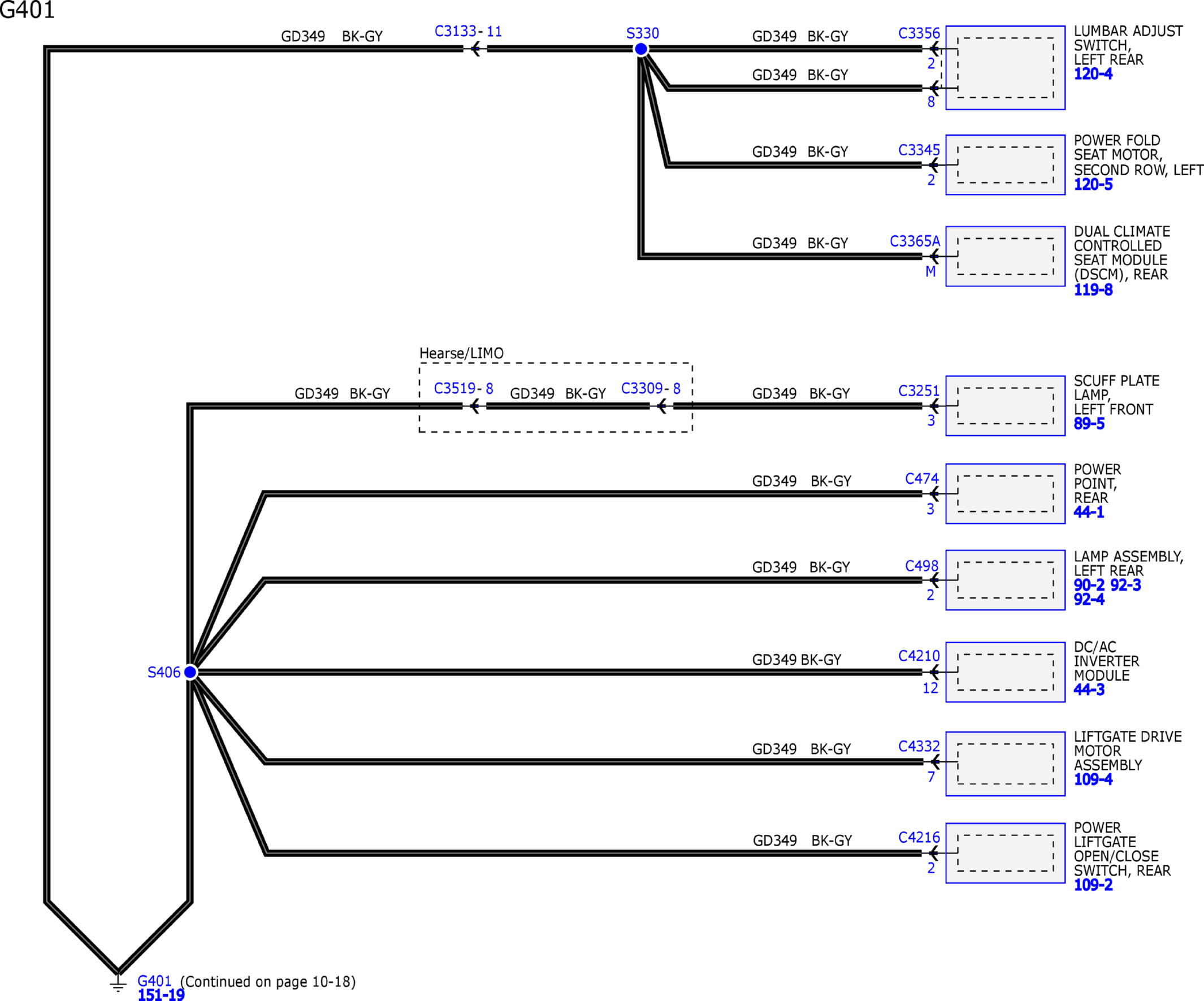

GFDW35863Courtesy of FORD MOTOR COMPANY

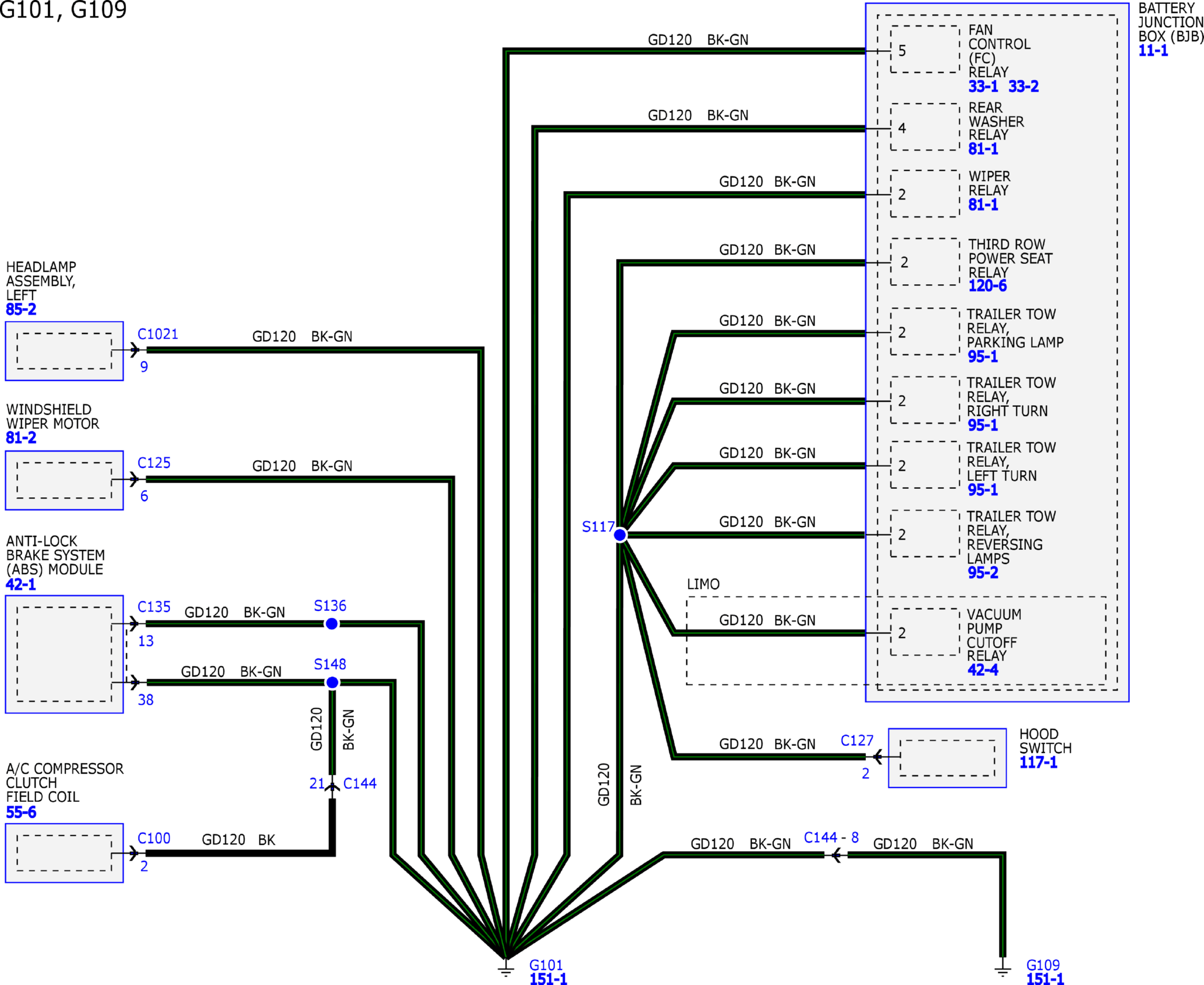

GFDW35864Courtesy of FORD MOTOR COMPANY

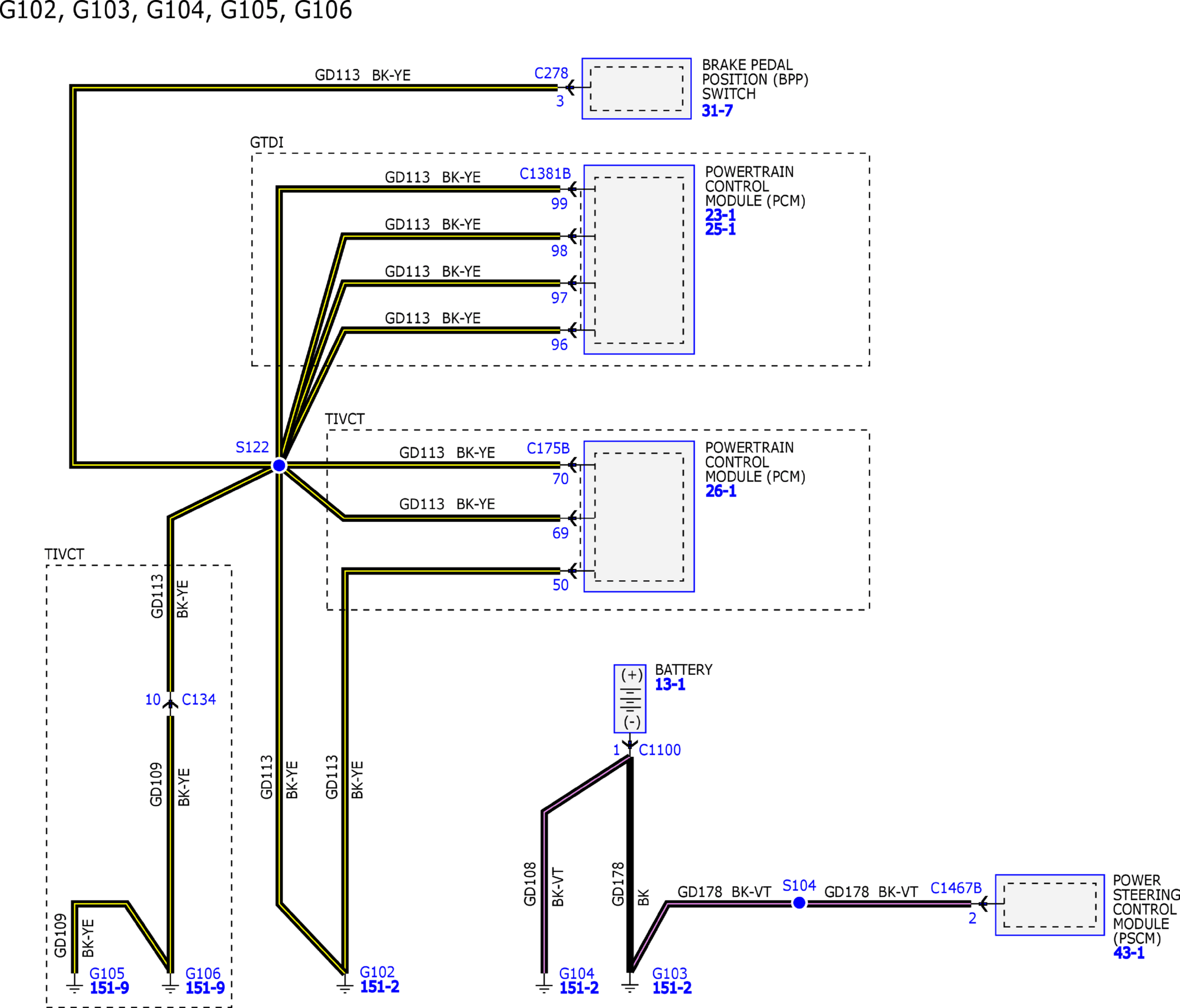

GFDW35865Courtesy of FORD MOTOR COMPANY
GFDW35866Courtesy of FORD MOTOR COMPANY
GFDW35867Courtesy of FORD MOTOR COMPANY
GFDW35868Courtesy of FORD MOTOR COMPANY
GFDW35869Courtesy of FORD MOTOR COMPANY

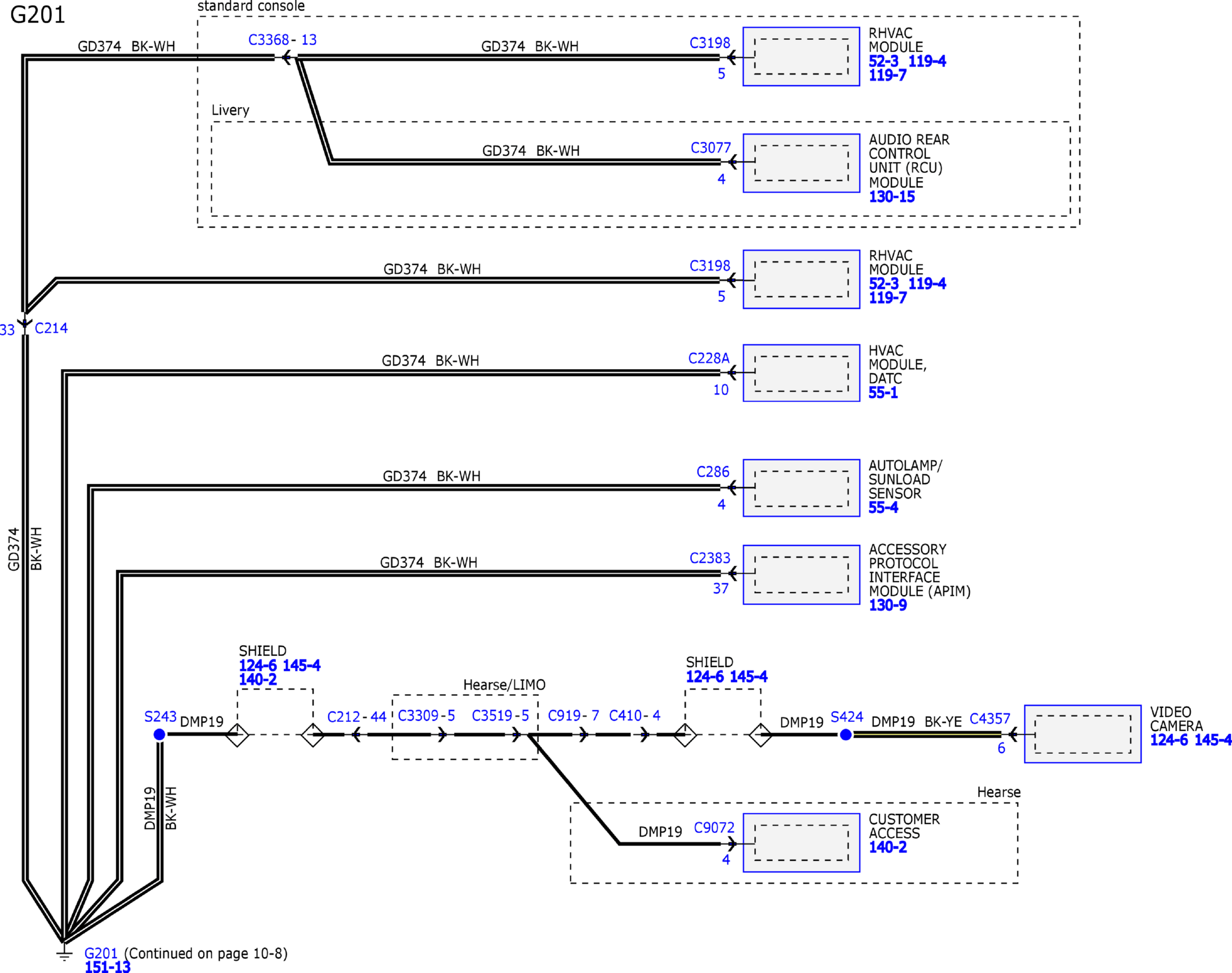

GFDW35870Courtesy of FORD MOTOR COMPANY
GFDW35871Courtesy of FORD MOTOR COMPANY
