Cruise Control Switch: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Edge/MKX
NOTE:

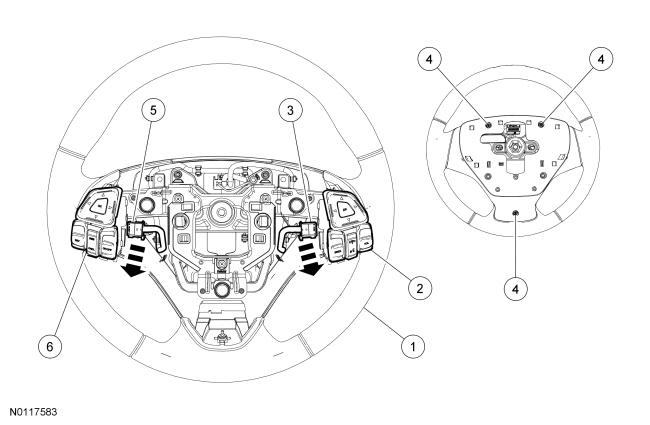

Steering wheel trim panel and air bag shown removed for clarity
| Item | Part Number | Description |
|---|---|---|
| 1 | 3600 | Steering wheel |
| 2 | 9C888 | Audio control switch |
| 3 | - | Audio control switch electrical connector |
| 4 | W506943 | Steering wheel trim panel screw (3 required) |
| 5 | - | Message center and cruise control switch electrical connector |
| 6 | 9C888 | Message center and cruise control switch |
