Instrument Panel - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

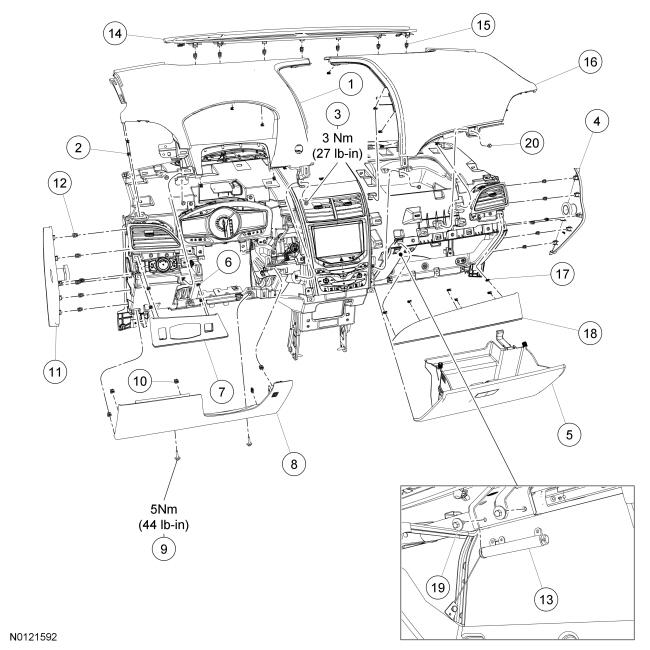

MKX Instrument Panel
| Item | Part Number | Description |
|---|---|---|
| 1 | 78044F58 | LH Instrument Panel Cluster (IPC) top cover |
| 2 | W790178 | Clip (9 required) |
| 3 | W707628 | IPC top cover screws (2 required) |
| 4 | 7804480 | RH instrument panel side trim panel |
| 5 | 7806024 | Glove compartment |
| 6 | W790178 | Clip (4 required) |
| 7 | 78044A91 | Left finish panel |
| 8 | 7804459 | Steering column opening trim panel |
| 9 | W505424 | Steering column opening trim panel screws (2 required) |
| 10 | W790178 | Clip (5 required) |
| 11 | 7804481 | LH instrument panel side trim panel |
| 12 | W790178 | Clip (6 required) |
| 13 | 7806200 | Glove compartment dampener |
| 14 | 78044E82 | Defroster grille |
| 15 | W790178 | Defroster grille clip (7 required) |
| 16 | 78044F58 | RH IPC top cover |
| 17 | W790178 | RH instrument trim panel clip (7 required) |
| 18 | 7804338 | RH instrument trim panel |
| 19 | W710506 | Glove compartment dampener screw (2 required) |
| 20 | W707628 | RH IPC top cover screw (27 required) |

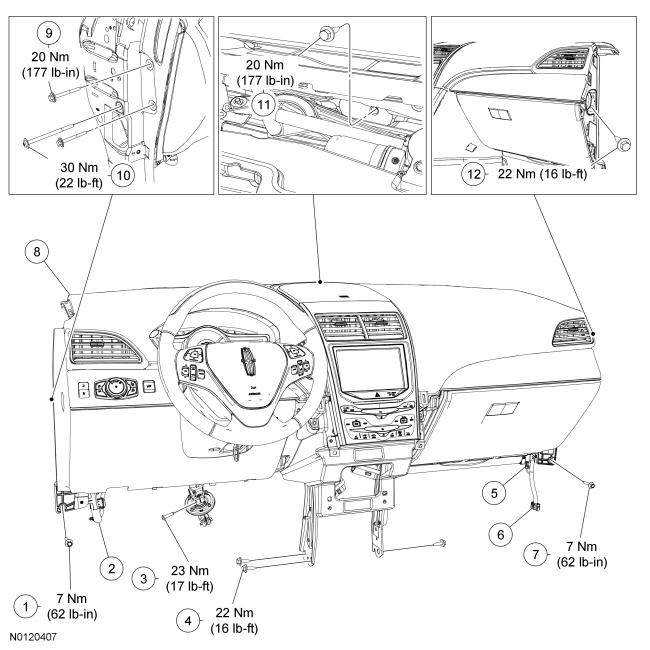

MKX Instrument Panel Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | W703845 | LH instrument panel-to-body bolt |
| 2 | 14401 | LH instrument panel electrical connectors |
| 3 | 3RA27 | Steering column shaft-to-steering column bolt |
| 4 | W706246 | Instrument panel-to-floor bolt (3 required) |
| 5 | - | Antenna lead-in |
| 6 | 14401 | RH instrument panel electrical connector |
| 7 | W703845 | RH instrument panel-to-body bolt |
| 8 | 04320 | Instrument panel |
| 9 | W712386 | LH instrument panel bolt (2 required) |
| 10 | W712387 | LH instrument panel Torx head bolt |
| 11 | W712403 | Instrument panel-to-front of dash bolt |
| 12 | W706246 | RH instrument panel bolt |
