Fuel Level Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Special Tool(s)
| Lock Ring Wrench 310-123 |
Material
| Item | Specification |
| Motorcraft ® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |

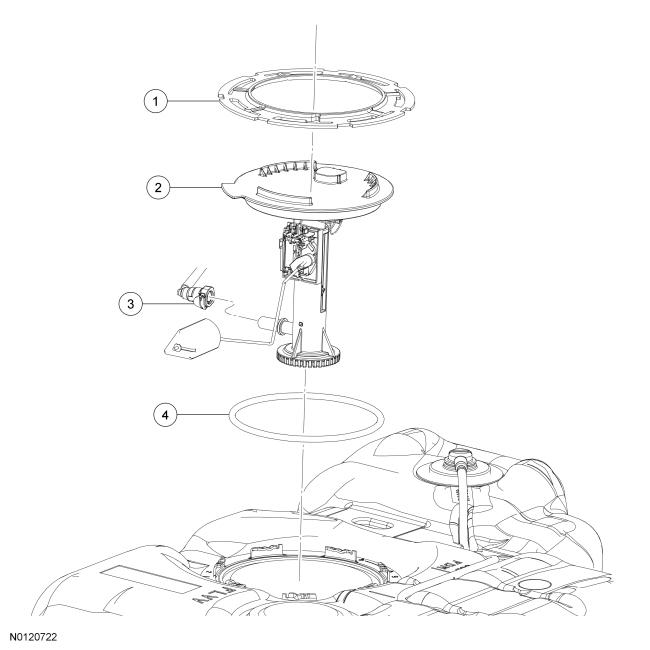

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C385 | Fuel level sensor lock ring |
| 2 | 9275 | Fuel level sensor |
| 3 | - | Internal fuel tube-to fuel level sensor quick connect coupling (part of 9C318) |
| 4 | 9417 | Fuel level sensor O-ring seal |
