Transaxle Case: Assembly

• 1.

  Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583

Courtesy of FORD MOTOR COMPANY

• 2.

  Special Tool(s): Handle 205-153 (T80T-4000-W), Oil Dam Seal Installer 307-583

Courtesy of FORD MOTOR COMPANY

• 3.

  Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case. Visual check.

Courtesy of FORD MOTOR COMPANY

• 4.

  Special Tool(s): Bearing Cup Installer 307-576General Equipment: Shop Press

Courtesy of FORD MOTOR COMPANY

• 5.

  Special Tools(s): Bearing Cup Installer 307-689

Courtesy of FORD MOTOR COMPANY

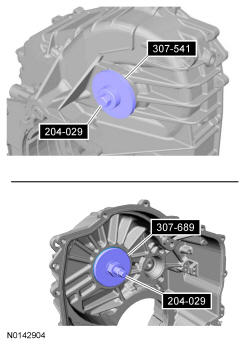

• 6.

  Special Tool(s): Bearing Cup Installer 307-689, Installer, Transfer Gear Bearing 307-541, Drawbar 204-029

Courtesy of FORD MOTOR COMPANY

• 7.



Courtesy of FORD MOTOR COMPANY

• 8.



Courtesy of FORD MOTOR COMPANY

• 9.



Courtesy of FORD MOTOR COMPANY

• 10.


  • Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

• 11.

  Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to Torque Converter Housing .
