Wheel Speed Sensor - Front: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

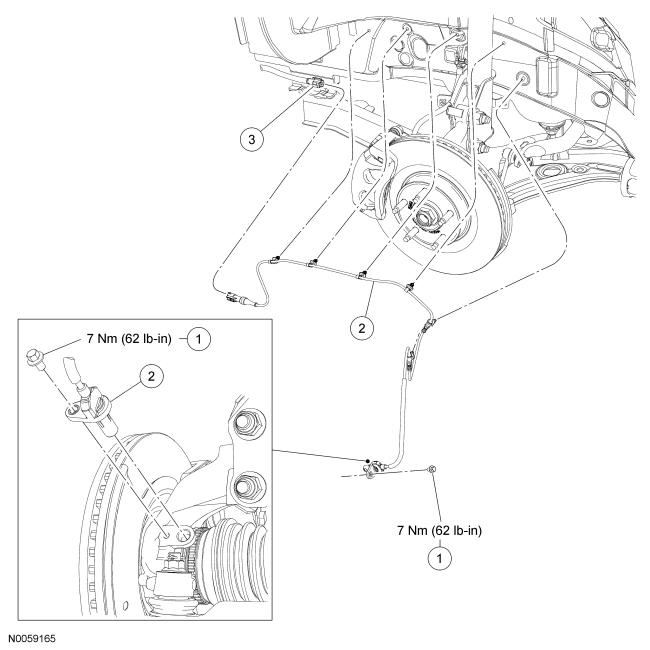

Fig 1: Wheel Speed Sensor (Front) Component Location With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W500010	Wheel speed sensor bolt
2	2C204 RH/ 2C205 LH RH/ 2C205 LH	Wheel speed sensor
3	-	Wheel speed sensor electrical connector (part of 14290)
