Starter Motor - 3.7L: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Fig 1: Starter Motor Replacement Components With Torque Specifications (1 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Transmission shift cable adjustment lock (part of 7E395)
2	7H181	Transmission shift cable rotating slide snap
3	W711892	Transmission manual control lever nut
4	7A256	Transmission manual control lever

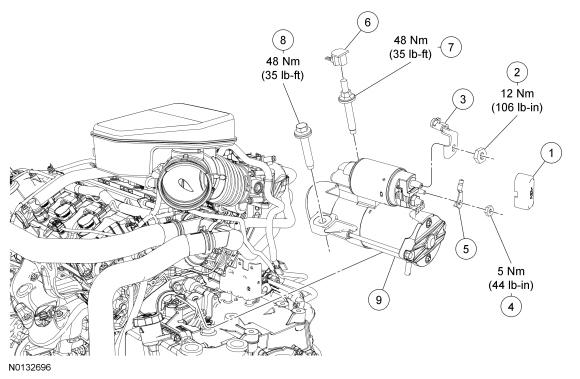

Fig 2: Strater Motor Replacement Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	11N087	Starter motor solenoid battery cable terminal cover
2	W706414	Starter motor solenoid battery cable nut
3	-	Starter motor solenoid battery cable terminal (part of 14300)
4	W705790	Starter motor solenoid wire nut
5	-	Starter motor solenoid wire terminal (part of 14300)
6	-	Wire harness retainer (part of 14300)
7	W711515	Starter motor stud bolt
8	W503320	Starter motor bolt
9	11002	Starter motor
