Steering Column Shroud: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

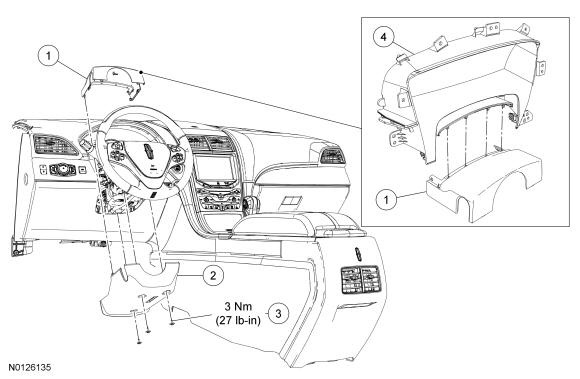

Fig 1: Steering Column Shroud Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3530	Lower steering column shroud
3	W710485	Lower steering column shroud screw (3 required)
4	-	Instrument Panel Cluster (IPC) opening trim (part of 044F58)
