Side Obstacle Detection (SOD) Module: Removal
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Using a diagnostic scan tool, begin the PMI process for the SOD-L or SOD-R following the on-screen instructions.
NOTE:
If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
- 2.
Remove the rear bumper cover. Refer to Bumpers .
- 3.

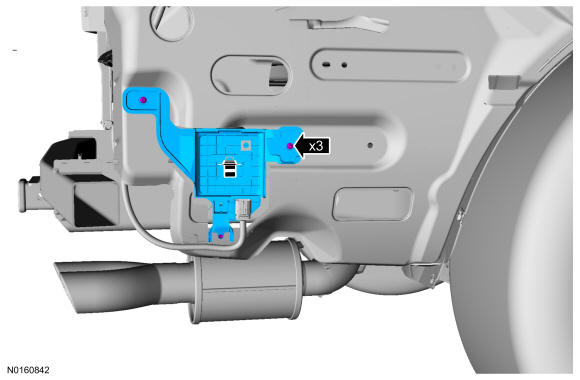

Remove the SOD-L or SOD-R.- 1.

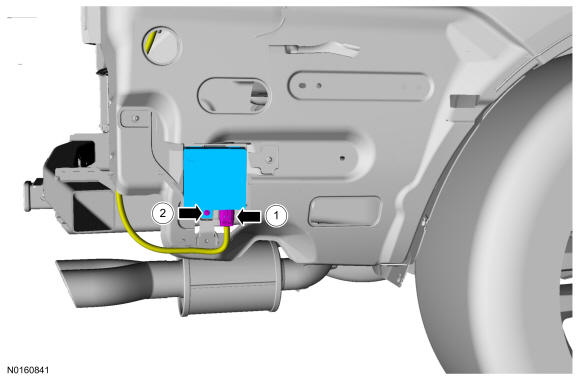

Disconnect the electrical connector.
- 2.
Remove the SOD-L or SOD-R bolt.
- 1.
