Plenum Chamber: Removal

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the heater core and evaporator core housing. Refer to Heater Core And Evaporator Core Housing .

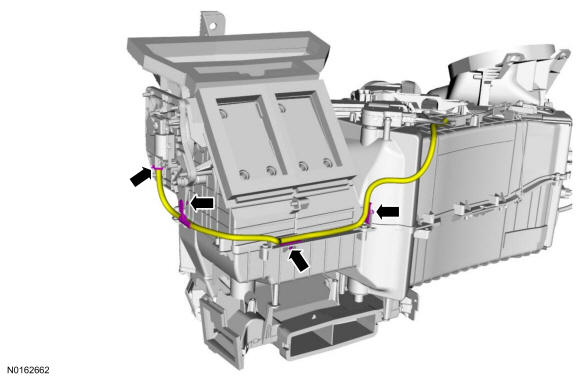

2.

Disconnect the mode door actuator electrical connector and detach the wire harness retainers.

GFD31483

Courtesy of FORD MOTOR COMPANY

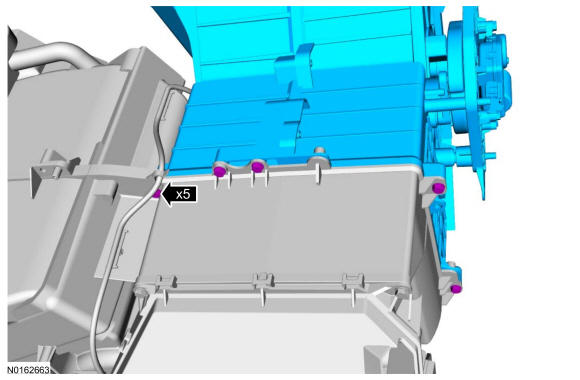

3.

Remove the plenum chamber screws.

GFD31484

Courtesy of FORD MOTOR COMPANY

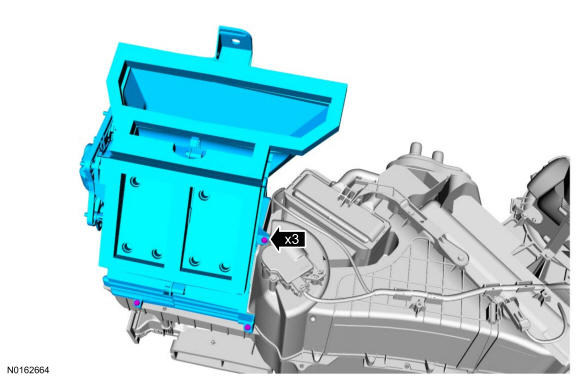

4.

Remove the plenum chamber screws and remove the plenum chamber.

GFD31485

Courtesy of FORD MOTOR COMPANY
