Head Restraint Guide Sleeve: Removal

NOTE: Typical head restraint guide sleeve shown, others similar.

1. 1.

   Depress the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY

NOTE: Follow the unique instructions or graphic for this step in the installation
NOTE: When a head restraint guide sleeve has been removed from a seat, a new head restraint guide sleeve must be installed.
1. 2.

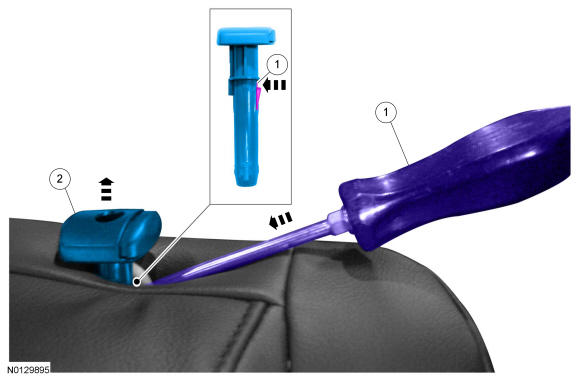

   Remove the head restraint guide sleeve in the following sequence:

   1. 1.

      Using the screwdriver, press the head restraint guide sleeve retaining tab inward approximately 5 mm (0.2 in).

   1. 2.

      While pressing the head restraint guide sleeve retaining tab inward, pull upward on the head restraint guide sleeve and remove it from the backrest frame crossmember.

Courtesy of FORD MOTOR COMPANY
