Seat - Second Row, 20 Percent: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.

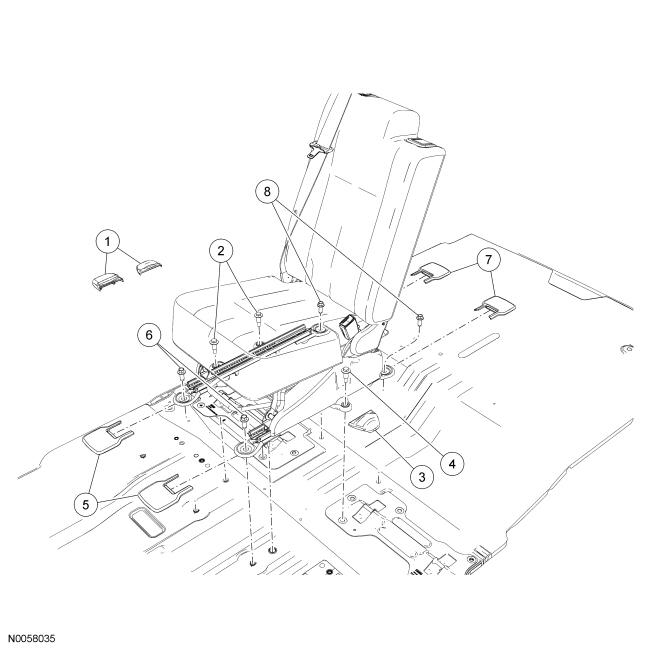

| Item | Part Number | Description |
|---|---|---|
| 1 | Right side seat-to-floor bolt covers (2 required) | |
| 2 | Right side seat-to-floor bolts (2 required) | |
| 3 | Left side seat-to-floor bolt cover | |
| 4 | Left side seat-to-floor bolt | |
| 5 | Seat-to-floor front bolt covers (2 required) | |
| 6 | Seat-to-floor front bolts (2 required) | |
| 7 | Seat-to-floor rear bolt covers (2 required) | |
| 8 | Seat-to-floor rear bolts (LH/RH) | |
