Blower Motor Speed Control: Removal
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

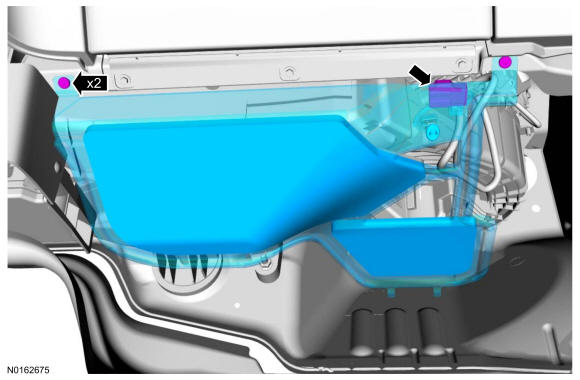

Remove the passenger side lower instrument panel insulator.- Disconnect the ambient lighting electrical connector (if equipped).
- Remove the passenger side lower instrument panel insulator pin-type retainers and remove the insulator.
- 2.

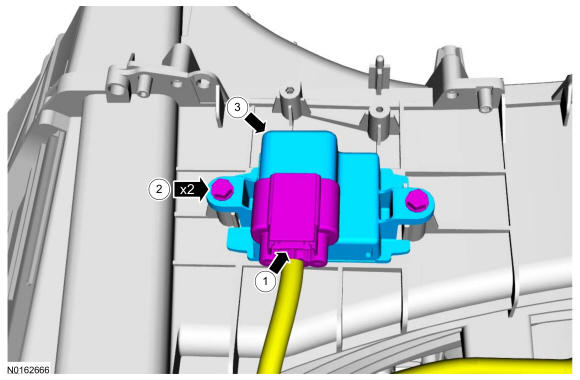

Remove the blower motor speed control.- 1.
Disconnect the blower motor speed control electrical connector.
- 2.
Remove the blower motor speed control retainers.
- 3.
Remove the blower motor speed control.
