Powertrain/Drivetrain Mount Neutralizing

Adjustment

1. Refer to: Jacking and Lifting - Overview
2. Refer to: Battery Tray

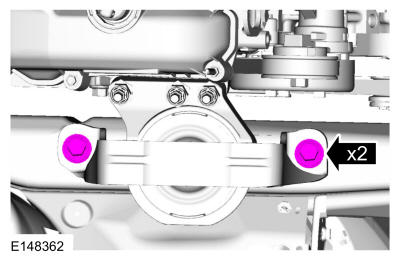

3. Loosen, but do not remove, the 2 engine mount bolts.

   Courtesy of FORD MOTOR COMPANY

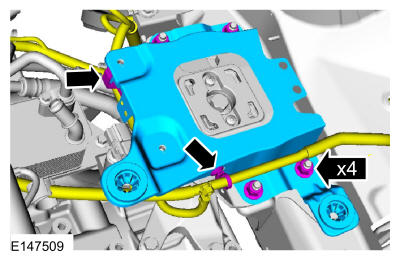

4. Courtesy of FORD MOTOR COMPANY

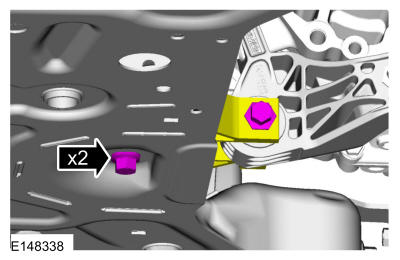

5. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

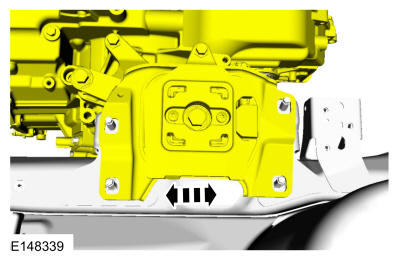

6. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

   Center the engine and transmission mounts to the center of the slots in the mount brackets.

   Courtesy of FORD MOTOR COMPANY

7. Torque: 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Rock the powertrain/drivetrain assembly forward and rearward to ensure the roll restrictor is not bound.

   Torque: 92 lb.ft (125 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Refer to: Battery Tray
11. Test the system for normal operation.
